Toyota COROLLA 后组合灯 — Figure 8111

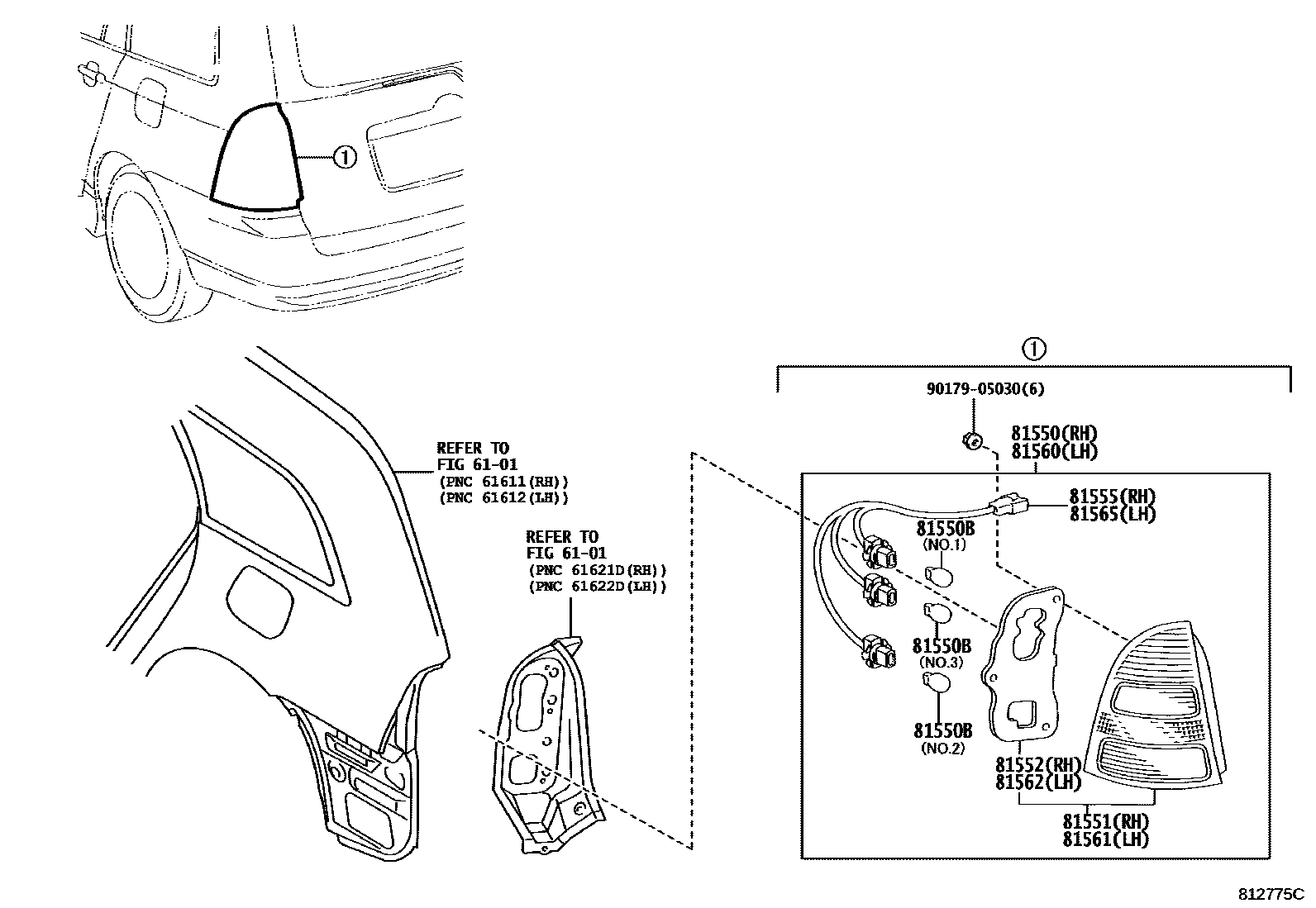

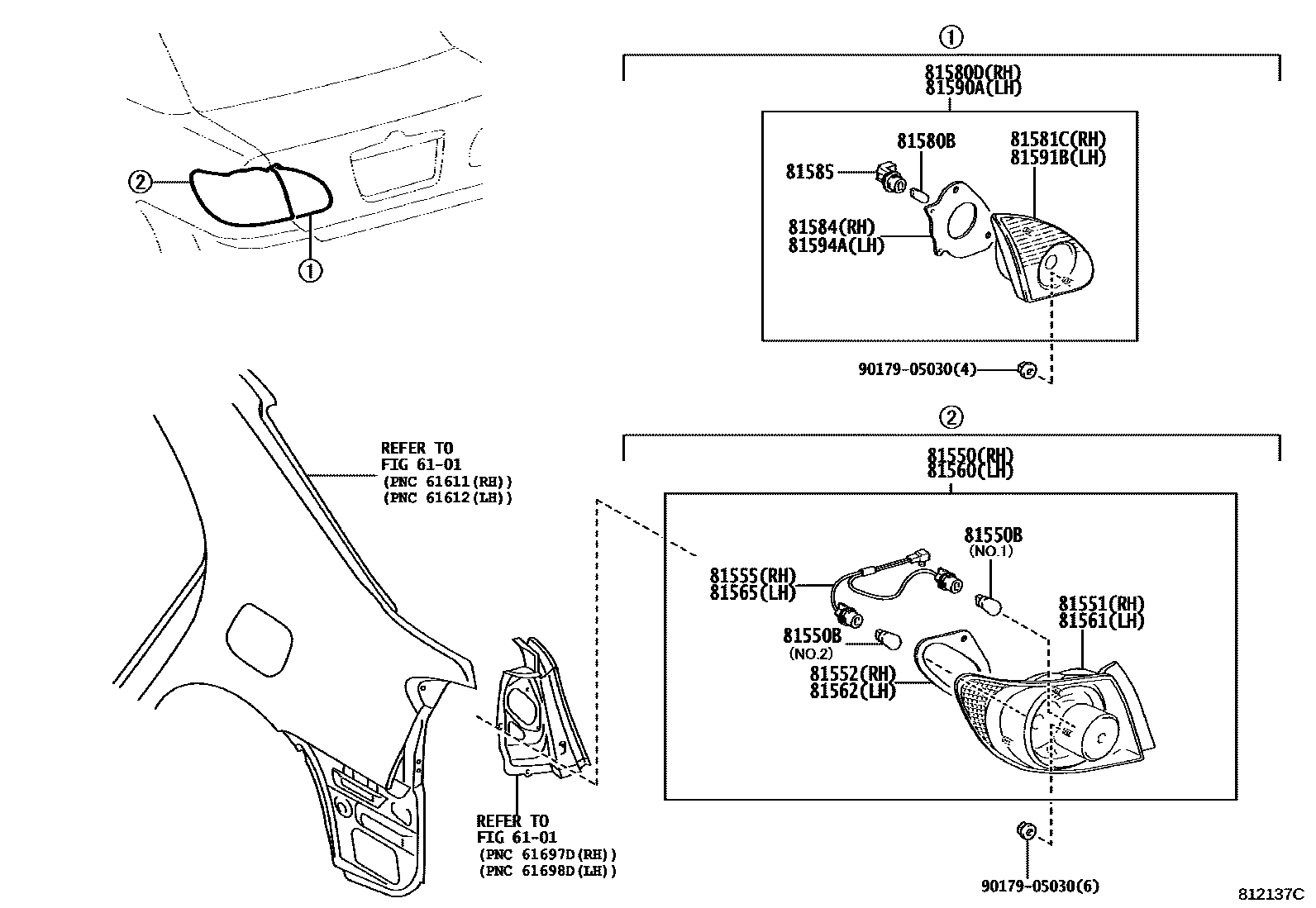

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-02220 · 81550-02340 · 81550-13670 |
| 81550B | Bulb (for rear combination lights) | 90981-13043 · 90981-13044 · 90981-15009 · 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-02220 · 81551-02340 · 81551-13670 |
| 81552 | Right rear combination lamp shade gasket | 81552-02220 · 81552-13570 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13571 · 90069-81033 |
| 81560 | Left rear combination light assembly | 81560-02220 · 81560-02340 · 81560-13630 |
| 81561 | Left rear combination lamp shade | 81561-02220 · 81561-02340 · 81561-13630 |
| 81562 | Left rear combination lamp shade gasket | 81552-02220 · 81552-13570 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13571 · 90069-81033 |
| 81580B | Bulb (for rear light) | 90981-11059 · 90981-13043 |
| 81580D | Right rear light assembly | 81580-02040 |
| 81581C | Right rear light lampshade and lamp body | 81581-02040 |
| 81584 | Right rear light seal | 81584-02040 |
| 81585 | Rear lamp holder and wiring harness | 81585-02040 · 81595-02060 |
| 81590A | Left rear light assembly | 81590-02050 · 81590-02060 |
| 81591B | Left rear light shade and body | 81591-02050 · 81591-02060 |
| 81594A | Left rear light gasket | 81584-02040 |
