Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 6 PNC and OE references.

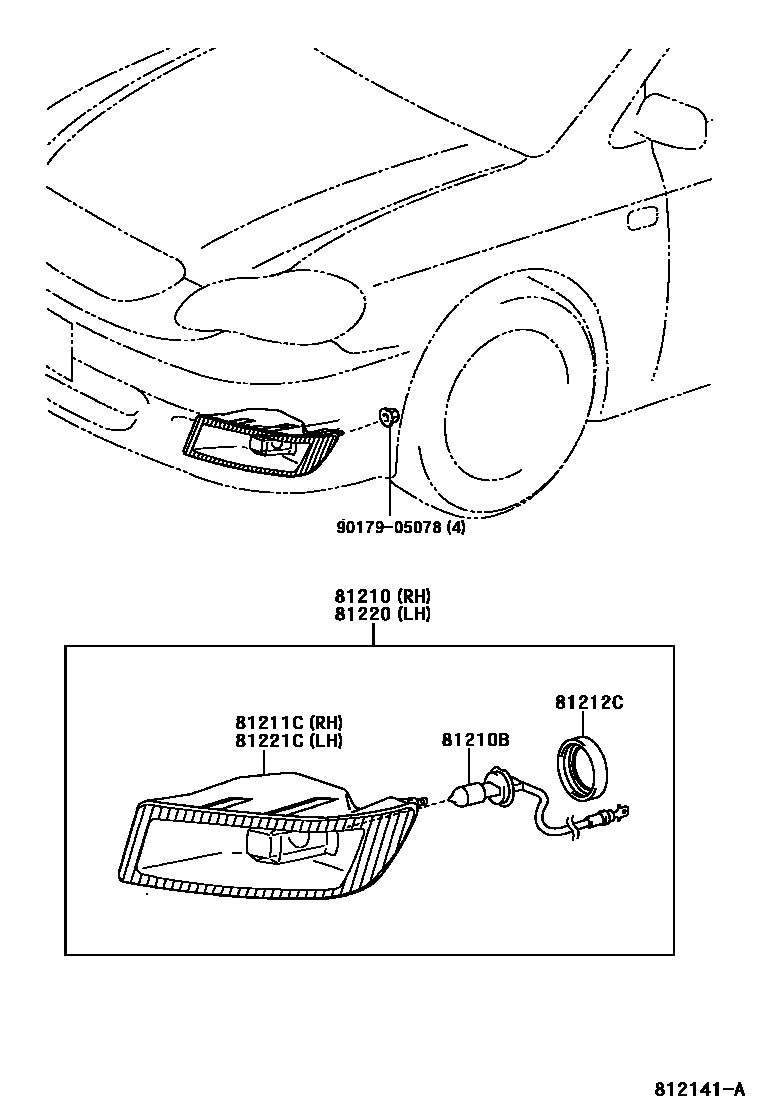

Toyota COROLLA Fog Lamp EPC diagram — 812141A
Fog Lamp — 812141A (200205 – 200705)

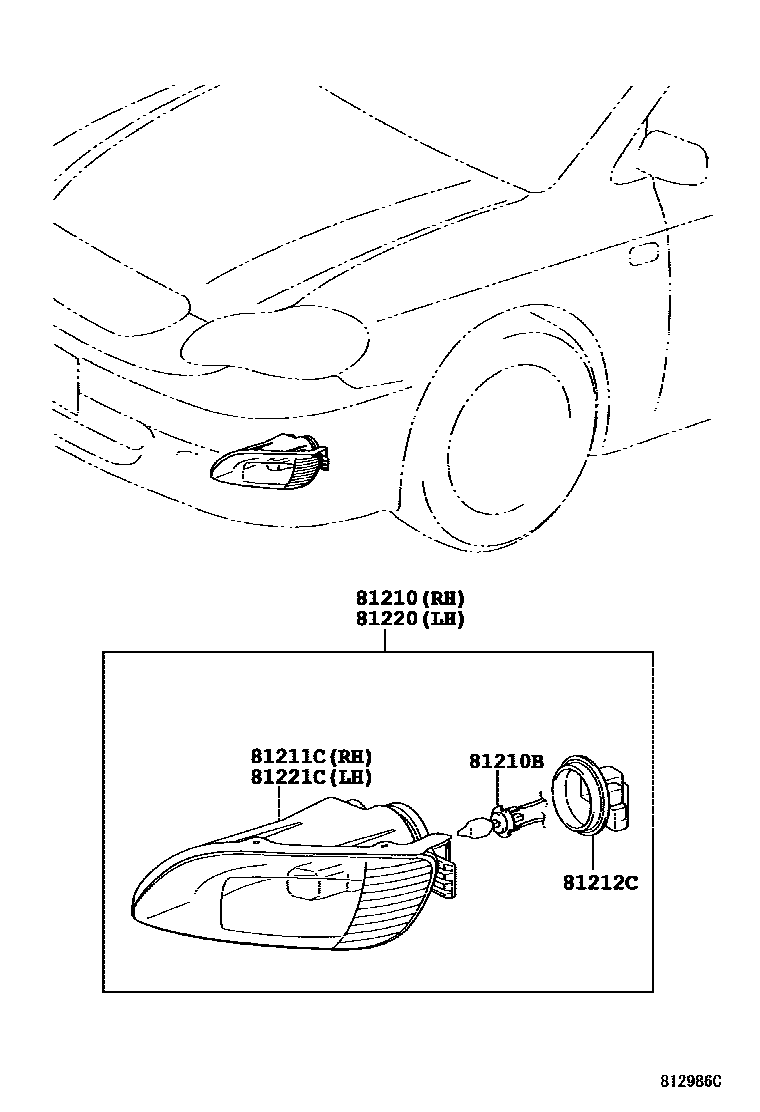

Toyota COROLLA Fog Lamp EPC diagram — 812986C
Fog Lamp — 812986C (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210Fog light assembly81210-0B050 · 81210-20450
81210Bfog light bulb90981-13018 · 90981-13071
81211CRight fog light assembly81211-0B050 · 81211-20450
81212Cfog light cover90075-66001
81220Left fog light assembly81220-0B040 · 81220-20440
81221CLeft fog light assembly81221-0B040 · 81221-20440
