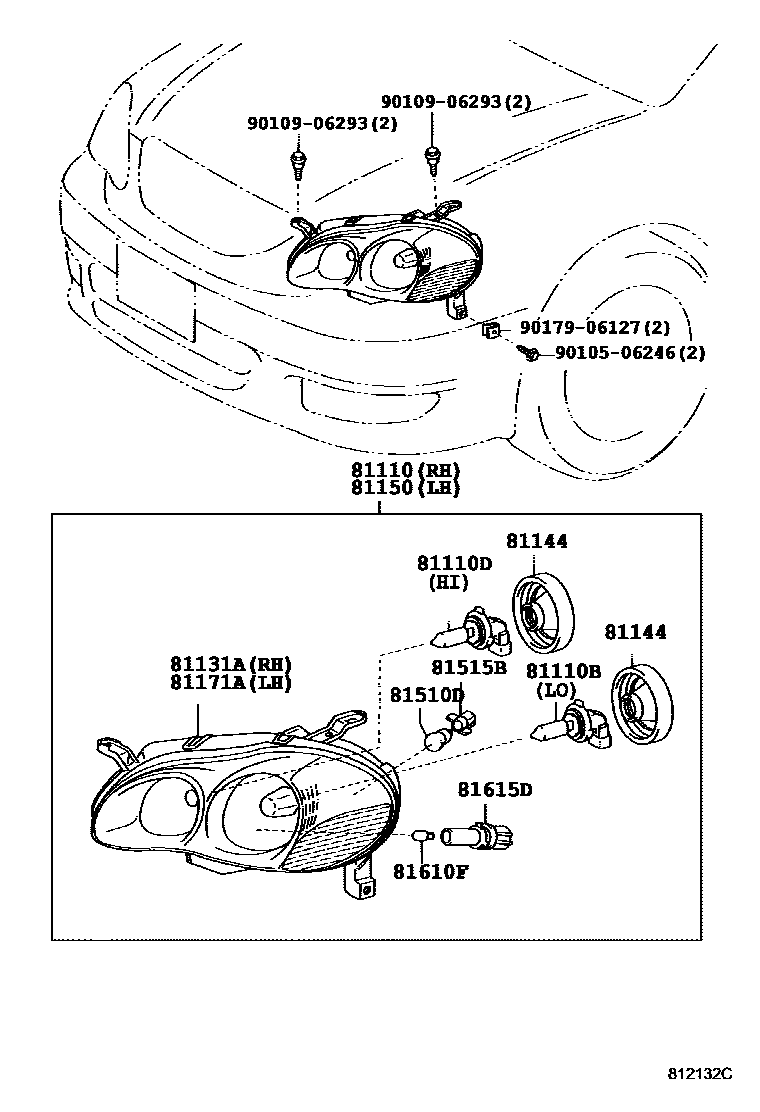

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02220 · 81110-02350 · 81110-02410 · 81110-02660 |
| 81110B | Bulb (for headlight No. 1) | 90981-13047 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 |
| 81131A | Right headlight assembly | 81130-02220 · 81130-02350 · 81130-02410 · 81130-02661 |
| 81144 | No. 1 headlight cover | 90069-81031 |
| 81150 | Left headlight assembly | 81150-02230 · 81150-02340 · 81150-02400 · 81150-02660 |
| 81171A | Left headlight assembly | 81170-02230 · 81170-02340 · 81170-02400 · 81170-02661 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15009 |
| 81515B | Front turn signal lamp holder | 90069-81029 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90069-81030 |
