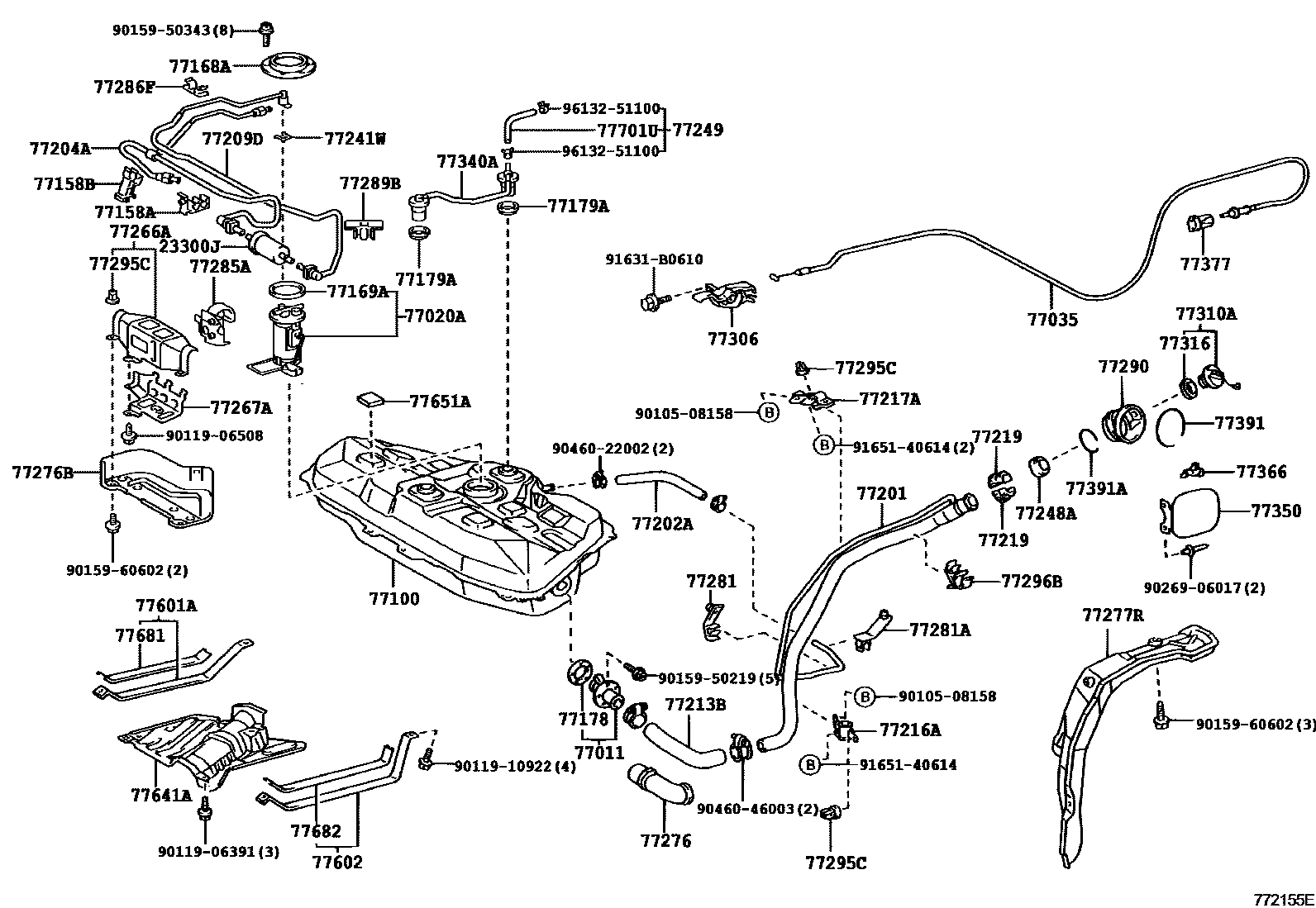

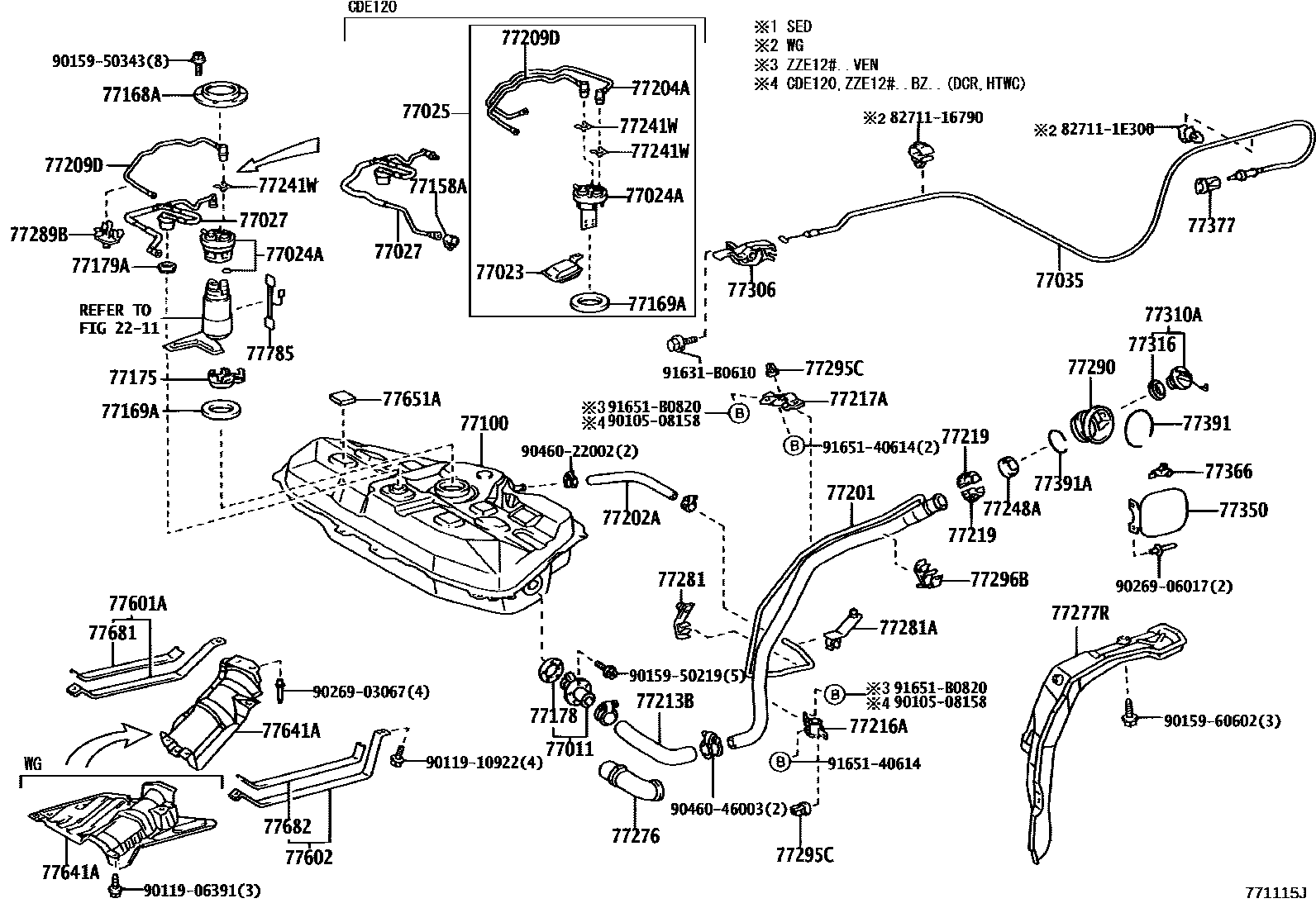

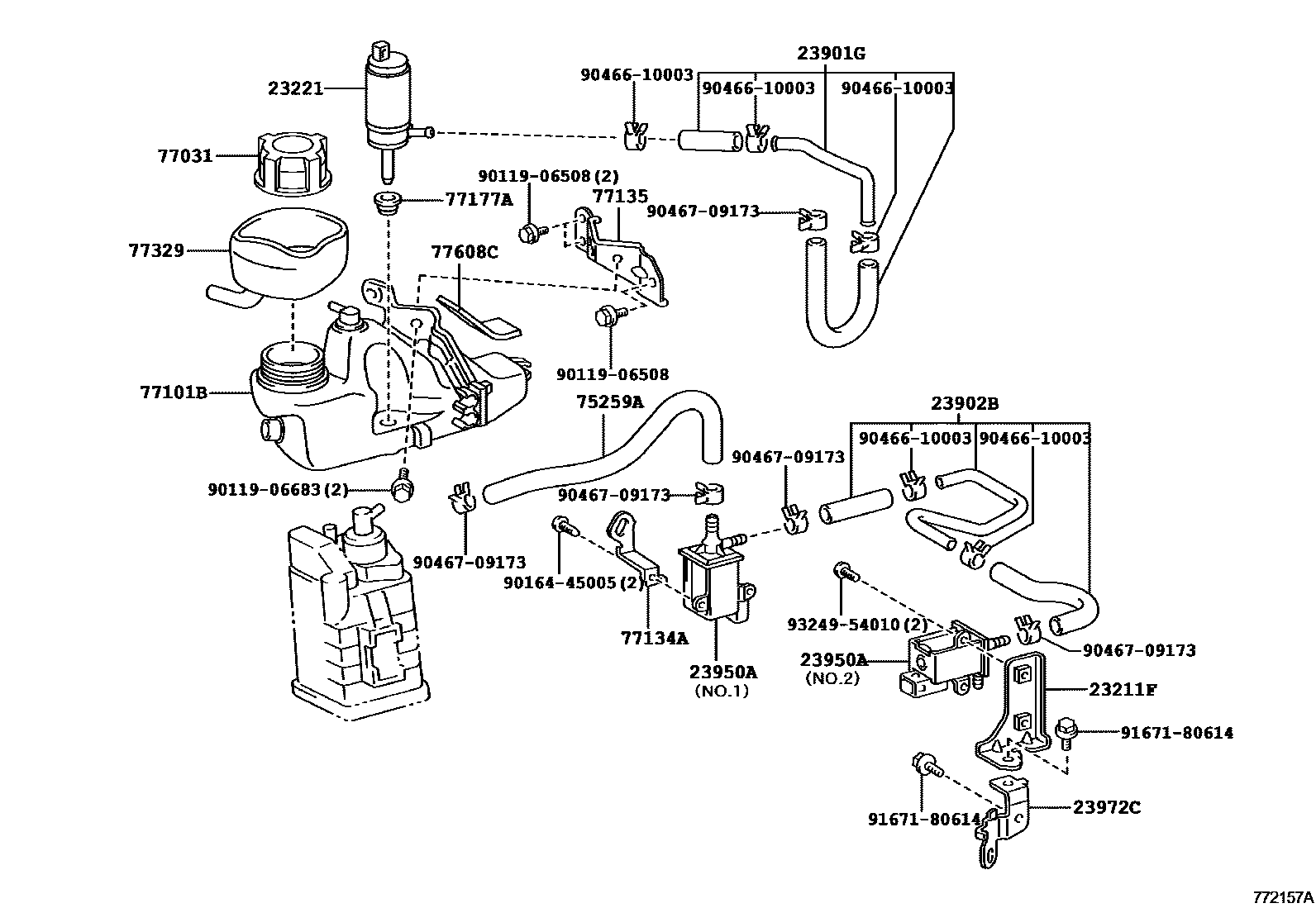

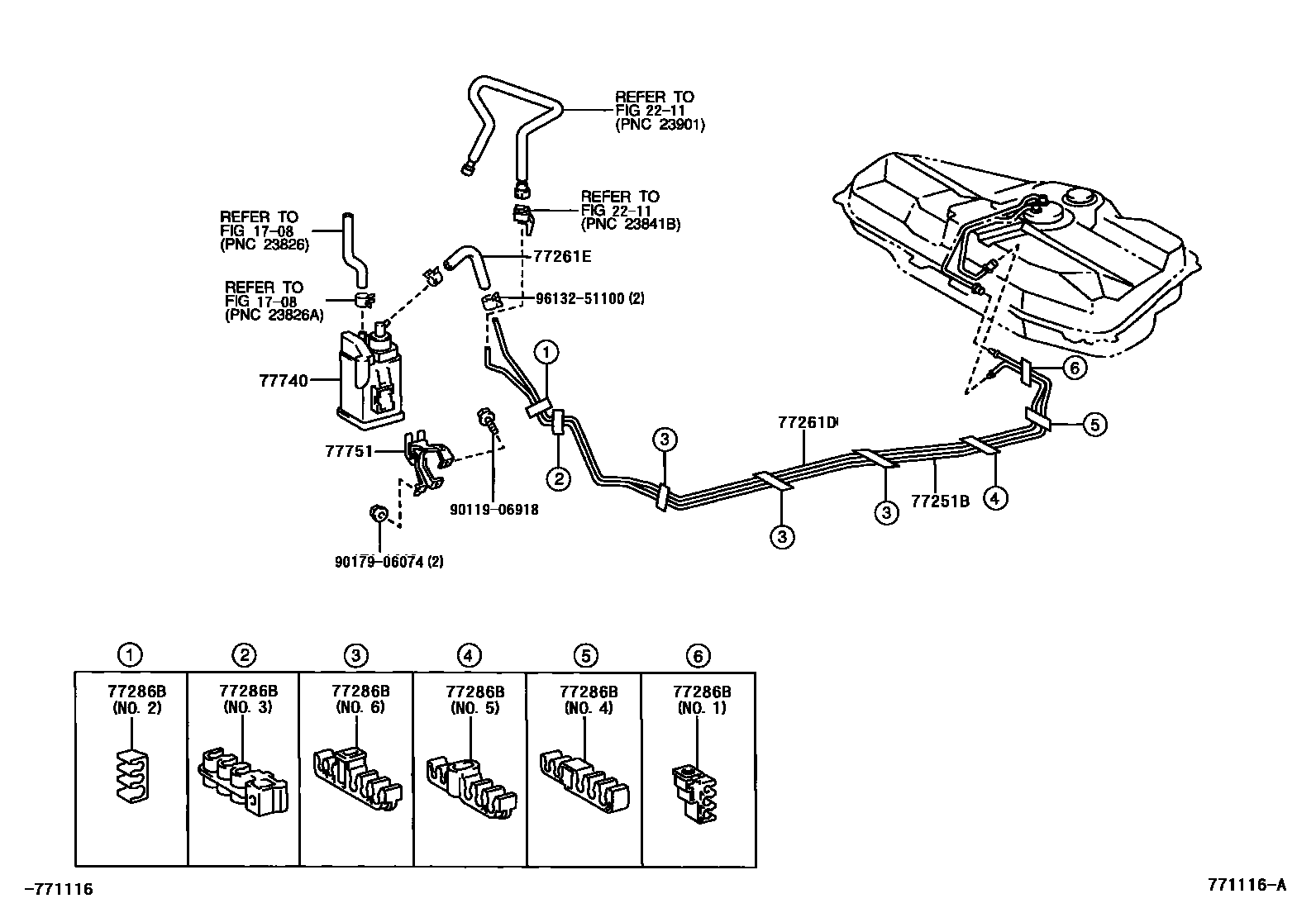

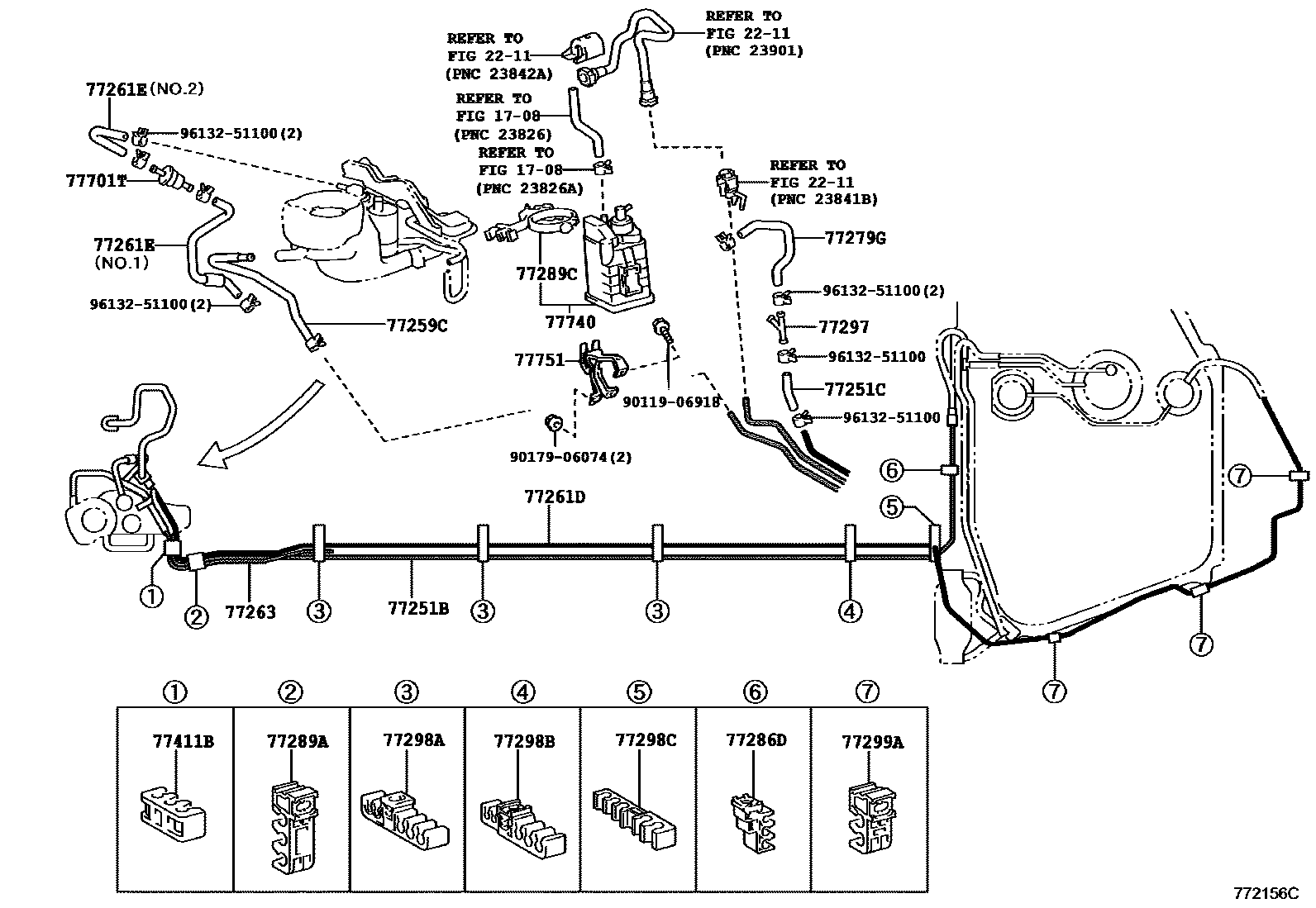

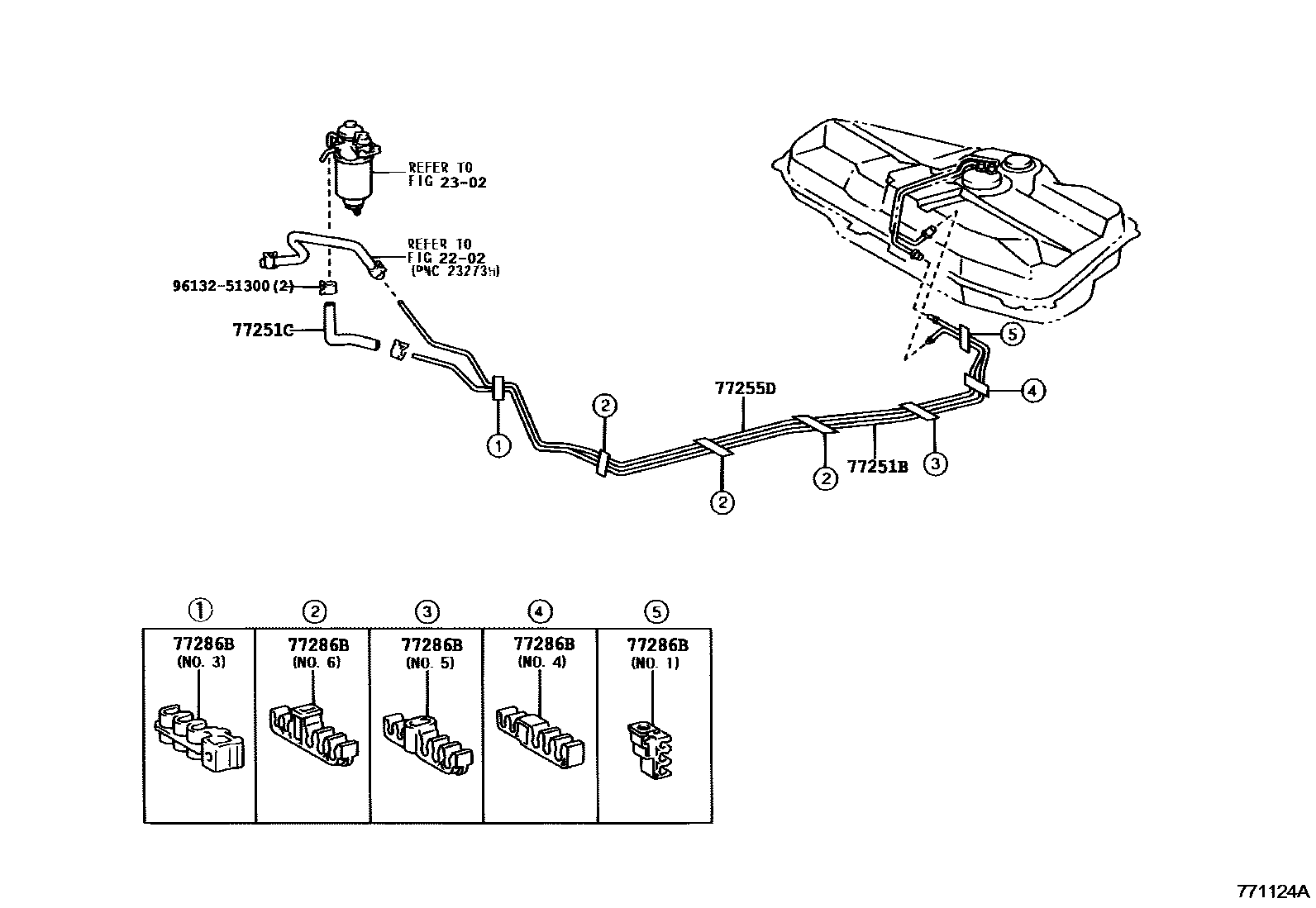

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 6 images and 91 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23211F | Bracket | 23211-22010 |
| 23221 | fuel pump | 23221-0D140 |
| 23300J | fuel filter assembly | 23300-0D100 |
| 23901G | Fuel pipe sub-assembly | 23901-0D050 |
| 23902B | No. 2 fuel pipe sub-assembly | 23902-0D010 |
| 23950A | Solenoid valve assembly | 23950-0D010 · 23950-0D020 |
| 23972C | Filter and solenoid valve bracket | 23972-22010 |
| 75259A | fuel hose | 77259-02100 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-02040 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02300 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-32040 |
| 77024A | Fuel absorber sub-assembly | 77024-12010 · 77024-12020 |
| 77025 | Rear main fuel pipe and fuel return pipe sub-assembly | 77010-12340 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-12040 · 77027-12050 |
| 77031 | Fuel tank cap assembly | 77310-02030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02140 · 77035-02170 |
| 77100 | fuel tank assembly | 77001-02160 · 77001-02170 · 77001-02230 · 77001-02400 · 77001-02470 |
| 77101B | Upper fuel tank sub-assembly | 77101-02190 · 77101-02310 |
| 77134A | No. 2 auxiliary fuel tank bracket | 77134-02010 |
| 77135 | One-way valve bracket | 77135-02020 |
| 77158A | Fuel tank suction pipe bracket | 77158-12030 · 77158-20040 |
| 77158B | No. 1 fuel tank suction pipe bracket | 77158-12060 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-47010 |
| 77177A | Check valve gasket | 77177-12040 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-0A010 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-02100 · 77201-02110 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13034 · 95313-13046 |
| 77204A | fuel tank return pipe | 77204-12100 · 77204-12140 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-12160 · 77209-12260 |
| 77213B | Fuel tank to filler pipe hose | 77213-32070 · 77213-32090 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-32060 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32050 |
| 77219 | Fuel tank filler pipe cap | 77219-20070 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60320 |
| 77248A | Fuel tank filler pipe cap holder | 77248-20030 |
| 77249 | fuel drain hose | 77249-32010 |
| 77251B | main fuel pipe | 77251-02420 · 77251-12660 · 77251-13180 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-12270 · 77259-12360 |
| 77255D | fuel return pipe | 77255-13150 |
| 77259C | fuel hose | 77019-12570 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02350 · 77261-12460 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77249-12100 · 77249-12110 · 95337-06013 |
| 77263 | No. 3 fuel tank to carbon canister pipe | 77263-02040 |
| 77266A | No. 1 fuel line protection device | 77266-12140 |
| 77267A | No. 2 fuel pipe protection device | 77267-12140 |
| 77276 | Fuel hose protector | 77276-12050 |
| 77276B | Fuel hose protector | 77276-12100 |
| 77277R | Fuel tank filler pipe protection device | 77277-12170 |
| 77279G | No. 2 fuel hose | 77279-12180 |
| 77281 | No. 1 main fuel pipe bracket | 77281-32040 |
| 77281A | Fuel filler pipe clamp | 77281-12070 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-12110 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-12060 · 77286-47020 · 77289-20060 · 77298-12060 · 77298-12100 · 77298-20080 |
| 77286D | No. 2 fuel pipe clamp | 77286-12060 |
| 77286F | No. 2 fuel pipe clamp | 77286-32070 |
| 77289A | No. 3 fuel pipe clamp with retaining ring | 77289-68020 |
| 77289B | No. 3 fuel pipe clamp | 77289-12030 · 77289-12050 |
| 77289C | No. 4 fuel pipe clamp | 77289-12060 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12150 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-12030 |
| 77297 | fuel line connector | 77297-60030 |
| 77298A | No. 4 fuel pipe clamp | 77298-68010 |
| 77298B | No. 4 fuel pipe clamp | 77298-68020 |
| 77298C | No. 4 fuel pipe clamp | 77298-68030 |
| 77299A | No. 5 fuel pipe clamp | 77299-32030 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12050 · 77306-13030 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-60010 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77329 | fuel tank cover | 77329-02010 |
| 77340A | Fuel shut-off valve assembly with fuel pipe | 77340-32010 |
| 77350 | Fuel filler cap assembly | 77350-12450 · 77350-13070 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-48020 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-12230 · 77601-12250 |
| 77602 | Fuel tank upper shell sub-assembly | 77602-12180 |
| 77608C | fuel tank gasket assembly | 77608-02020 |
| 77641A | No. 1 fuel tank protective shell | 77641-12160 · 77641-12170 |
| 77651A | No. 1 fuel tank liner | 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77681-34030 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77701T | Check valve (for main fuel tank) | 90917-10091 |
| 77740 | Carbon canister assembly | 77740-02110 · 77740-02111 · 77740-02150 · 77740-02210 · 77740-12690 · 77740-12710 |
| 77751 | Carbon canister base bracket | 77705-02030 · 77705-12110 · 77750-02030 · 77750-12170 |
| 77785 | fuel pump wiring harness | 77785-52020 |
