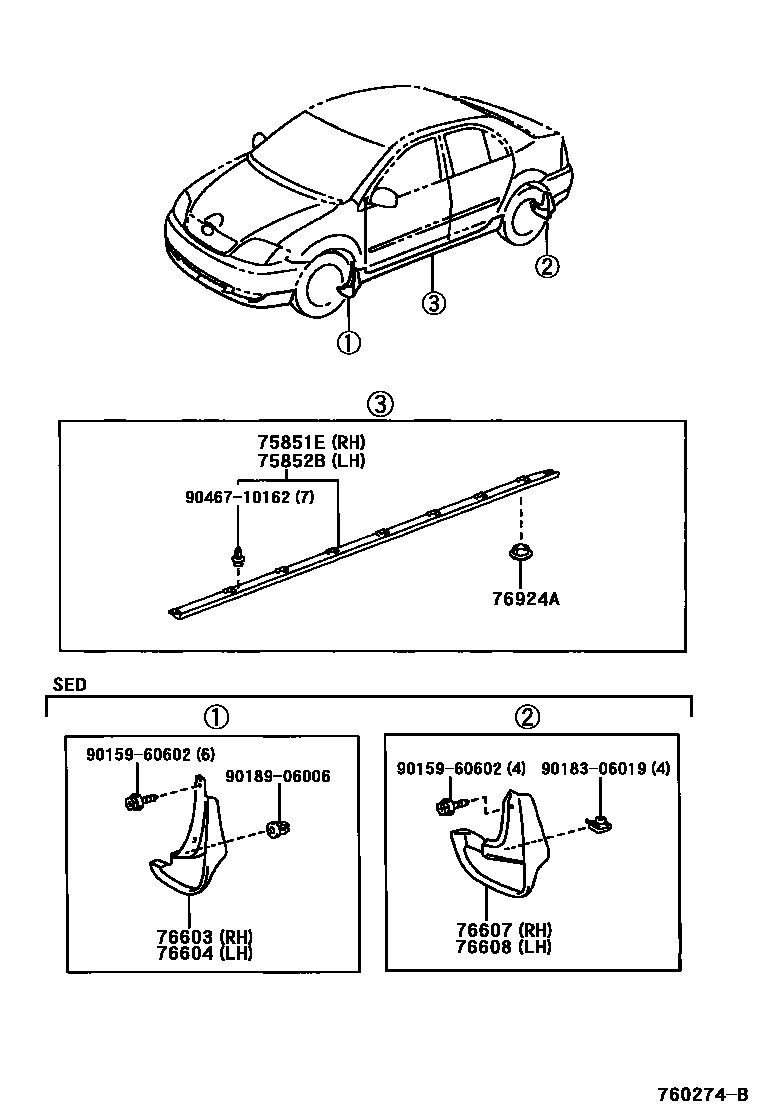

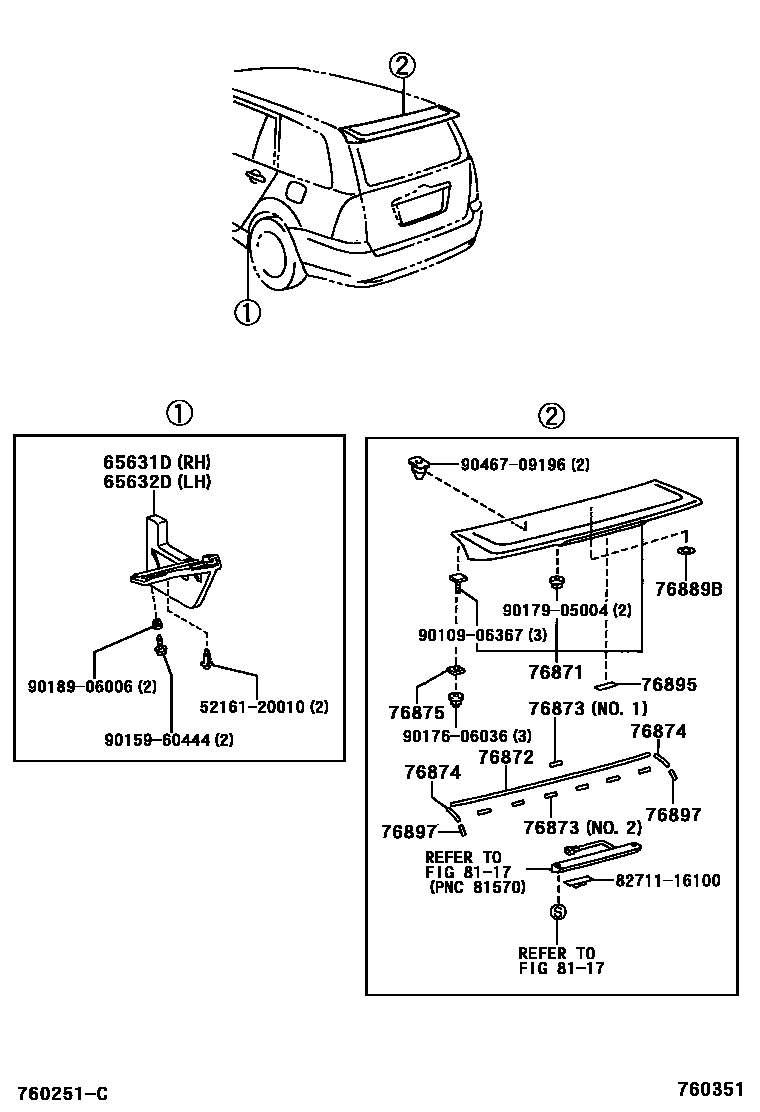

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-13020 |
| 65632D | Left rear wheel house front panel | 65632-13020 |
| 75851E | Right body door sill panel protection strip | 75851-02020 · 75851-12091 |
| 75852B | Left body door sill panel protection strip | 75852-02020 · 75852-12061 |
| 76603 | Right front fender fender sub-assembly | 76621-02100 · 76621-02902 |
| 76604 | Left front fender fender sub-assembly | 76622-02100 · 76622-02902 |
| 76607 | Right rear side fender sub-assembly | 76625-02100 · 76625-02110 · 76625-02901 |
| 76608 | Left rear side fender sub-assembly | 76626-02100 · 76626-02110 · 76626-02901 |
| 76871 | rear spoiler | 76871-13080 · 76871-13907 |
| 76872 | No. 1 rear spoiler protective strip | 76872-02030 · 76872-13050 |
| 76873 | No. 2 rear spoiler protective strip | 76873-13040 · 76896-13040 · 76896-13050 |
| 76874 | No. 3 rear spoiler protective strip | 76874-02010 · 76874-13040 |
| 76875 | No. 4 rear spoiler protective strip | 76875-13040 |
| 76889B | No. 1 rear spoiler seal | 76889-13020 |
| 76895 | No. 5 rear spoiler protective strip | 76895-13020 |
| 76897 | Right rear spoiler protection strip | 76897-13030 |
| 76924A | No. 2 side fender fixings | 76924-12040 · 76924-52021 |
