Toyota COROLLA 后防护条 — Figure 7504

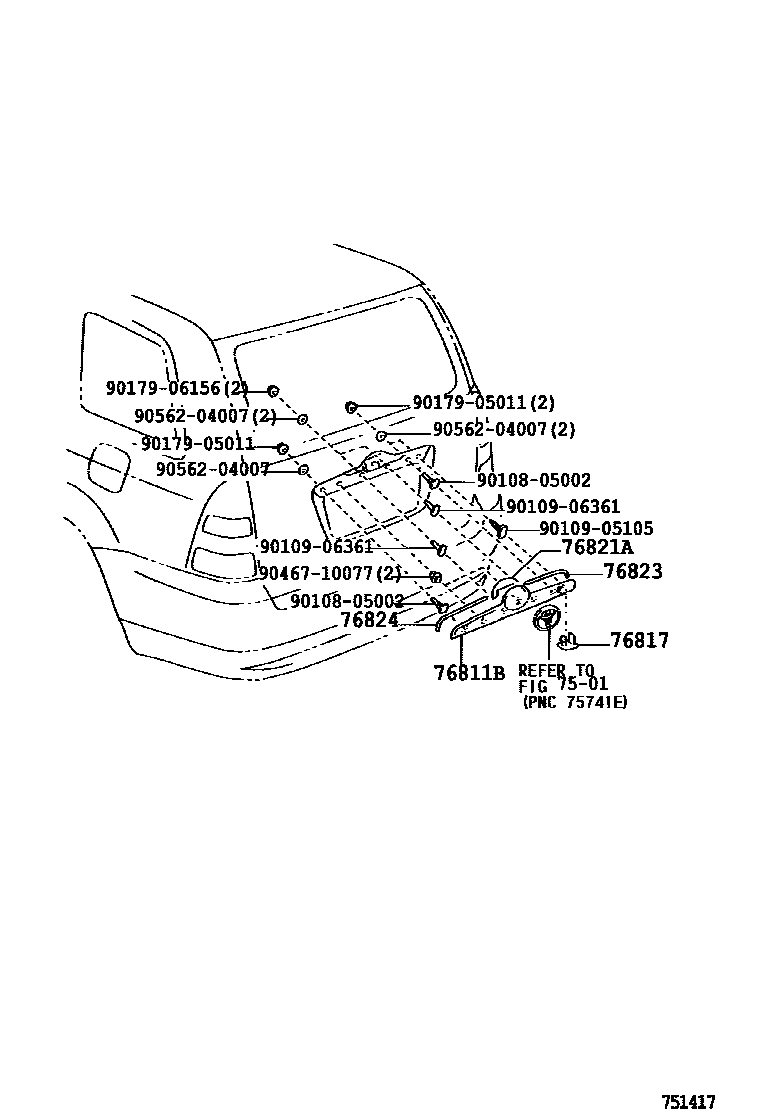

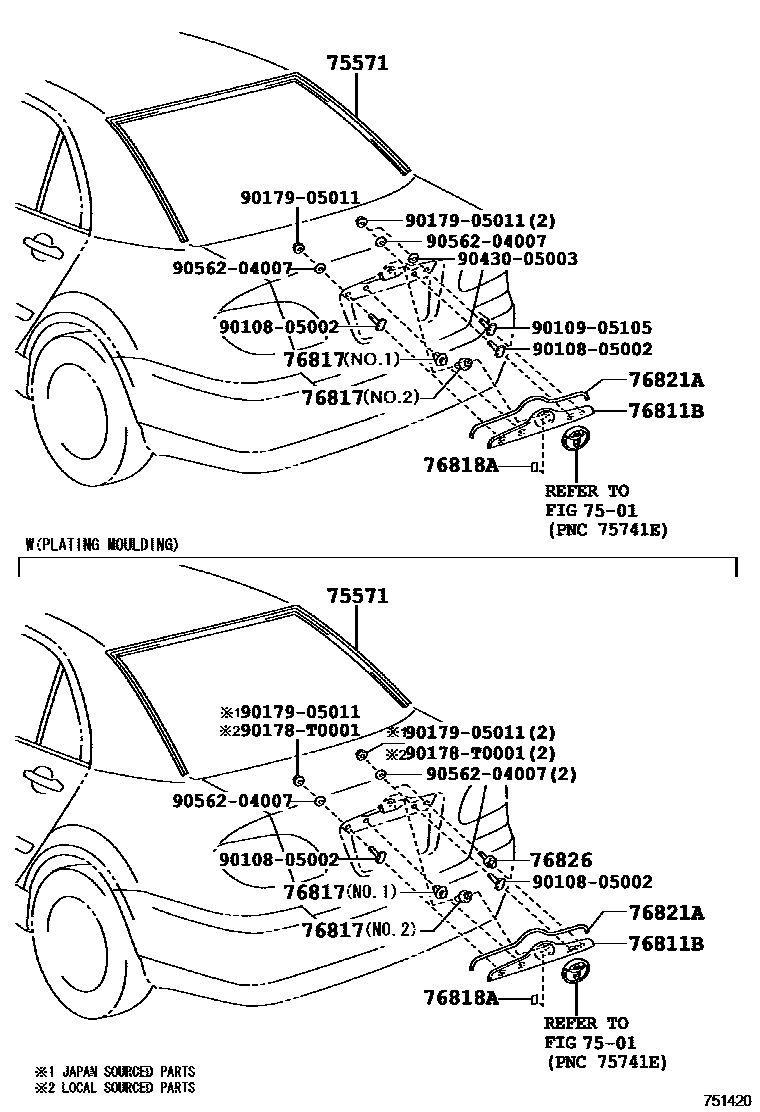

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 75571-02170 · 75571-12850 · 75571-12860 |
| 76811B | Trunk door exterior trim strip | 76811-02900 · 76811-02904 · 76811-12661 |
| 76817 | Rear door exterior decorative strip clip | 76817-02060 · 76817-12050 · 76817-12060 |
| 76818A | Luggage trim strip lining No. 1 | 76818-12160 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-12160 · 76821-13060 |
| 76823 | Rear door right side decorative strip protective cover | 76823-02010 · 76823-13010 |
| 76824 | Rear door left side decorative strip protective cover | 76823-13010 |
| 76826 | No. 1 rear door trim strip fixing | 76826-12030 |
