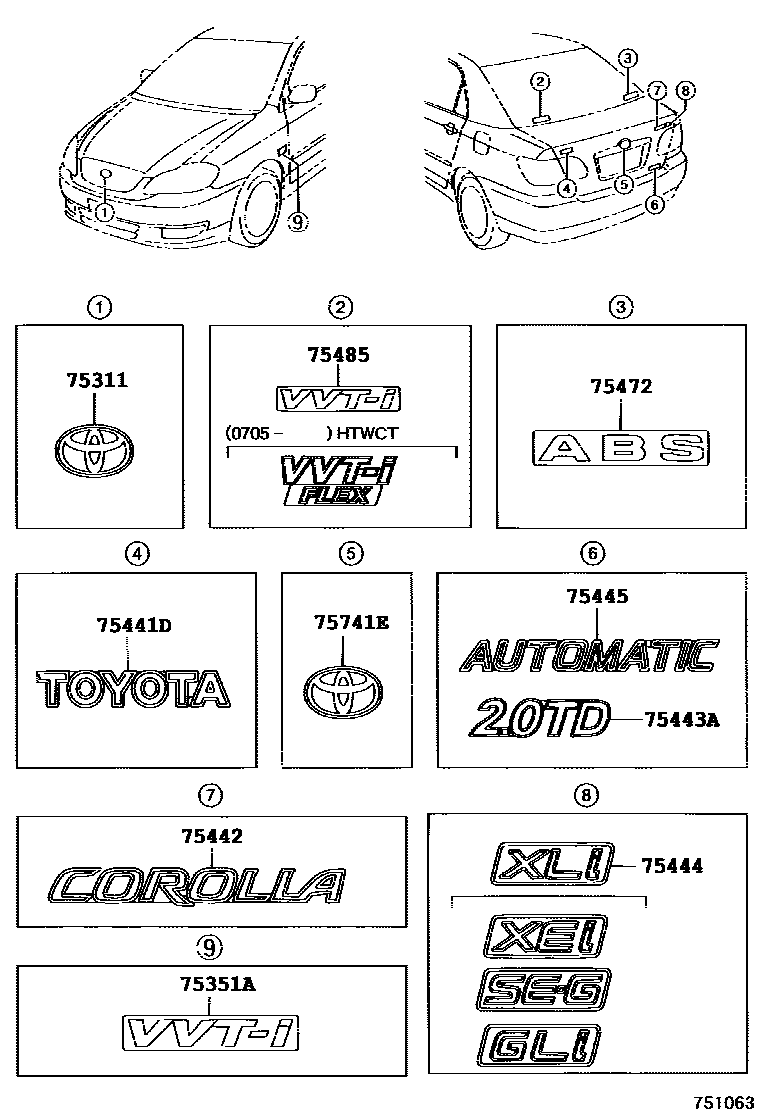

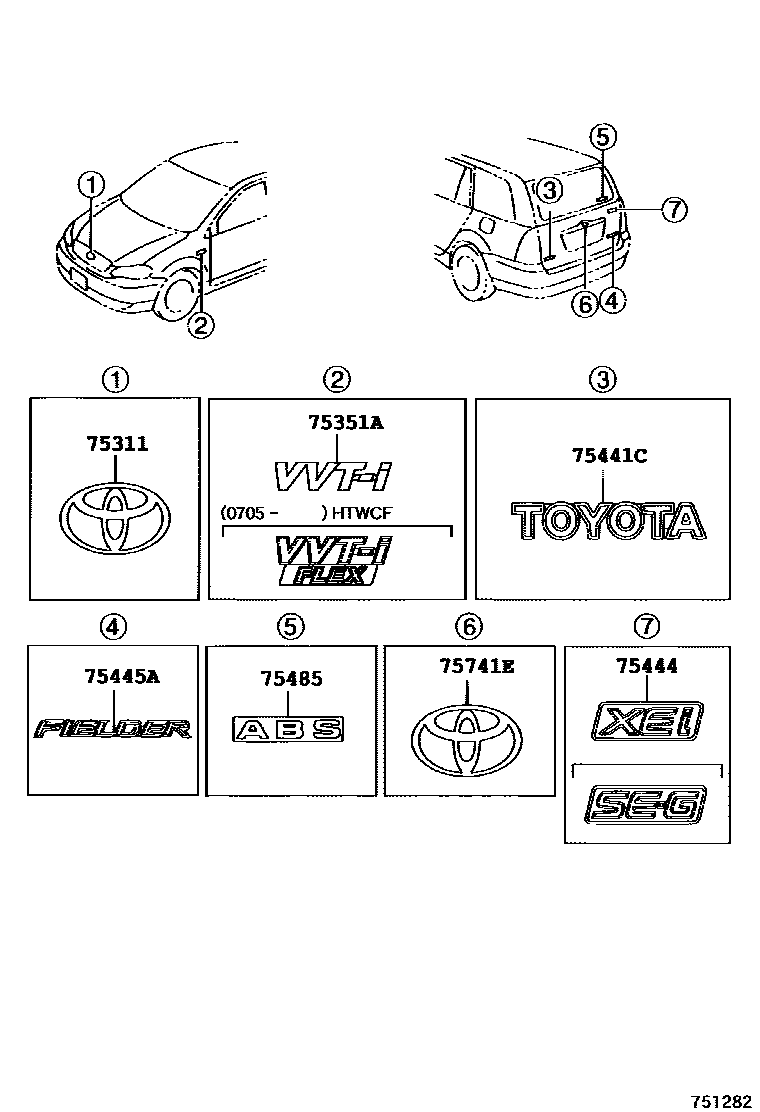

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-02090 |
| 75351A | Front fender label | 75351-02090 · 75351-12160 |
| 75441C | Back door nameplate | 75441-13230 |
| 75441D | Trunk door No. 1 name plate | 75441-02060 |
| 75442 | Trunk door number plate No. 2 | 75442-02070 |
| 75443A | Trunk door No. 3 nameplate | 75443-02060 |
| 75444 | Trunk door No. 4 nameplate | 75444-12B80 · 75444-12B90 · 75444-1A810 · 75444-1A820 · 75444-1A830 · 75444-1A840 |
| 75445 | Trunk door No. 5 name plate | 75444-02250 |
| 75445A | No. 5 nameplate on back door | 75445-13040 |
| 75472 | Rear window nameplate | 75485-12430 |
| 75485 | Back window nameplate | 75485-12380 · 75485-12430 |
| 75741E | logo | 90975-02009 · 90975-02011 |
