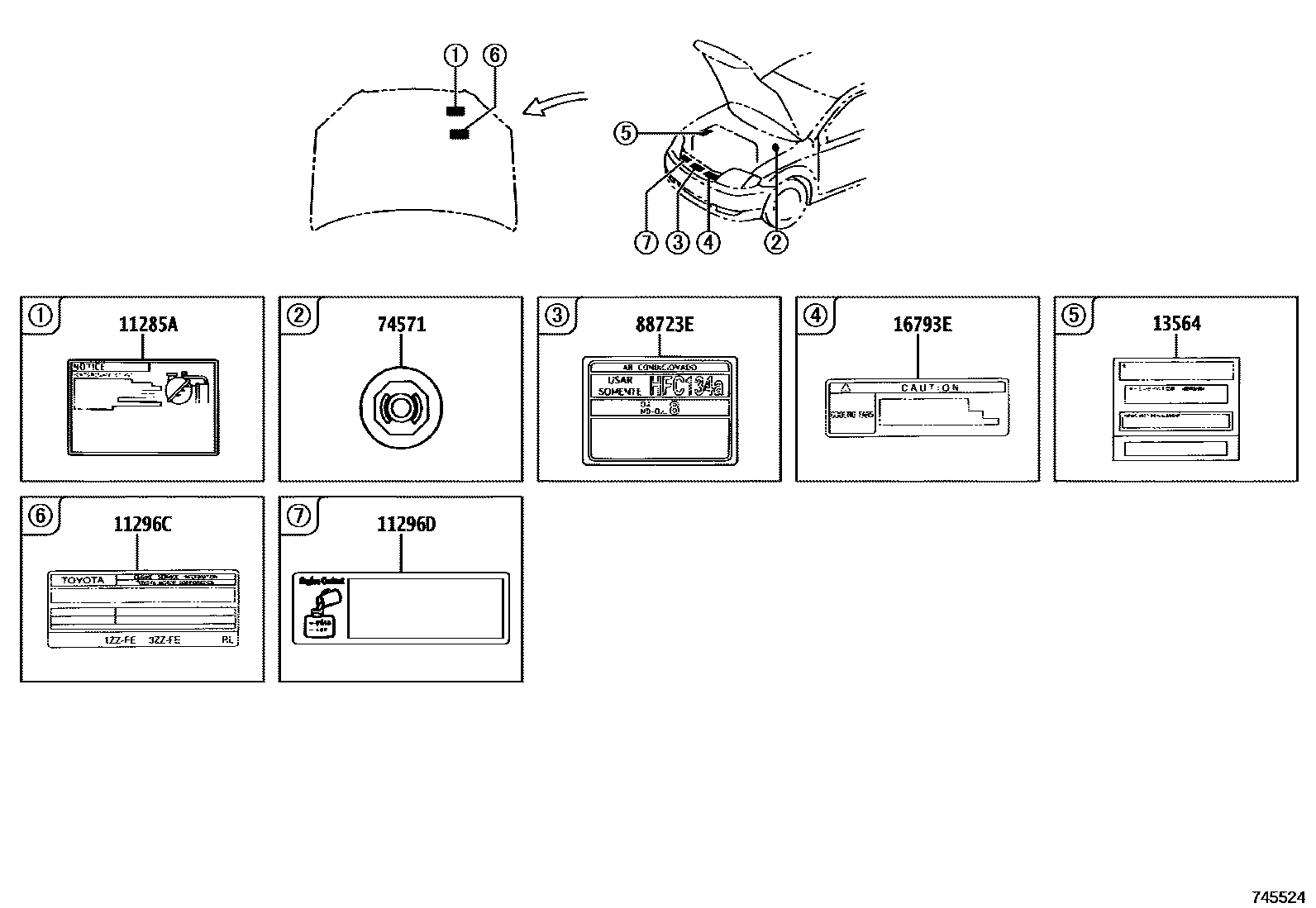

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0G020 |
| 11296C | Engine maintenance information label | 11296-0D010 · 11296-0D050 |
| 11296D | Engine maintenance information label | 11296-0D030 |
| 13564 | Timing belt replacement information label | 13564-10010 |
| 16793E | Cooling fan warning label | 16793-0G010 |
| 69339C | Child Restraint Information Label | 69339-02040 · 69339-12010 |
| 73794 | Rear seat belt caution label | 73794-02030 |
| 74541 | tire pressure warning plate | 42661-02290 · 42661-02300 |
| 74559A | Fuel warning plate | 74559-02040 · 74559-14030 · 74559-14050 |
| 74571 | Brake fluid warning plate | 47287-12010 |
| 87529B | Cabin filter information label | 87529-02050 |
| 88723E | Cooler maintenance warning label | 88723-02120 · 88723-02130 |
