Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 3 PNC and OE references.

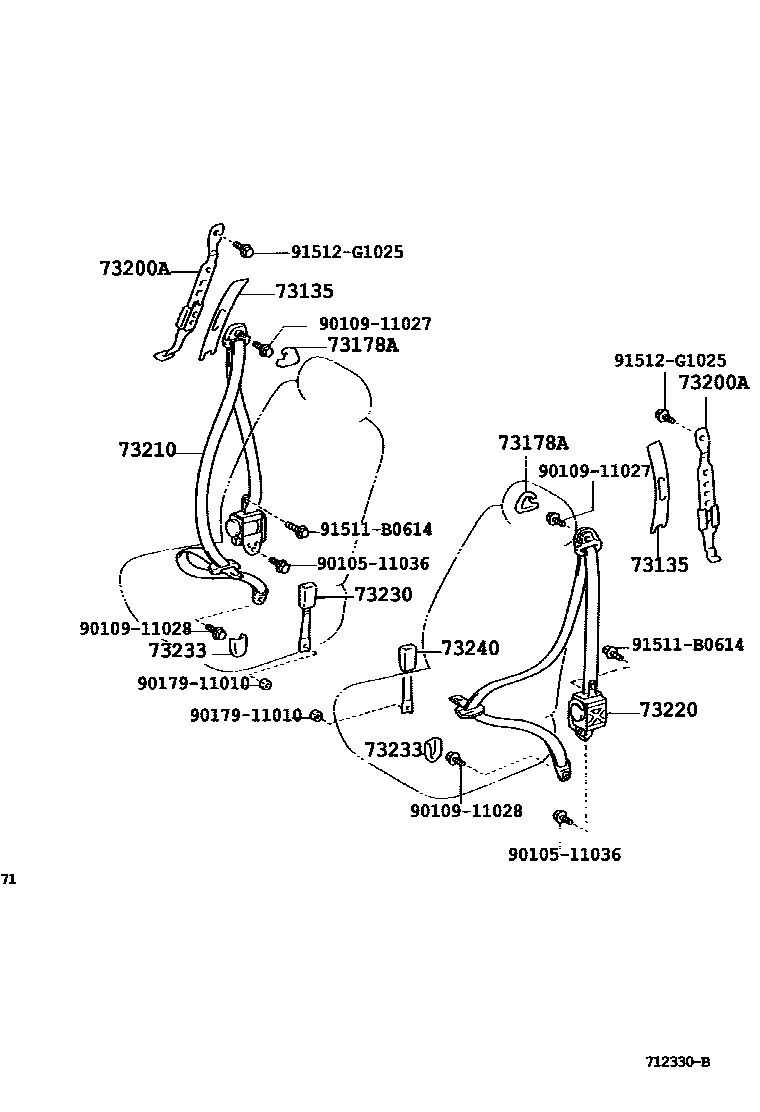

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 712330B
安全带和儿童保护座椅 — 712330B (200205 – 999999)

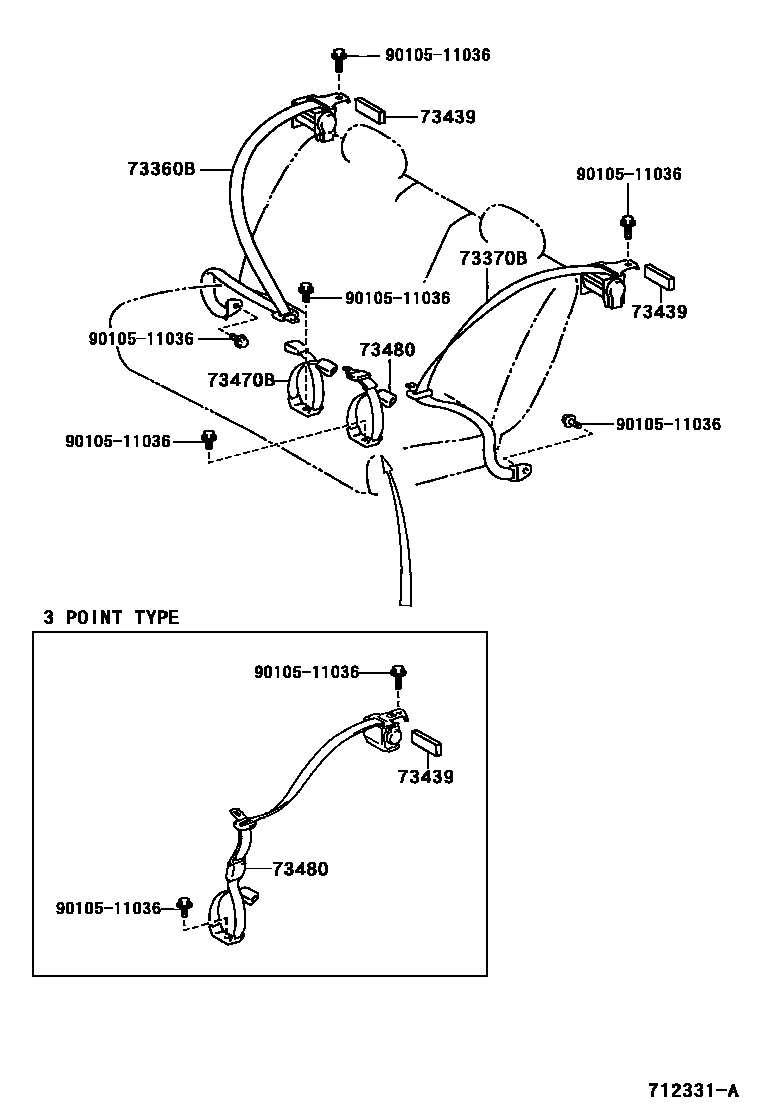

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 712331A
安全带和儿童保护座椅 — 712331A (200205 – 999999)

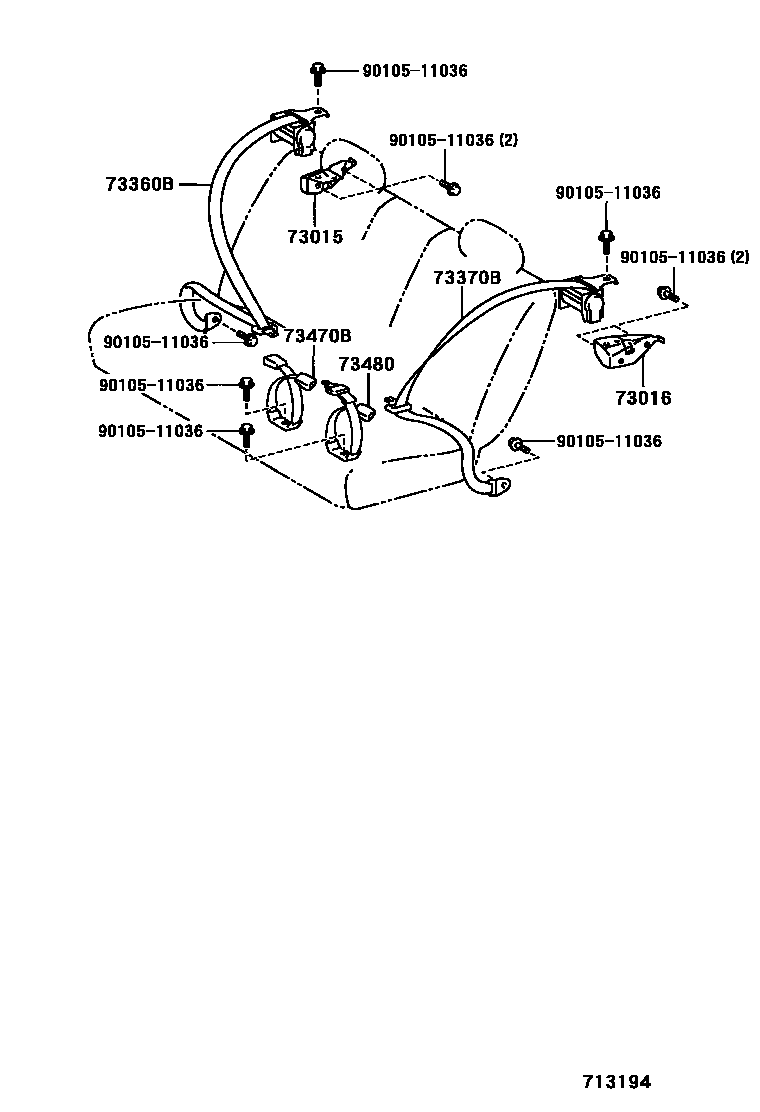

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 713194
安全带和儿童保护座椅 — 713194 (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
73015Right seat belt outer anchor bracket sub-assembly73015-13010
73016Left side seat belt outer anchor bracket sub-assembly73016-13010
73439Rear seat belt retractor cushion73439-12040
