Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

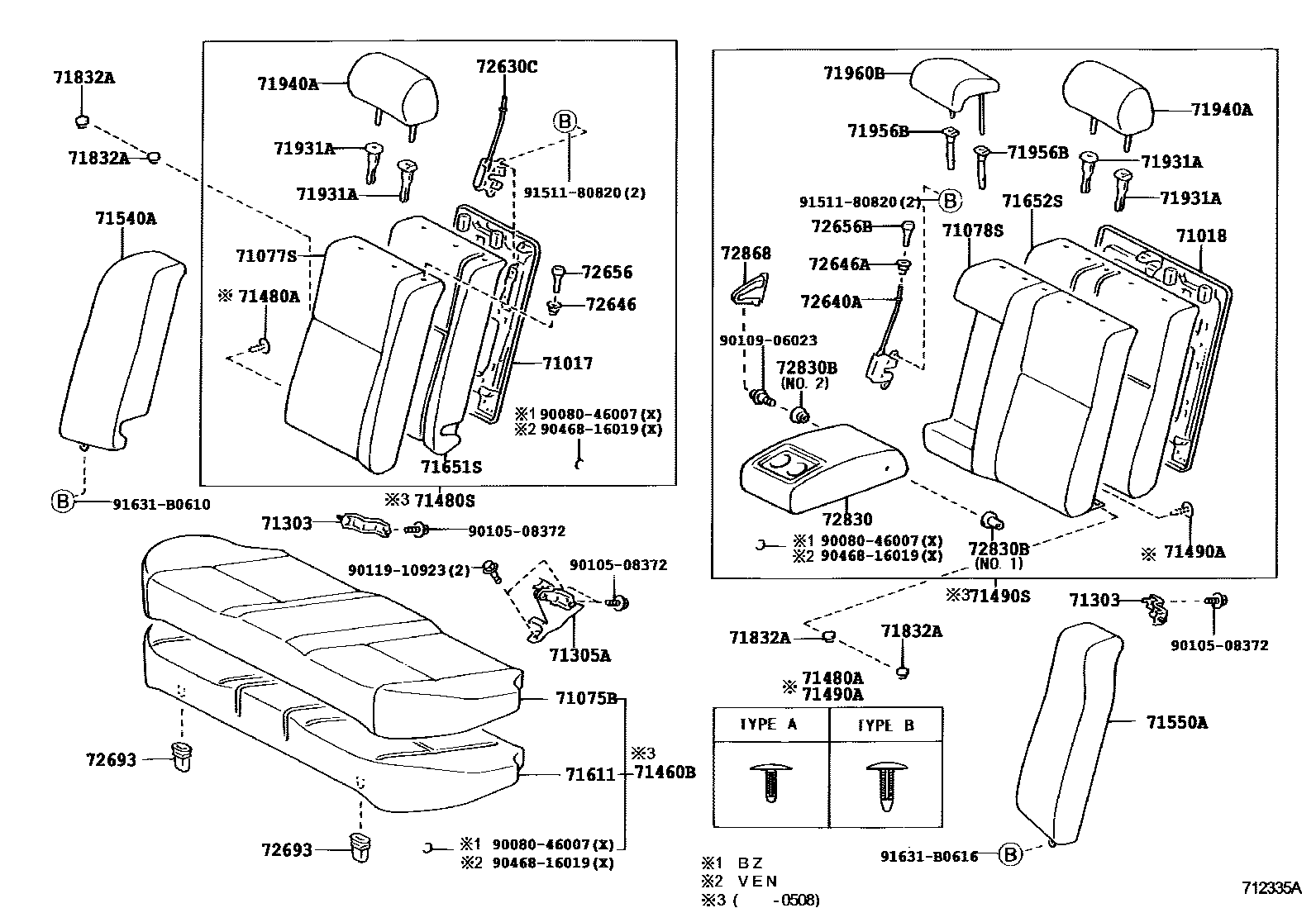

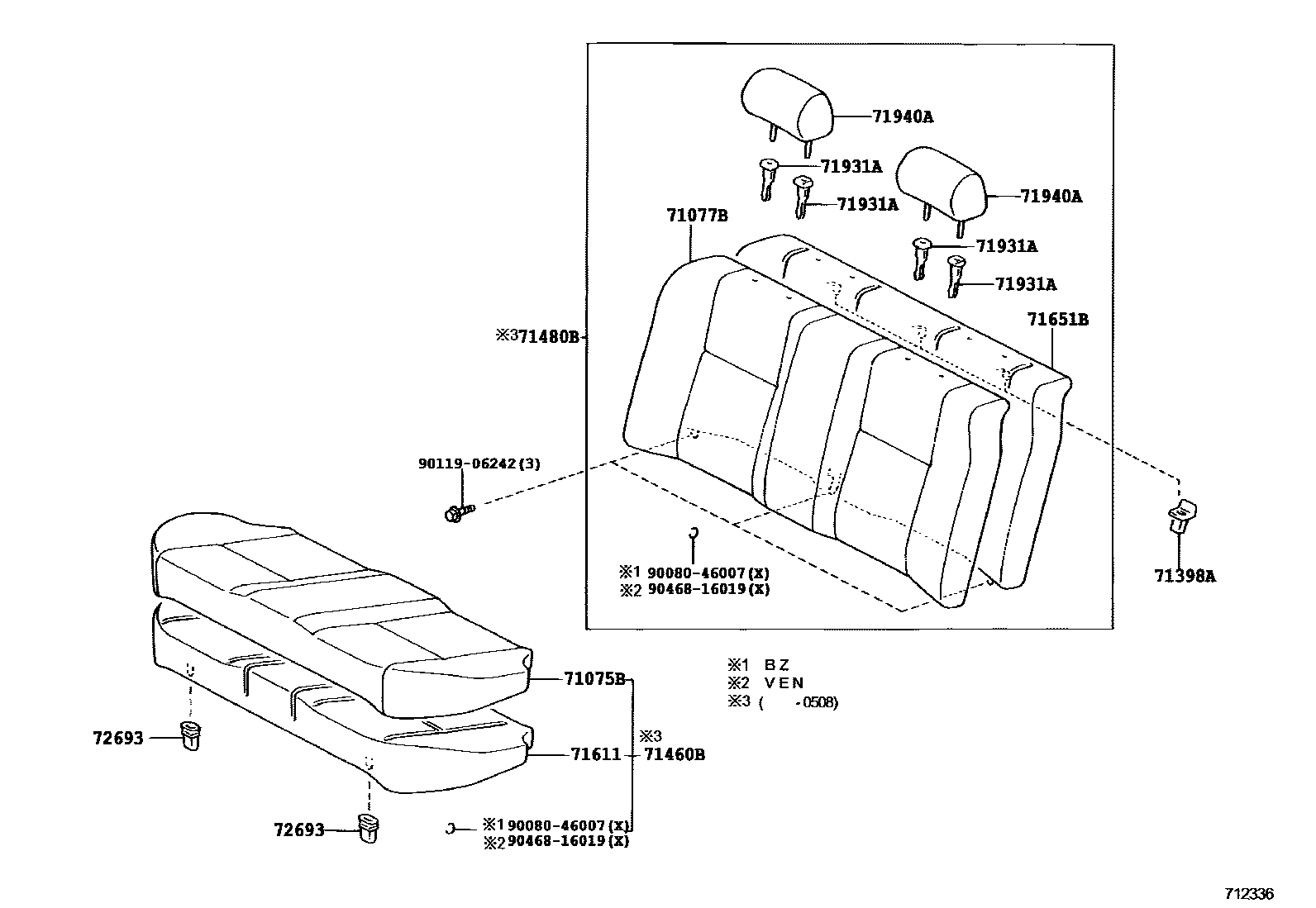

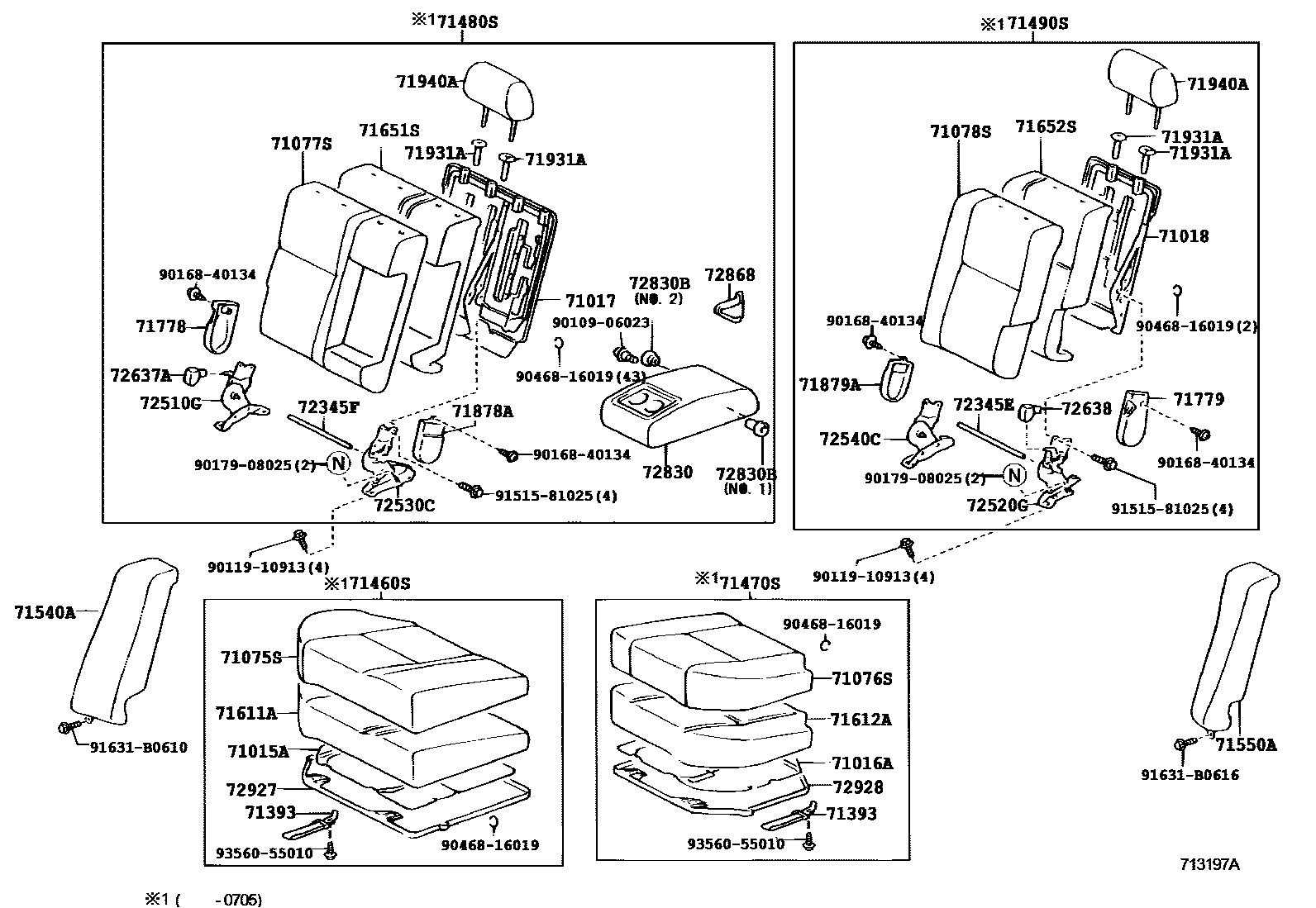

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-02110 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-02040 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12530 · 71017-13250 |
| 71018 | Rear left seat back frame sub-assembly | 71018-13100 · 71720-02010 |
| 71078S | Rear left seat back cover (for split seats) | 71078-02430 |
| 71303 | Rear seat back hinge sub-assembly | 71303-33010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12170 |
| 71393 | Rear seat cushion straps | 71393-02060 · 71393-02070 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71611 | Rear seat cushion cushion | 71503-12130 |
| 71611A | Rear right seat cushion | 71611-02060 |
| 71612A | Rear left seat cushion | 71612-02040 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02100 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02070 · 71651-02100 · 71651-02320 · 71651-12790 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02110 · 71652-02120 · 71652-02220 · 71652-02310 |
| 72345E | Seat back recliner connecting tube | 72345-13050 |
| 72345F | Right seat back recliner connecting pipe | 72345-13050 |
| 72510G | Rear right seat backrest inclination outer adjuster assembly | 72510-13020 |
| 72520G | Rear left seat backrest tilt outer adjuster assembly | 72520-13020 |
| 72530C | Rear right seat backrest inclination angle inner adjuster assembly | 72530-13020 |
| 72540C | Rear left seat backrest inclination angle inner adjuster assembly | 72540-13020 |
| 72630C | Rear right seat back lock assembly | 72630-47010 |
| 72640A | Rear left seat back lock assembly | 72640-47010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 · 90386-08077 |
| 72927 | Rear right seat cushion lower cover | 72927-02050 |
| 72928 | Rear left seat cushion lower cover | 72928-02050 |
