Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

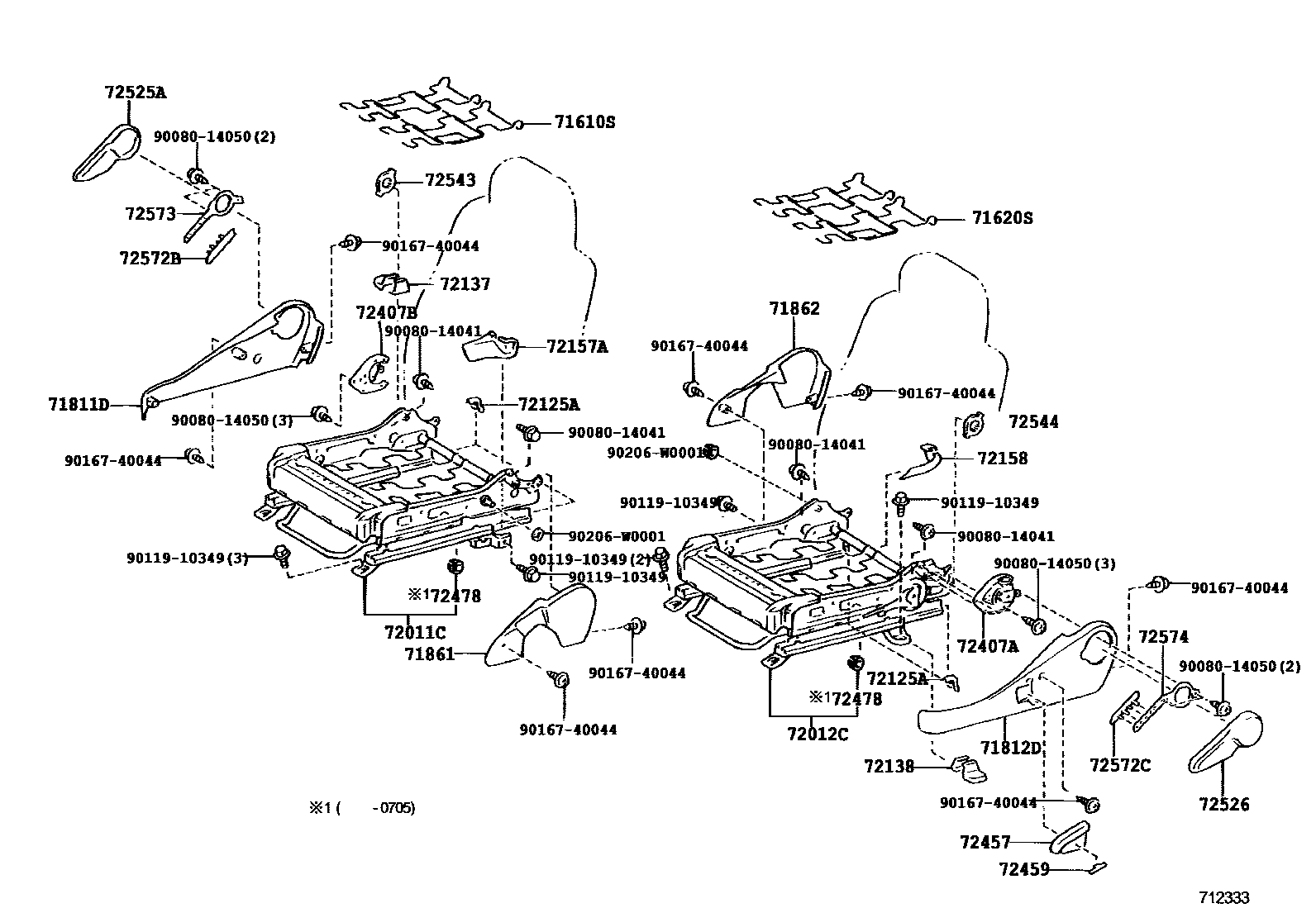

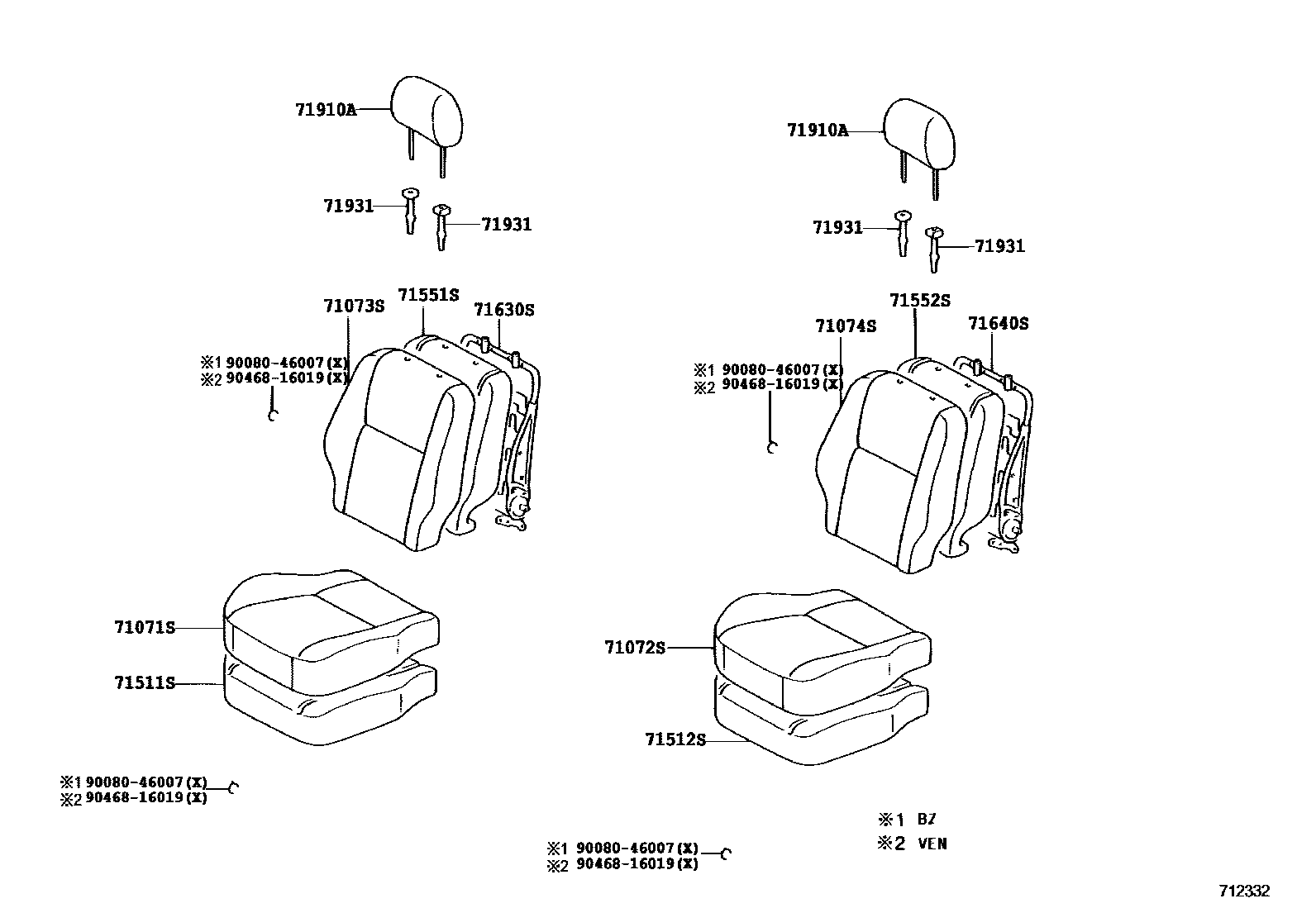

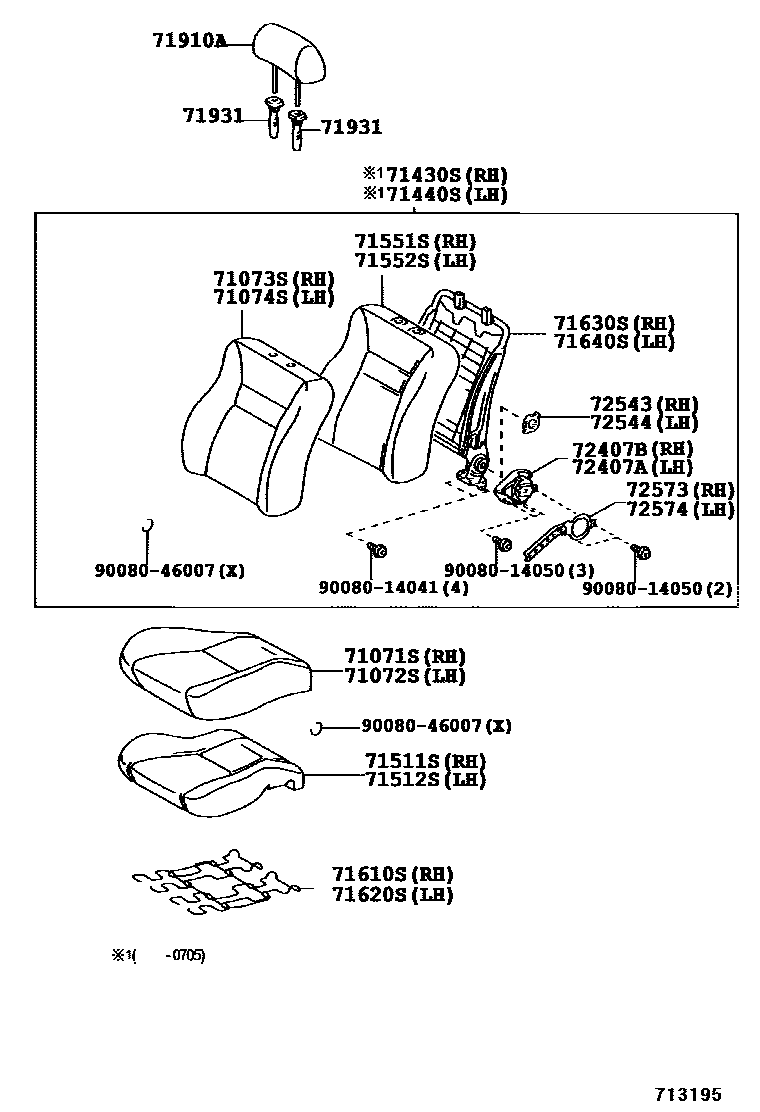

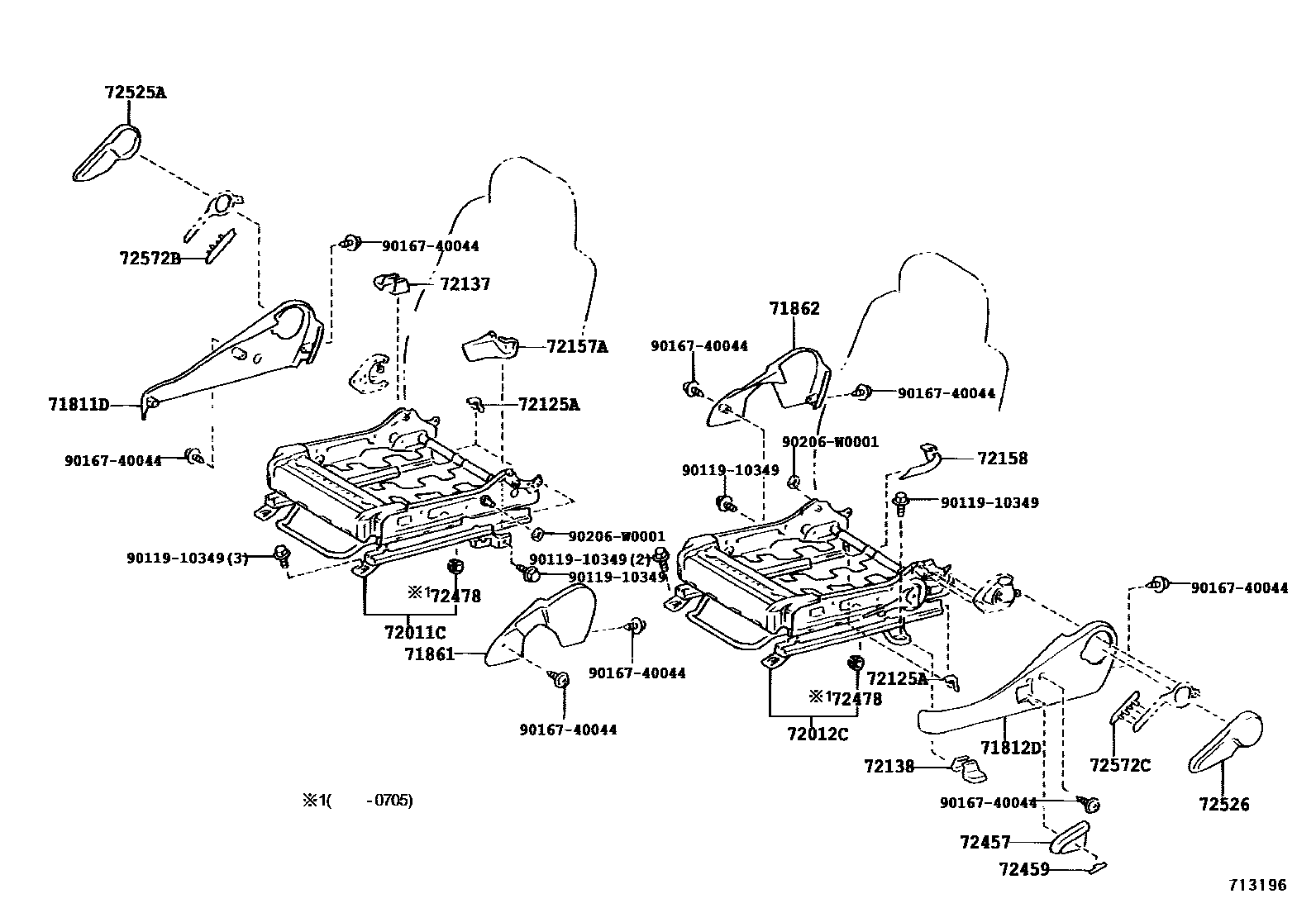

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-02170 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-02170 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02230 · 71551-02240 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02230 · 71551-02240 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71051-02010 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71051-02010 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02100 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02060 |
| 71811D | Front right seat cushion guard | 71811-02090 |
| 71812D | Front left seat cushion guard | 71812-02120 |
| 71861 | Front seat cushion right inner guard panel | 71861-02050 |
| 71862 | Front seat cushion left inner guard panel | 71862-02050 |
| 72011C | Front right seat adjuster sub-assembly | 72010-02020 |
| 72012C | Front left seat adjuster sub-assembly | 72020-02060 |
| 72125A | Rear seat upper slide rail cover | 72125-02010 |
| 72137 | Right seat outer slide rail cover | 72137-02040 |
| 72138 | Left seat outer slide rail cover | 72138-02040 |
| 72157A | Right seat inner slide rail bracket cover | 72157-02040 |
| 72158 | Left seat inner slide rail bracket cover | 72158-02040 |
| 72407A | Front left seat recliner housing sub-assembly | 72407-02010 · 72407-02020 |
| 72407B | Front right seat recliner housing sub-assembly | 72407-02010 |
| 72457 | seat height adjuster knob | 72457-02040 |
| 72459 | Seat height adjuster knob cover | 72459-02010 |
| 72478 | height adjuster bushing | 72478-02010 |
| 72525A | Right seat back recliner release handle | 72525-02041 |
| 72526 | Left seat back recliner release handle | 72526-02041 |
| 72543 | Right seat backrest tilt adjustment control panel | 72543-02010 |
| 72544 | Left seat backrest tilt adjustment control panel | 72543-02010 |
| 72572B | Right seat back recliner knob cover | 72572-02010 |
| 72572C | Left seat back recliner knob cover | 72572-02020 |
| 72573 | Right seat back tilt control lever | 72573-02010 |
| 72574 | Left seat back tilt control lever | 72574-02010 |
