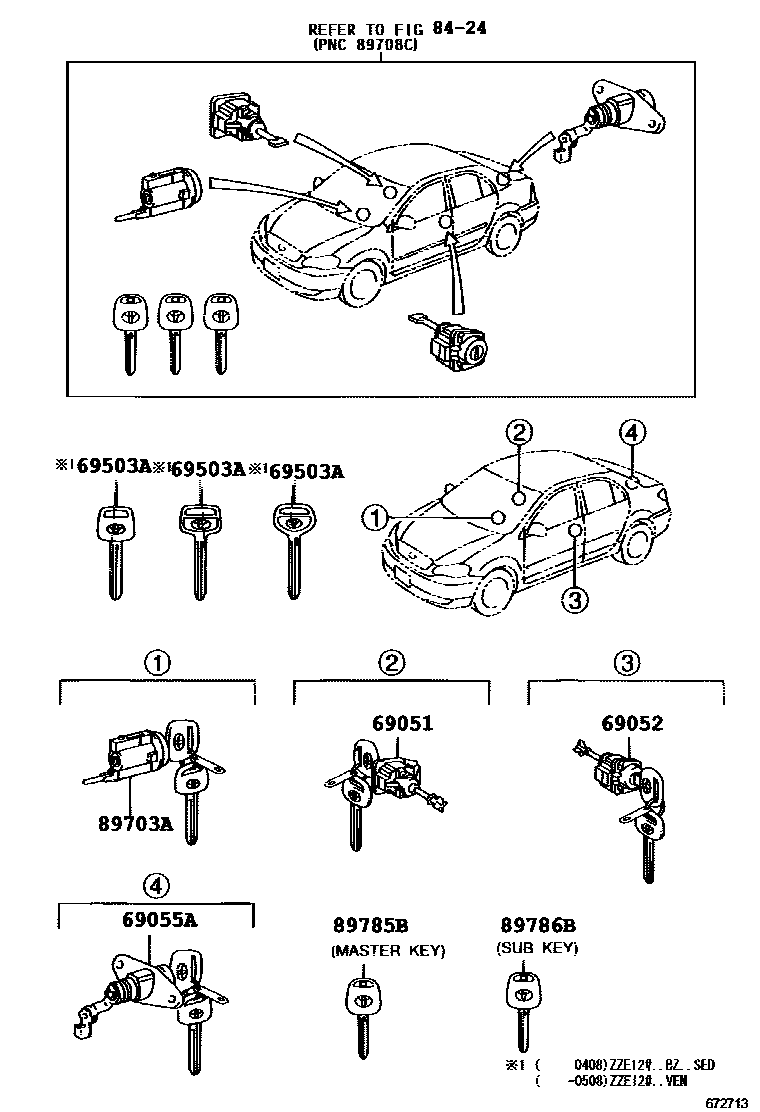

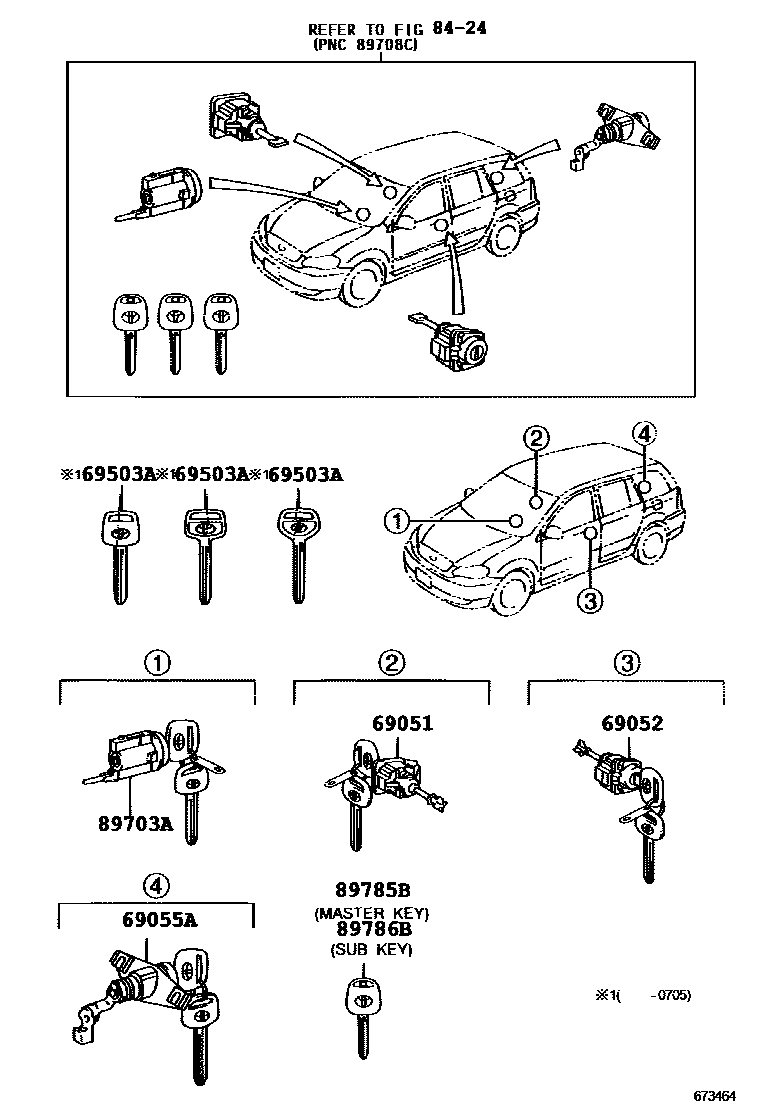

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02100 |
| 69052 | Left door lock cylinder and key assembly | 69052-02090 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02100 · 69055-02120 |
| 69503A | external tooth key | 90999-00186 · 90999-00188 · 90999-00199 |
| 89703A | Ignition lock cylinder and key assembly with transceiver | 89708-02140 |
| 89785B | transceiver key master transmitter | 89785-02130 · 89785-02140 |
| 89786B | transceiver key secondary transmitter | 89786-02100 · 89786-02110 |
