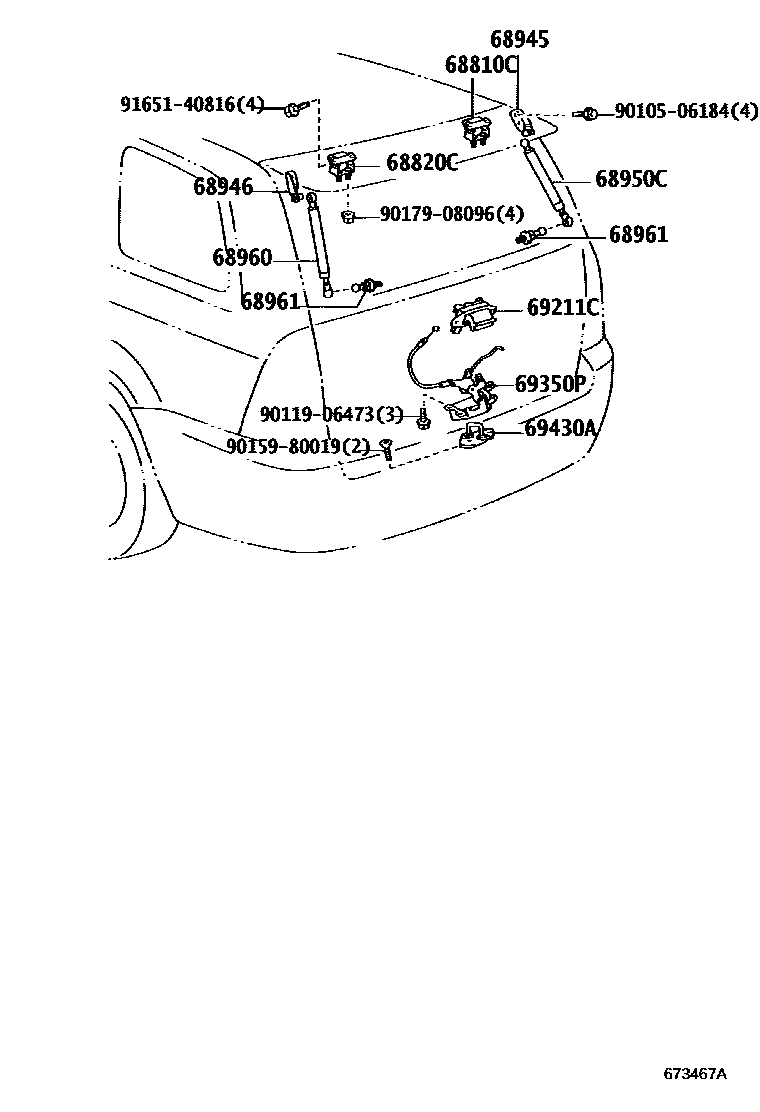

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-21050 |
| 68820C | Back door left hinge assembly | 68810-21050 |
| 68945 | Back door right damping stay upper bracket | 68945-13040 |
| 68946 | Rear door left damping strut upper bracket | 68946-13040 |
| 68950C | Back door right support rod assembly | 68950-02100 · 68950-02101 |
| 68960 | Back door left support rod assembly | 68960-02090 · 68960-02091 |
| 68961 | Rear door support rod bolts | 68961-10030 |
| 69211C | Back door outer handle | 69023-13020 |
| 69350P | Back door with door control light switch lock assembly | 69350-13320 |
| 69430A | Back door lower lock assembly | 69430-52020 |
