Toyota COROLLA 后门板和后门玻璃 — Figure 6705

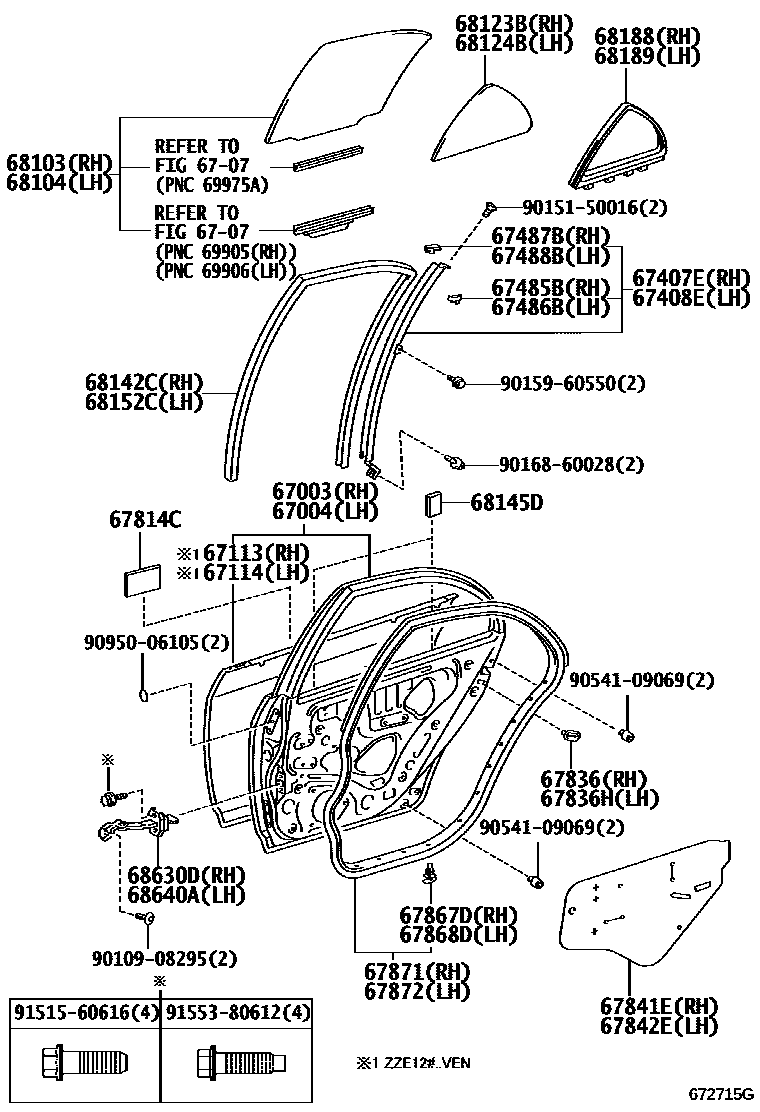

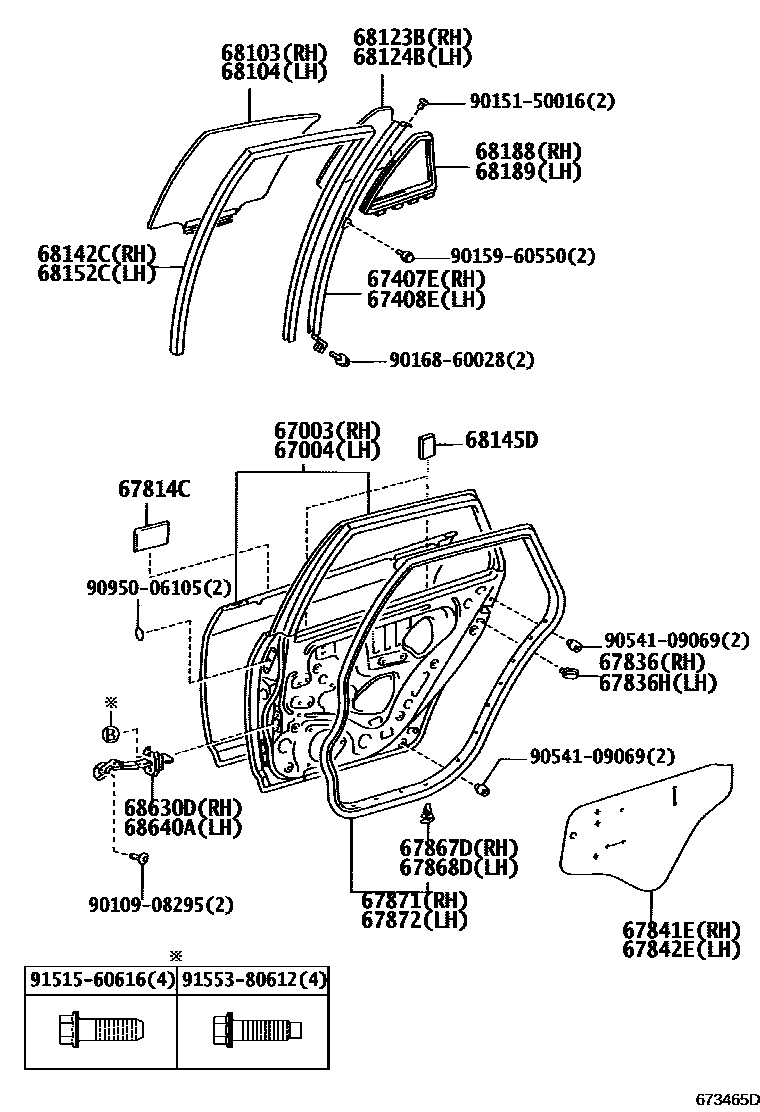

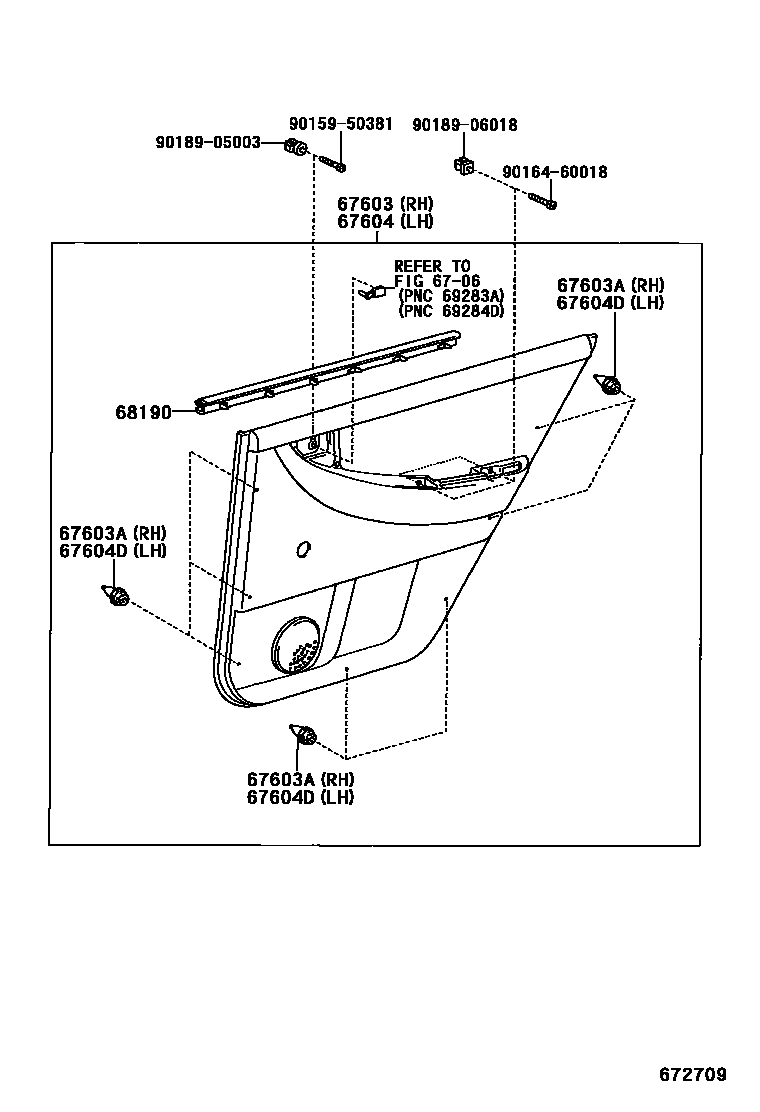

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02230 · 67003-1A060 |
| 67004 | Left rear door panel sub-assembly | 67004-02240 · 67004-1A060 |
| 67113 | Right rear door outer panel | 67113-12270 |
| 67114 | Left rear door outer panel | 67114-12270 |
| 67407E | Right rear door window divider sub-assembly | 67407-12260 · 67407-13060 |
| 67408E | Left rear door window divider sub-assembly | 67408-12260 · 67408-13060 |
| 67485B | Right rear door divider inner seal | 67485-53010 |
| 67486B | Left rear door divider inner seal | 67486-53010 |
| 67487B | Right rear door divider seal | 67487-53010 |
| 67488B | Left rear door divider seal | 67488-53010 |
| 67603A | Fixings (for rear door trim) | 90467-10161 |
| 67604D | Left rear door trim panel fixing | 90467-10161 |
| 67814C | door guard seals | 67817-47010 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-02080 |
| 67842E | Left rear door access hole cover | 67842-02060 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12500 · 67871-13140 |
| 67872 | Left rear door sealing strip | 67872-12500 · 67872-13130 |
| 68103 | Right rear door glass sub-assembly | 68103-02100 · 68103-02170 |
| 68104 | Left rear door glass sub-assembly | 68104-02100 · 68104-02160 |
| 68123B | Right rear door corner window glass | 68123-02090 · 68123-02140 |
| 68124B | Left rear door corner window glass | 68124-02090 · 68124-02140 |
| 68142C | Right rear door glass lift slot | 68142-02050 · 68142-13110 |
| 68145D | Rear door window cushion | 69759-12110 |
| 68152C | Left rear door glass lift slot | 68152-02050 · 68152-13070 |
| 68188 | Right rear door corner window seal | 68188-12280 · 68188-13080 |
| 68189 | Left rear door corner window seal | 68189-12280 · 68189-13080 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-02100 · 68174-02070 |
| 68630D | Right rear door opening limiter assembly | 68630-02090 · 68630-12070 · 68630-12071 |
| 68640A | Left rear door opening limiter assembly | 68640-02090 · 68640-12040 · 68640-12041 |
