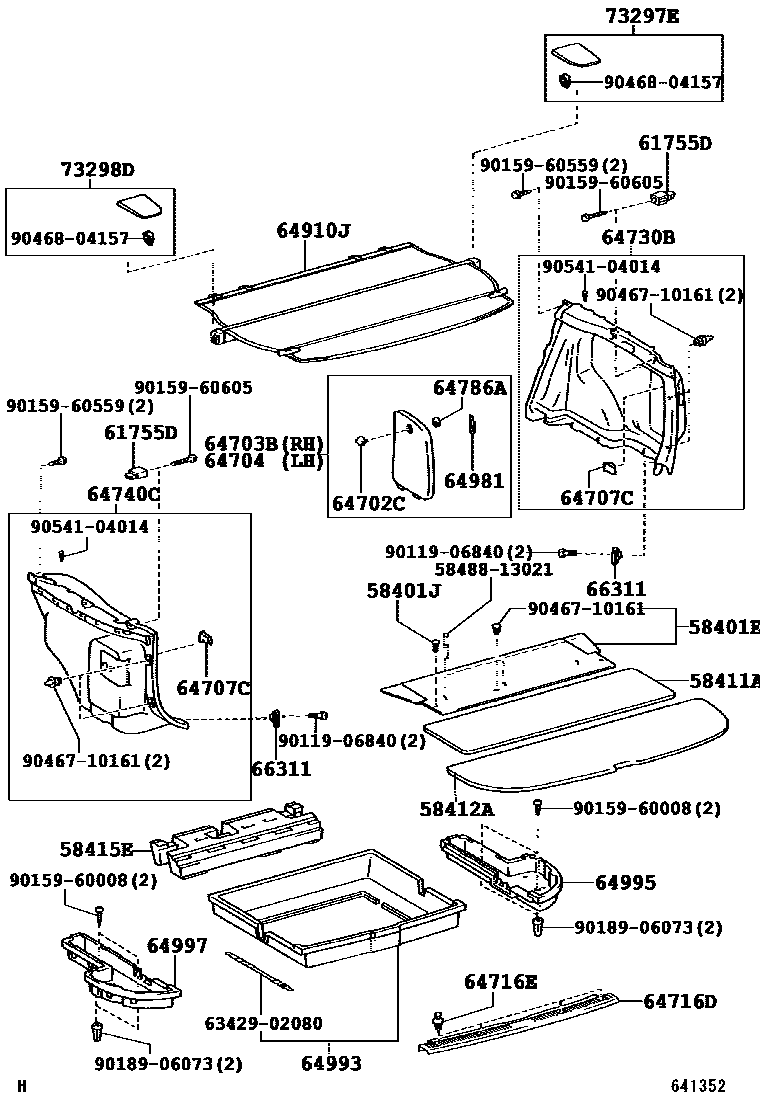

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58415E | Rear floor panel No. 1 | 58415-13070 |
| 61755D | Bottom panel upper trim fixings | 61755-32020 |
| 64786A | jack cover | 64786-20010 |
| 64981 | Washer water tank cover stopper | 64981-16021 |
| 64993 | Bottom floor box | 64993-02010 |
| 64995 | Bottom right floor box | 64995-02030 |
| 64997 | Bottom left floor box | 64997-02030 |
| 66311 | rope hook | 66310-13010 |
