Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 6 PNC and OE references.

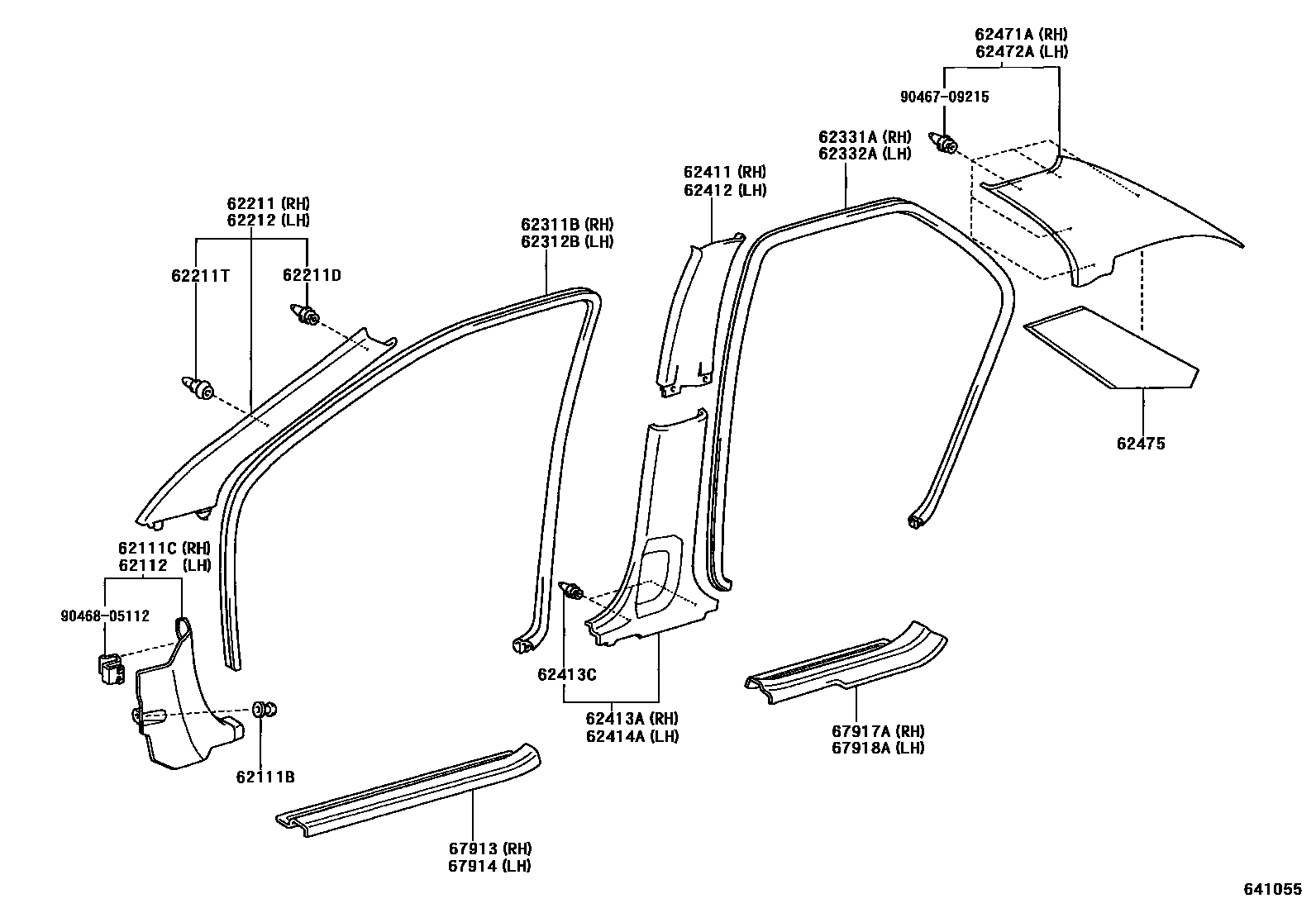

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 641055
内饰板和车门防水胶条 — 641055 (200205 – 999999)

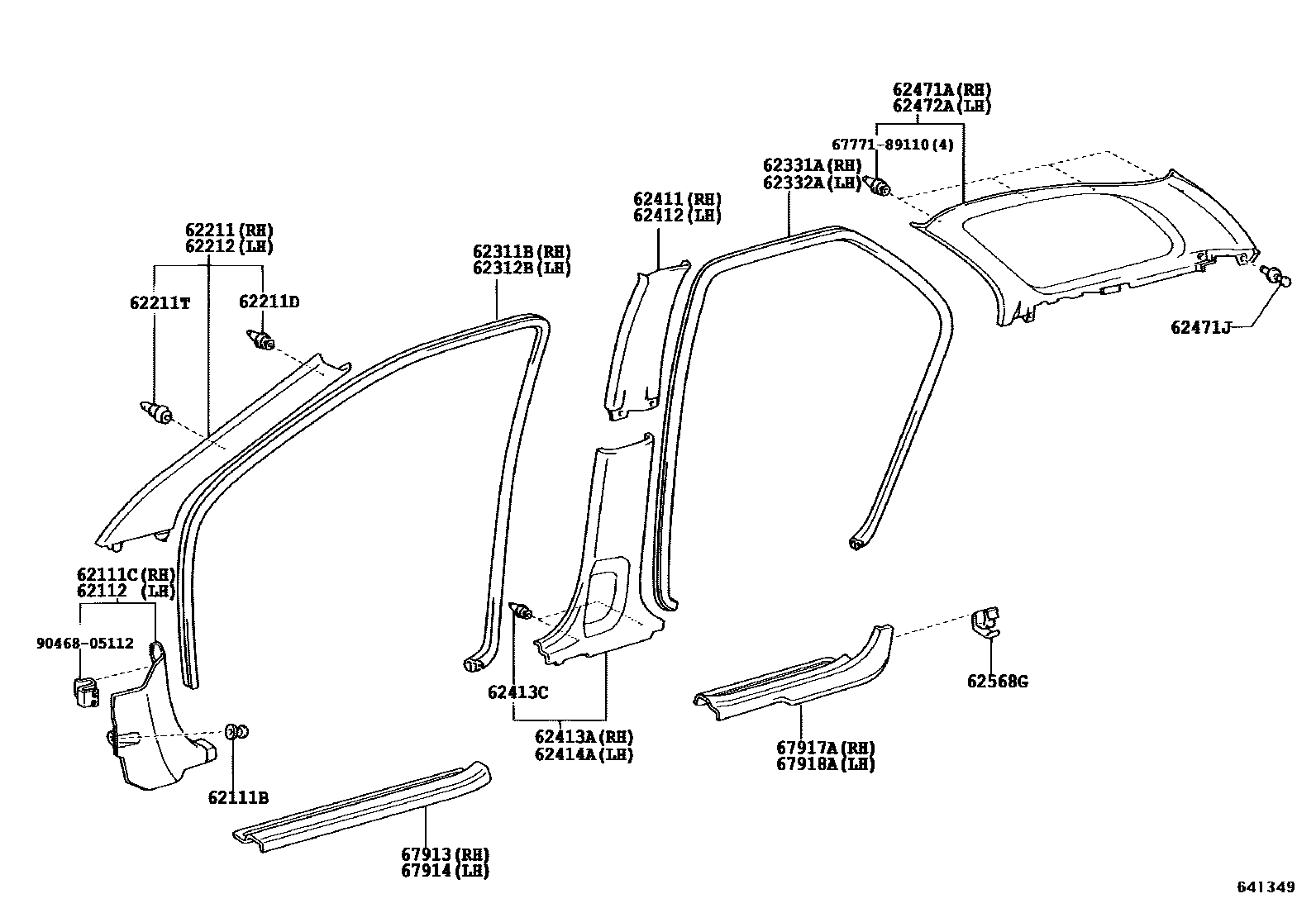

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 641349A
内饰板和车门防水胶条 — 641349A (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
62111BClip (for cowl side trim panel)90467-06120
62211DClip (for body front pillar decorative panel)90467-10188
62211TClip (for front pillar decorative panel)90467-10192
62413CClip (for the decorative panel under the center pillar)90467-09215
62475Roof side interior trim panel lining62475-02110
62568GNo. 3 door inner sill protection strip clip62568-13030
