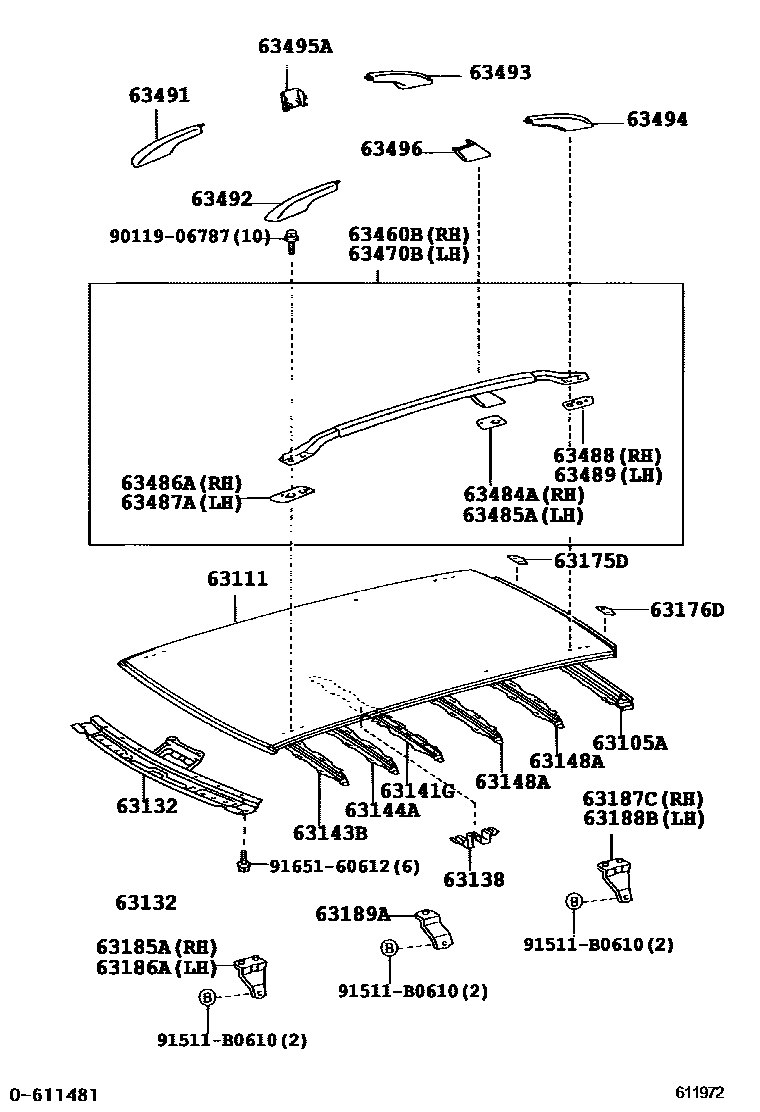

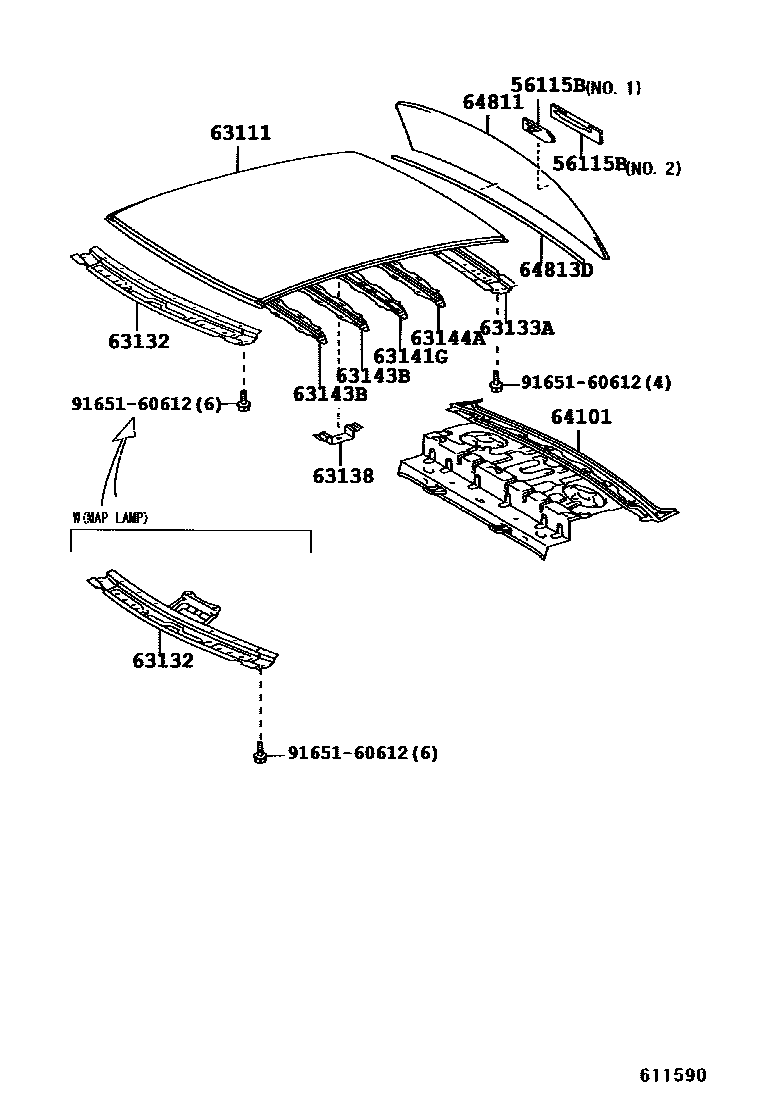

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 · 56116-22050 |
| 63105A | Back door opening frame sub-assembly | 63105-13210 |
| 63111 | roof panel | 63111-02110 · 63111-13410 |
| 63132 | Windshield inner roof panel | 63102-12170 · 63132-12280 |
| 63133A | upper frame of back window | 63133-12290 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-12260 · 63141-13080 |
| 63143B | No. 3 roof panel reinforcement | 63143-12100 |
| 63144A | No. 4 roof panel reinforcement | 63144-12080 · 63144-13030 |
| 63148A | No. 7 roof panel reinforcement | 63148-13020 |
| 63175D | Back door right recessed hinge reinforcement | 63175-52020 |
| 63176D | Back door left recessed hinge reinforcement | 63176-52020 |
| 63185A | Right front roof rack bracket | 63185-13071 |
| 63186A | Left front roof rack bracket | 63186-13071 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-13020 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-13020 |
| 63189A | Center roof rack bracket | 63189-13060 |
| 63460B | Roof right luggage rack assembly | 63460-13110 |
| 63470B | Roof left luggage rack assembly | 63470-13110 |
| 63484A | Right center roof rack foot cushion | 63484-13050 |
| 63485A | Left center roof rack foot cushion | 63485-13050 |
| 63486A | Right front roof rack support foot cushion | 63486-13050 |
| 63487A | Left front roof rack support foot cushion | 63487-13050 |
| 63488 | Right rear roof rack foot cushion pad | 63488-13060 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-13060 |
| 63491 | Right front roof rack leg cover | 63491-13090 |
| 63492 | Left front roof rack leg cover | 63492-13090 |
| 63493 | Right rear roof rack foot cover | 63493-13100 |
| 63494 | Left rear roof rack leg cover | 63494-13100 |
| 63495A | Center roof rack foot cover | 63495-13090 |
| 63496 | Left center roof rack foot cover | 63496-13090 |
| 64101 | Upper back panel sub-assembly | 64101-12690 · 64101-12700 · 64101-12800 |
| 64811 | back window glass | 64811-02210 |
| 64813D | Back window glass adhesive seal | 56117-47010 |
