Toyota COROLLA 侧梁 — Figure 6101

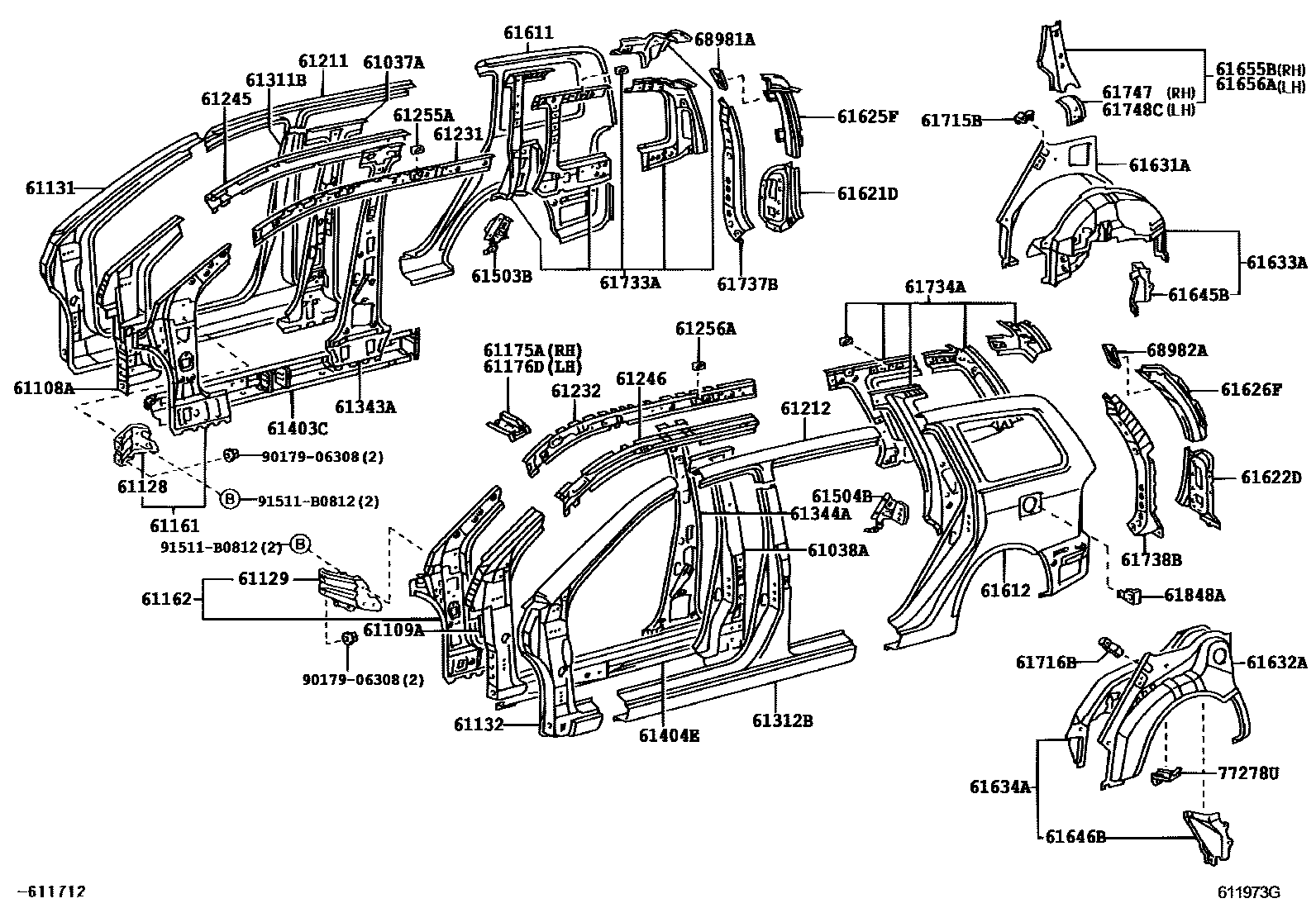

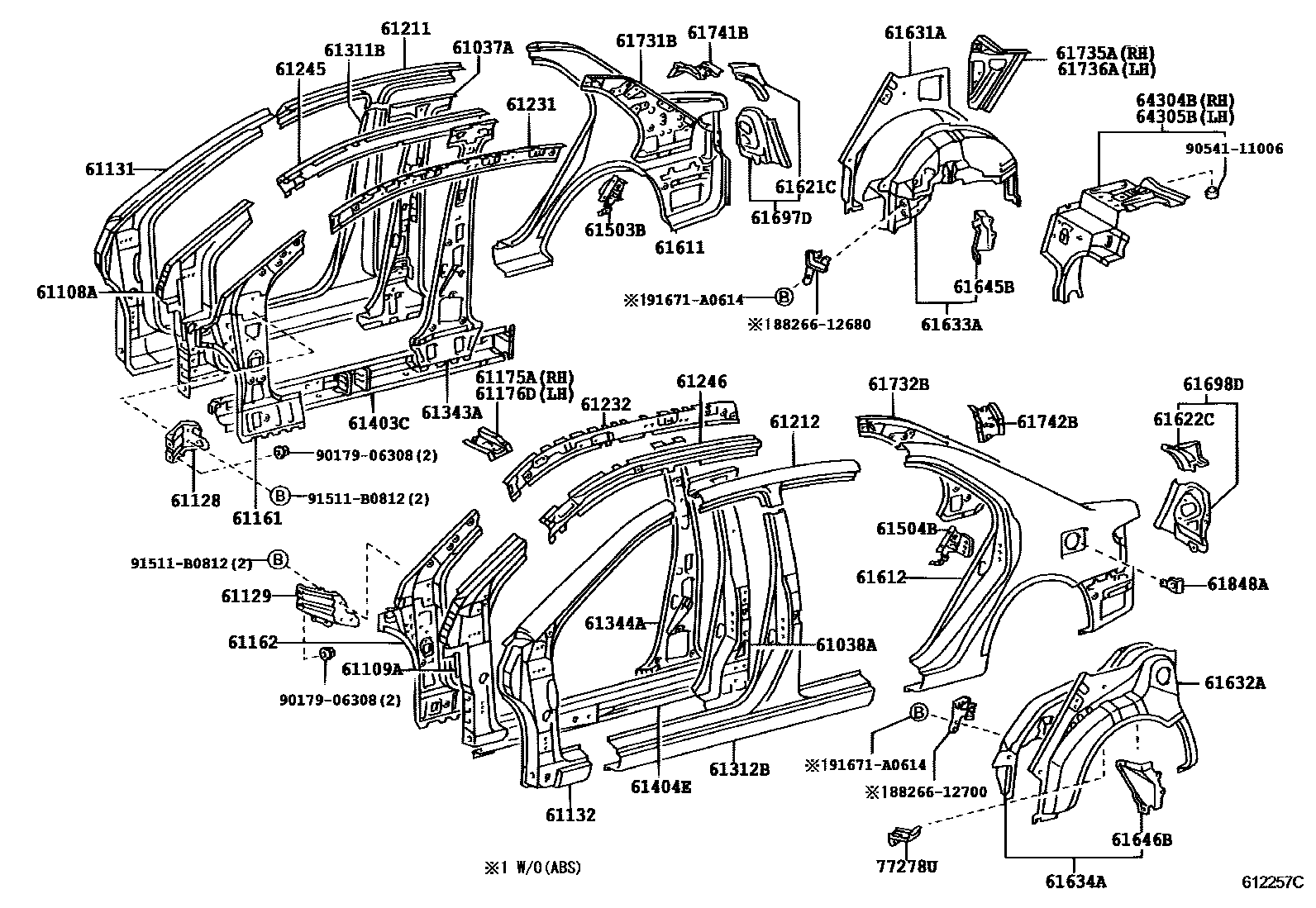

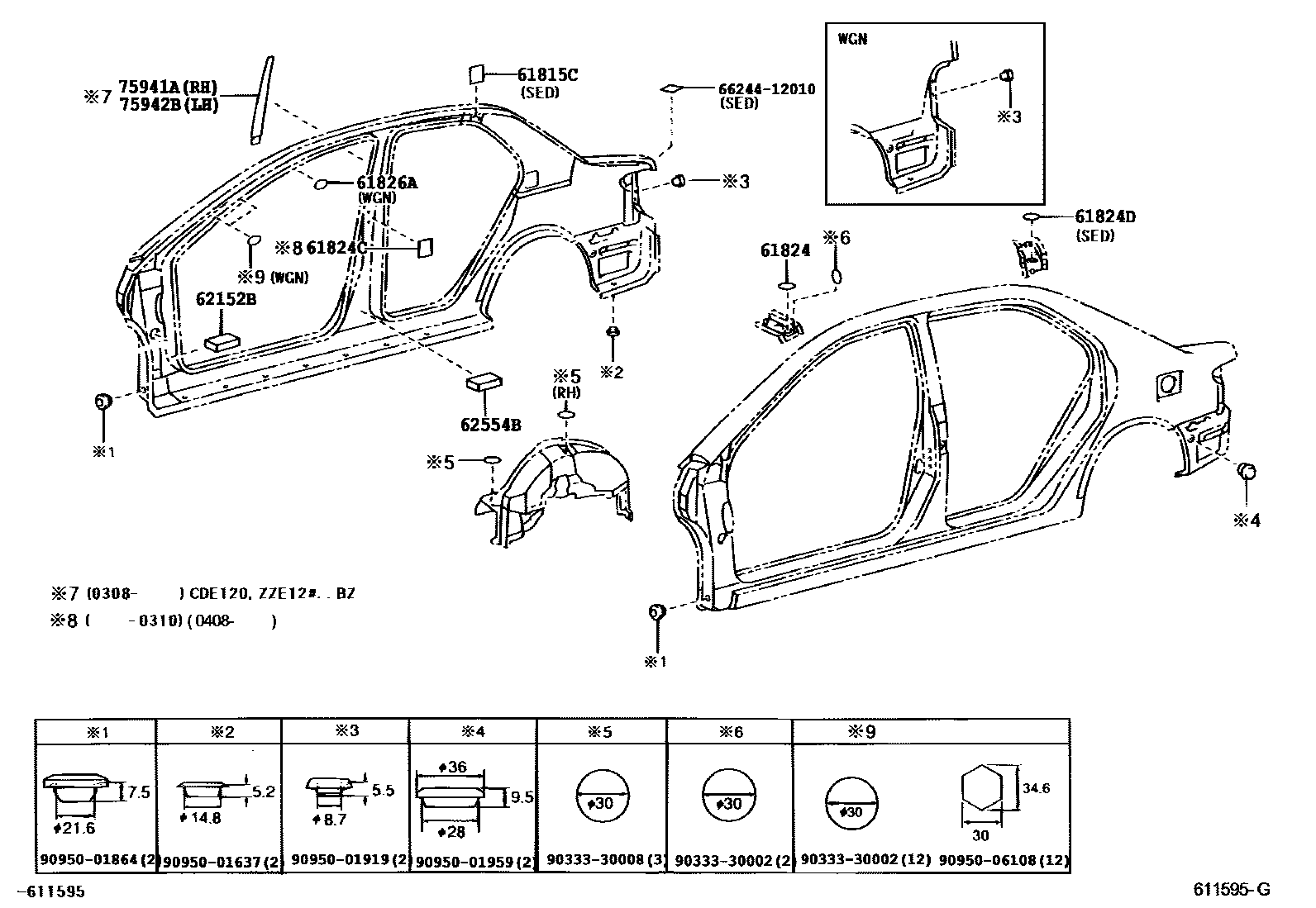

Toyota COROLLA EPC diagram 6101, 侧梁, with 4 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12906 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12906 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12230 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12220 |
| 61128 | Right front wall side panel reinforcement | 61103-12190 · 61103-12200 |
| 61129 | Left front wall side panel reinforcement | 61104-12220 · 61104-12230 |
| 61131 | Right body outer front upper pillar | 61131-12600 · 61131-12680 |
| 61132 | Left body outer front upper pillar | 61132-12610 · 61132-12680 |
| 61161 | Right upper body inner front pillar | 61023-02901 |
| 61162 | Left side inner front upper pillar | 61024-02901 · 61024-12300 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-12180 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-12190 |
| 61211 | Roof right outer longitudinal beam | 61211-12440 · 61211-13070 |
| 61212 | Roof left outer longitudinal beam | 61212-12440 · 61212-13070 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-13200 · 61231-1A140 |
| 61232 | Roof left inner longitudinal beam | 61232-13180 · 61232-1A020 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-12060 · 61245-13030 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-12060 · 61246-13030 |
| 61255A | Roof right outer longitudinal beam panel | 61255-13020 |
| 61256A | Roof left outer longitudinal beam panel | 61255-13020 |
| 61311B | Right body outer center pillar | 61311-12370 |
| 61312B | Left body outer center pillar | 61312-12410 |
| 61343A | Right body inner center pillar | 61343-12190 |
| 61344A | Left body inner center pillar | 61344-12190 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12050 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12070 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-13030 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-13030 |
| 61611 | Right side hoarding | 61601-02110 · 61601-1H170 |
| 61612 | left side panel | 61602-02180 · 61602-1H010 |
| 61621C | Luggage right opening slot | 61621-12470 |
| 61621D | Back door right opening slot | 61621-13050 |
| 61622C | Luggage trunk left opening slot | 61622-12470 |
| 61622D | Rear door left opening slot | 61622-13050 |
| 61625F | Extension on right side panel | 61625-13060 |
| 61626F | Extension on left side panel | 61626-13060 |
| 61631A | Right wheel cover outer panel | 61631-12400 · 61631-12430 |
| 61632A | Left side wheel cover outer panel | 61632-12410 · 61632-12420 |
| 61633A | Right wheel housing lining panel | 61607-12923 · 61607-12924 · 61607-12927 · 61607-12928 |
| 61634A | Left side wheel housing lining panel | 61608-02924 · 61608-1A905 · 61608-1A906 · 61608-1A907 · 61608-1A908 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61655B | Right side wheel cover inner corner panel | 61655-02901 |
| 61656A | Left side wheel housing inner corner panel | 61656-02901 |
| 61697D | Right side enclosure end cover | 61697-02901 |
| 61698D | Left side enclosure end cover | 61698-02901 |
| 61715B | Right front roof inner extension | 61715-13050 |
| 61716B | Left front roof inner extension | 61715-13050 |
| 61731B | Roof right inner panel | 61731-02050 |
| 61732B | Roof left inner panel | 61732-02050 |
| 61733A | Right front roof inner panel | 61733-13903 |
| 61734A | Left front roof inner panel | 61734-13903 |
| 61735A | Right rear roof inner panel | 61735-12380 |
| 61736A | Left rear roof inner panel | 61736-12380 |
| 61737B | Right inner lower panel of the roof | 61737-13060 |
| 61738B | Roof left inner lower panel | 61738-13050 |
| 61741B | Rear window opening right reinforcement | 61741-12140 |
| 61742B | Rear window opening left reinforcement | 61742-12110 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-13050 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-13080 |
| 61815C | Inner roof cover | 61815-28010 · 61815-32020 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61824C | No. 1 silencer panel gasket | 61824-50020 · 61824-52040 |
| 61824D | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61826A | Noise Control Panel No. 3 | 61826-52020 |
| 61848A | Left side panel fixing | 61848-52010 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-12040 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-12040 |
| 68981A | Back door right side support rod fixing | 68981-13030 |
| 68982A | Back door left support rod fixing | 68982-13030 |
| 75941A | Right center pillar trim | 75941-02040 |
| 75942B | Left center pillar trim | 75942-02040 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-32050 |
