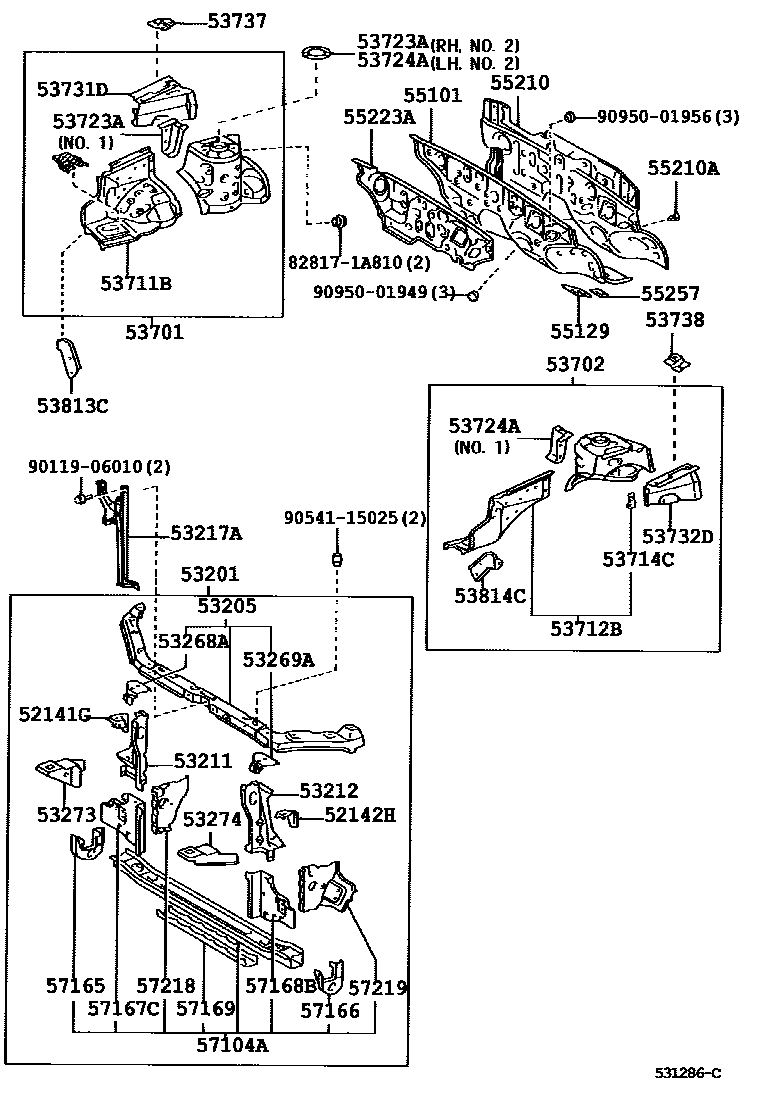

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141G | Front bumper right side stay | 52141-12510 |
| 52142H | Front bumper left stay | 52142-12440 |
| 53201 | Radiator bracket sub-assembly | 53201-1A240 · 53201-1A250 · 53201-1A300 |
| 53205 | Radiator upper bracket sub-assembly | 53216-02904 · 53216-02905 |
| 53211 | Radiator right side support | 53211-12420 |
| 53212 | Radiator left support | 53212-12360 |
| 53217A | engine cover lock bracket | 53208-12500 |
| 53268A | Install reinforcement on the right side of the radiator | 53268-12130 |
| 53269A | Install reinforcement on the left side of the radiator | 53269-12110 |
| 53273 | Front bumper arm right mounting bracket | 53273-12060 |
| 53274 | Front bumper arm left mounting bracket | 53274-12060 |
| 53701 | Right front fender fender sub-assembly | 53701-02901 |
| 53702 | Left front fender fender sub-assembly | 53702-02900 |
| 53711B | Right front fender front fender | 53711-02904 · 53711-12230 |
| 53712B | Left front fender front fender | 53712-02904 · 53712-12190 |
| 53714C | Left front fender fender front extension | 53714-12150 |
| 53723A | Front spring bracket right side reinforcement | 53723-12080 · 53723-12090 · 53723-12091 |
| 53724A | Front spring bracket left reinforcement | 53723-12090 · 53723-12091 · 53724-12070 |
| 53731D | Right front fender to cowl side upper beam | 53731-12160 |
| 53732D | Left front fender to cowl side upper beam | 53732-12140 |
| 53737 | Right front fender to front wall side sill | 53737-12060 |
| 53738 | Left front fender to front wall side sill | 53738-12030 |
| 53813C | Right front fender extension | 53813-12090 |
| 53814C | Left front fender extension | 53814-12040 |
| 55101 | Front apron sub-assembly | 55101-02400 · 55101-13111 · 55101-19095 · 55101-19105 · 55101-1E851 |
| 55129 | Front panel hole cover | 55129-32030 · 55139-32010 |
| 55210 | Front wall insulation pad assembly | 55210-02120 |
| 55223A | Front wall outer heat insulation pad | 55223-02150 · 55223-02151 · 55223-02152 |
| 55257 | cowl opening cover | 55257-32010 |
| 57104A | Front cross member sub-assembly | 57104-12190 · 57104-12200 · 57104-12220 |
| 57165 | Front cross member lower right reinforcement | 57165-12070 |
| 57166 | Front cross member lower left reinforcement | 57166-12020 |
| 57167C | Front cross member right corner panel | 57167-12110 |
| 57168B | Front cross member left corner panel | 57168-12110 |
| 57169 | Front floor right front bracket | 57169-12020 · 57169-42030 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-12010 · 57218-13010 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-12010 |
