Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 2 PNC and OE references.

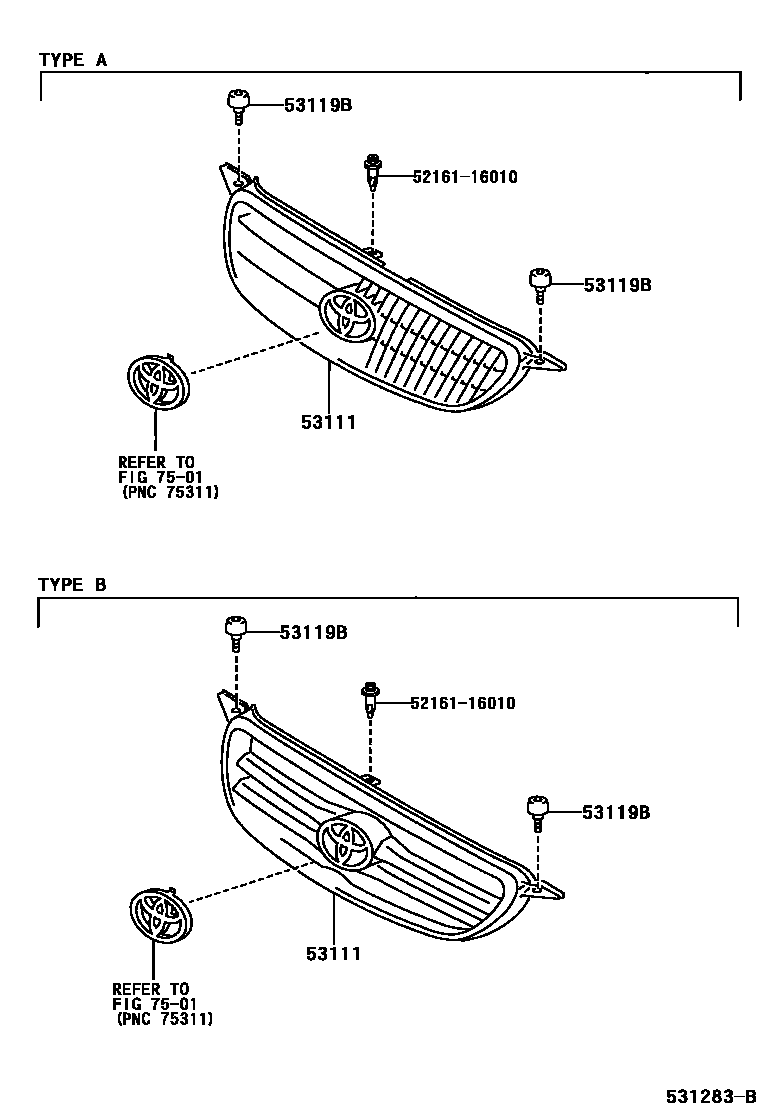

Toyota COROLLA radiator grille EPC diagram — 531283B
radiator grille — 531283B (200205 – 200705)

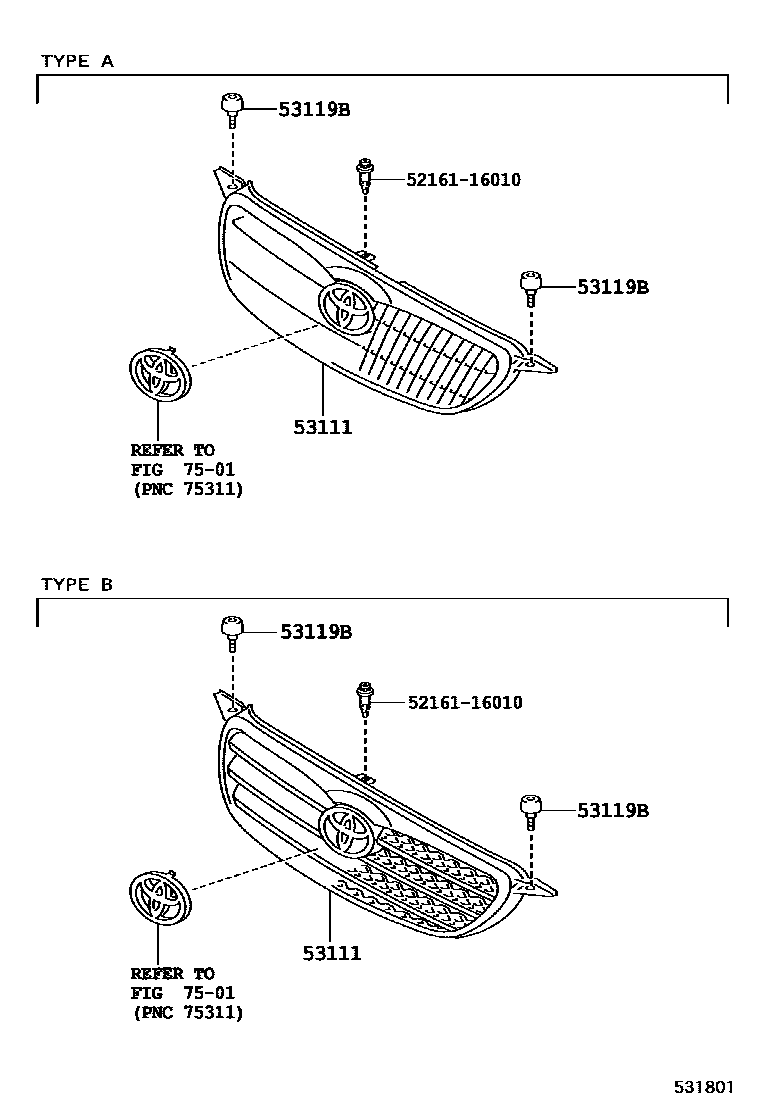

Toyota COROLLA radiator grille EPC diagram — 531801
radiator grille — 531801 (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53100-02030 · 53100-02040 · 53100-02080 · 53100-02150 · 53100-02160 · 53100-02260
53119BRadiator grille protector53119-12150
