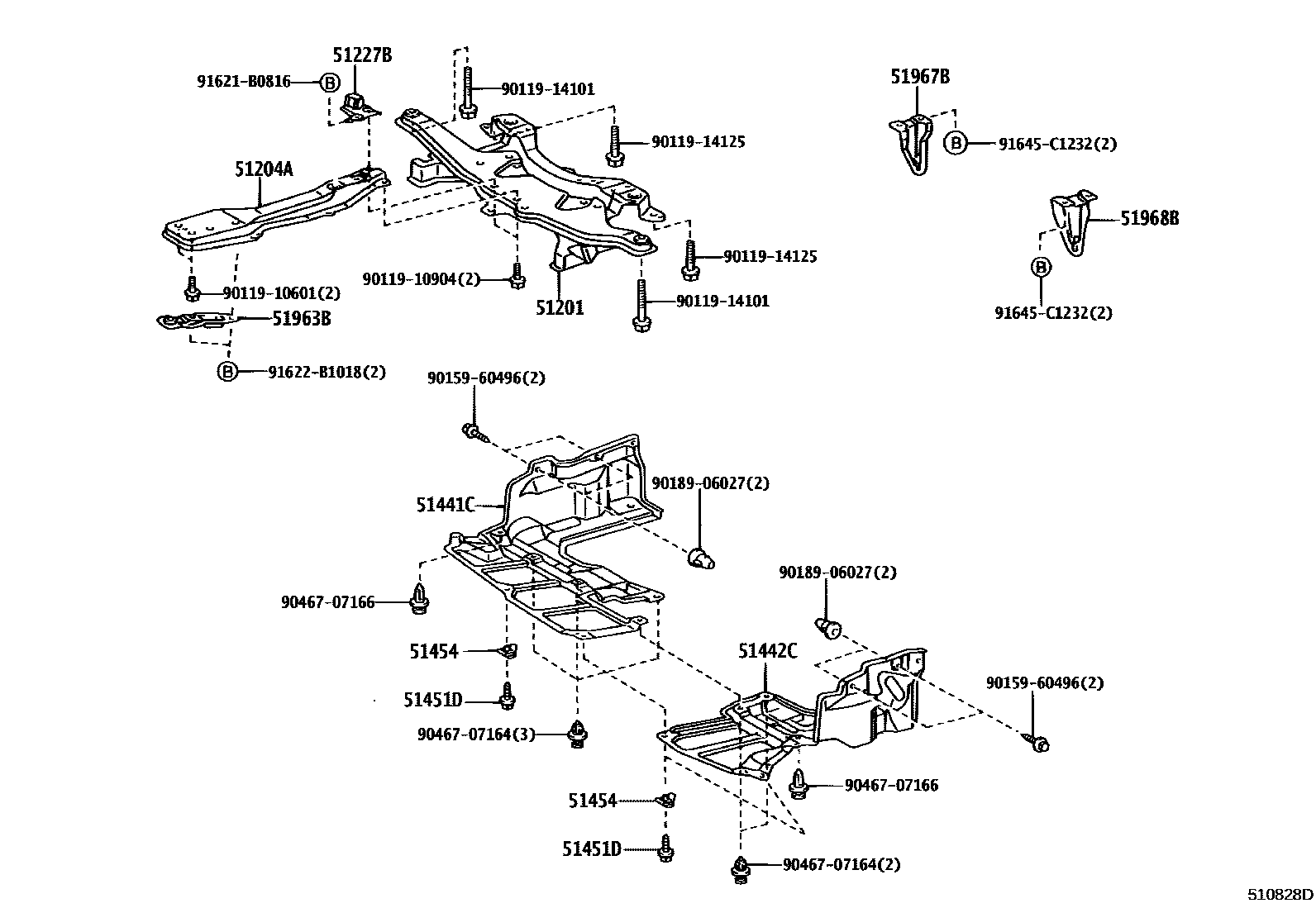

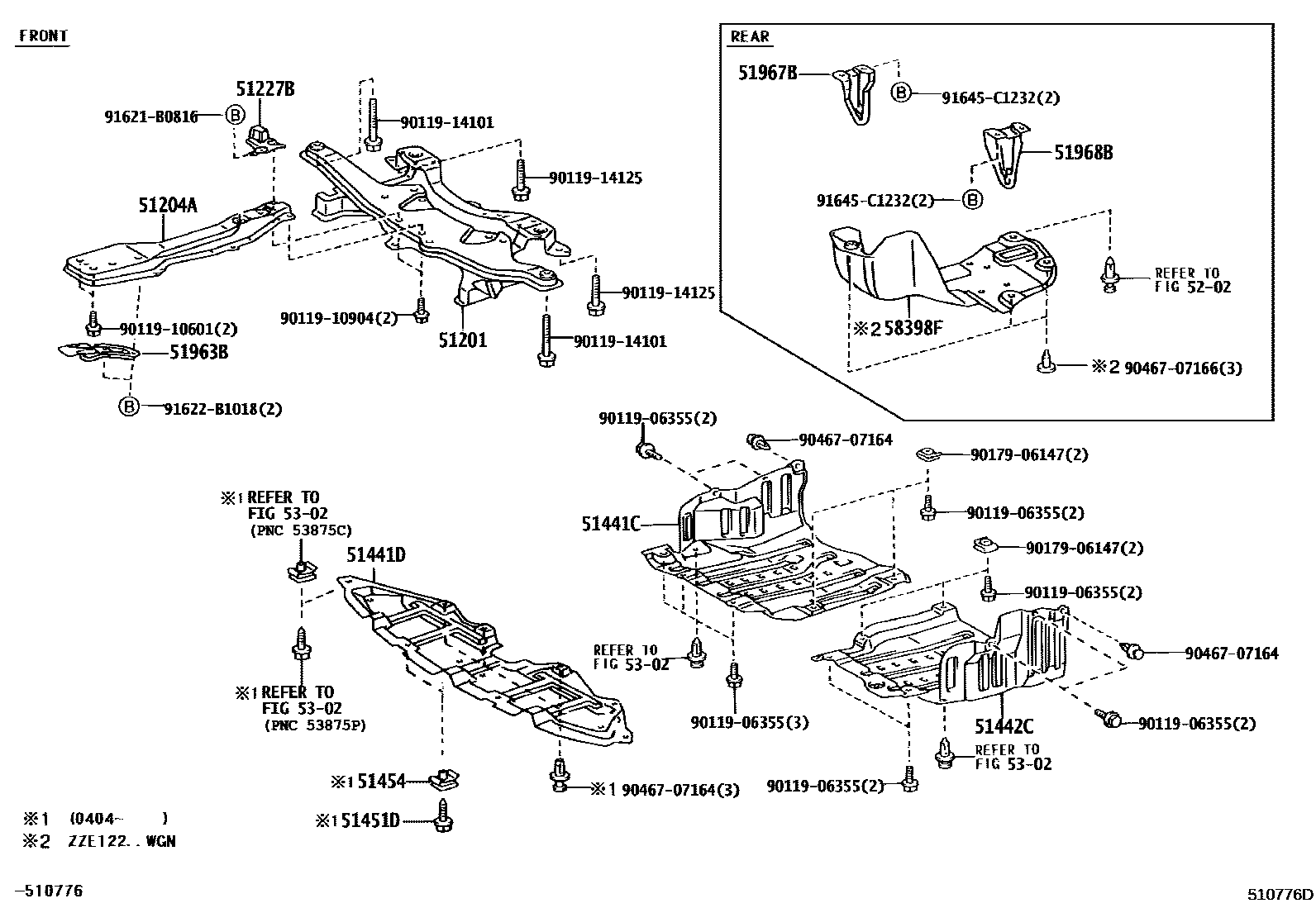

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12430 · 51201-12431 |
| 51204A | Engine center mount beam sub-assembly | 51204-12150 |
| 51227B | Front suspension beam dynamic damper | 51227-12070 · 51227-12080 · 51227-12081 |
| 51441C | Engine right bottom cover | 51408-02010 · 51408-02011 · 51408-02030 · 51408-02031 · 51441-02061 |
| 51441D | engine cover | 51451-12040 |
| 51442C | Engine left bottom cover | 51409-02010 · 51409-02011 · 51442-02091 · 51442-02101 |
| 51451D | Screw No. 1 | 90159-60488 |
| 51454 | clip | 90467-05138 |
| 51963B | Right front transport hook | 51960-13010 · 51963-12240 |
| 51967B | right rear transport hook | 51967-12270 |
| 51968B | Left rear transport hook | 51968-12170 |
| 58398F | No. 1 floor under cover | 58398-12020 |
