Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

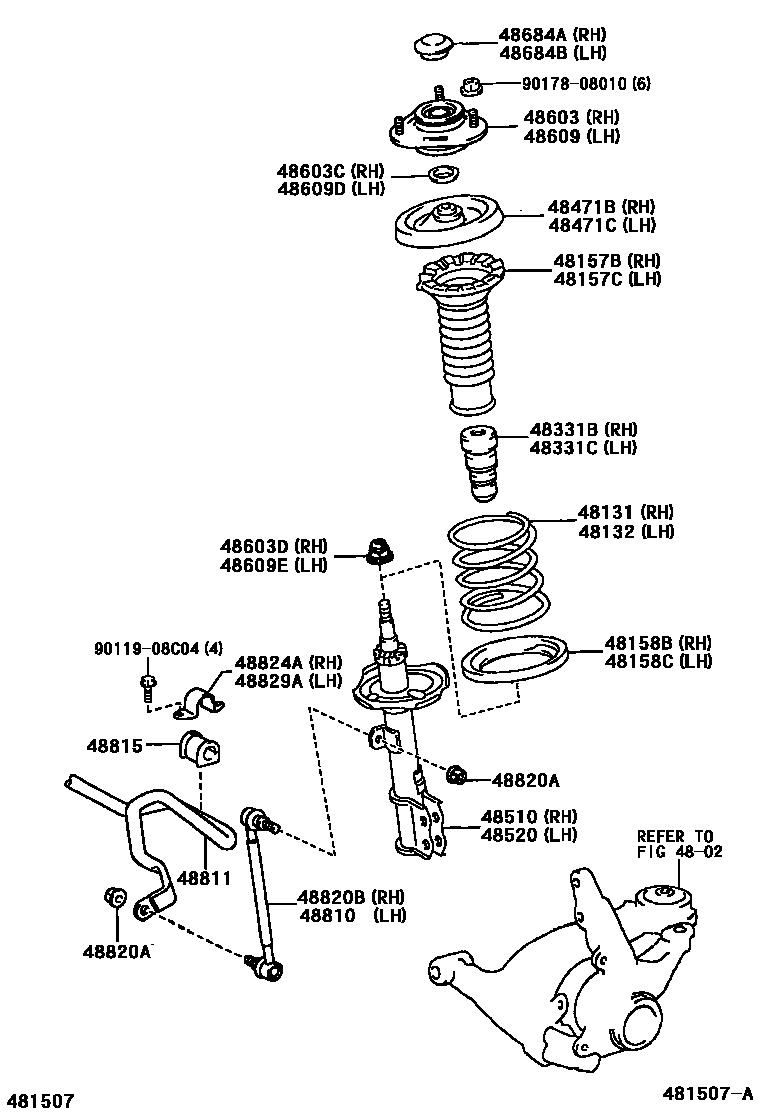

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 27 PNC and OE references.

Toyota COROLLA Front Spring & Shock Absorber EPC diagram — 481507A
Front Spring & Shock Absorber — 481507A (200205 – 999999)

PNC and OE references

PNCPart nameOE numbers
48131Right front coil spring48135-02070 · 48135-02080 · 48135-02090
48132Left front coil spring48135-02070 · 48135-02080 · 48135-02090
48157BFront coil spring upper right vibration isolation pad48157-02080
48157CFront coil spring upper left vibration isolation pad48157-02080
48158BFront coil spring lower right vibration isolation pad48158-02070
48158CFront coil spring lower left vibration isolation pad48158-02070
48331BRight front spring buffer block48331-02060
48331CLeft front spring buffer block48331-02060
48471BFront coil spring upper right seat48044-02060 · 48044-12100
48471CFront coil spring upper left seat48044-02060 · 48044-12100
48510Right front shock absorber assembly48510-02230 · 48510-02250 · 48510-02690 · 48510-02700
48520Left front shock absorber assembly48520-02230 · 48520-02250 · 48520-02690 · 48520-02700
48603Right front suspension bearing sub-assembly48609-12440
48603CDust seal (for right front suspension mount)90303-22002
48603DNut (for front mount to right front shock absorber)90179-14015
48609Left front suspension bearing sub-assembly48609-12440
48609DDust seal (for left front suspension mount)90303-22002
48609ENut (for front mount to left front shock absorber)90179-14015
48684ARight front suspension support dust cover48684-12070 · 48684-52010
48684BLeft front suspension support dust cover48684-12070 · 48684-52010
48810Left front stabilizer bar link assembly48820-02040 · 48820-47010
48811front stabilizer bar48811-02100 · 48811-02130
48815Front stabilizer bar bushing No. 148815-12340 · 48815-13040
48820ANut (for front stabilizer bar link)90179-12151
48820BRight front stabilizer bar link assembly48820-02040 · 48820-47010
48824ARight front stabilizer bar bracket No. 148824-02060 · 48824-26210
48829ALeft front stabilizer bar bracket No. 148824-02060 · 48824-26210
