Toyota COROLLA 制动配管和卡箍 — Figure 4708

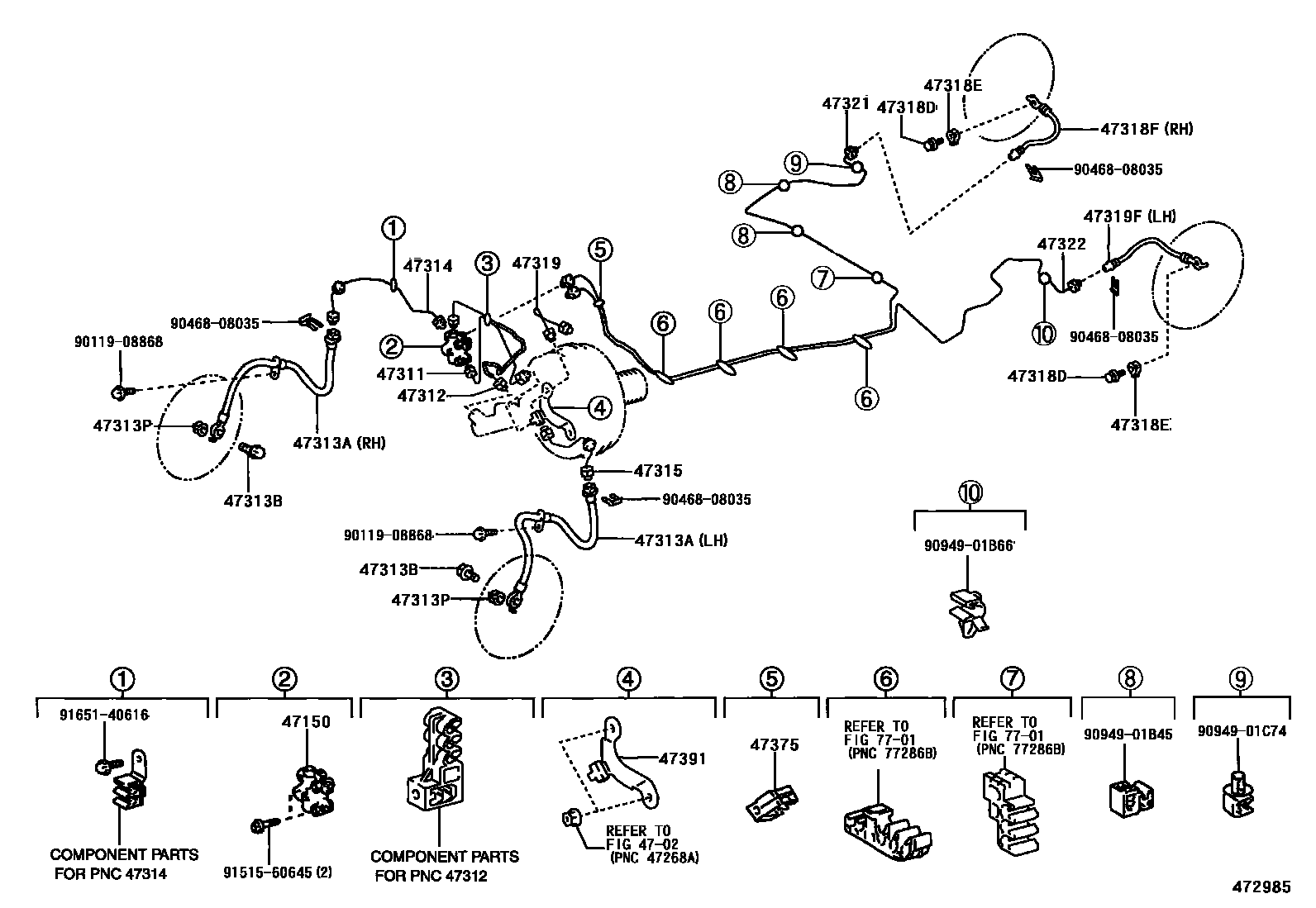

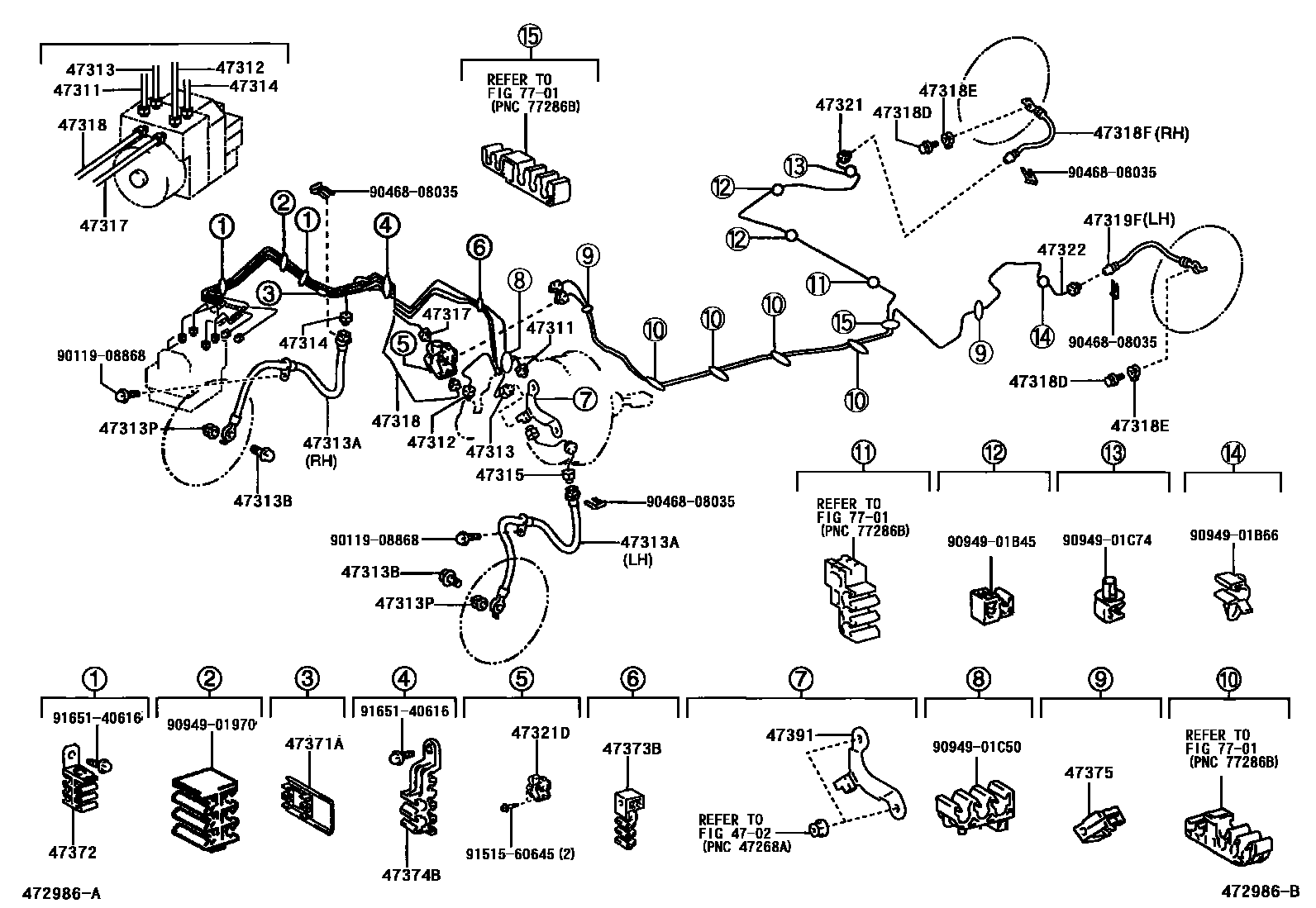

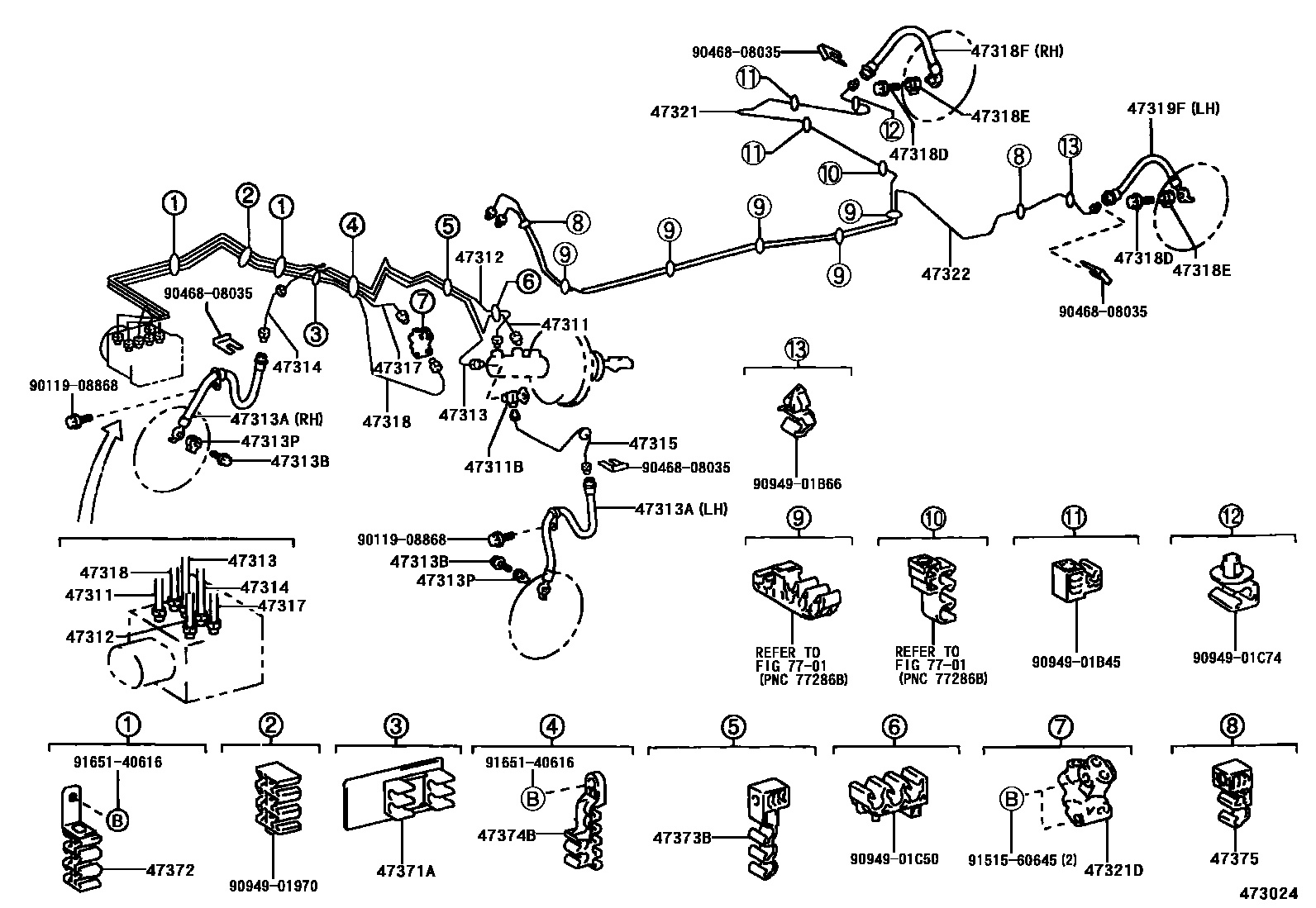

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

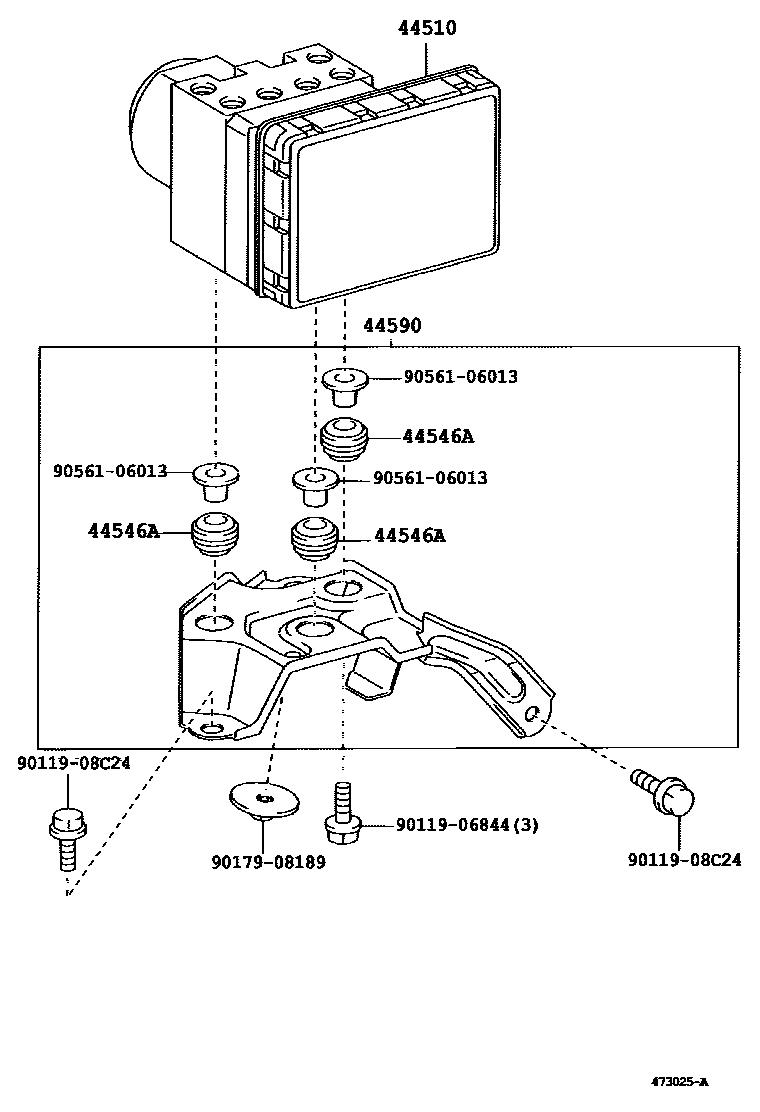

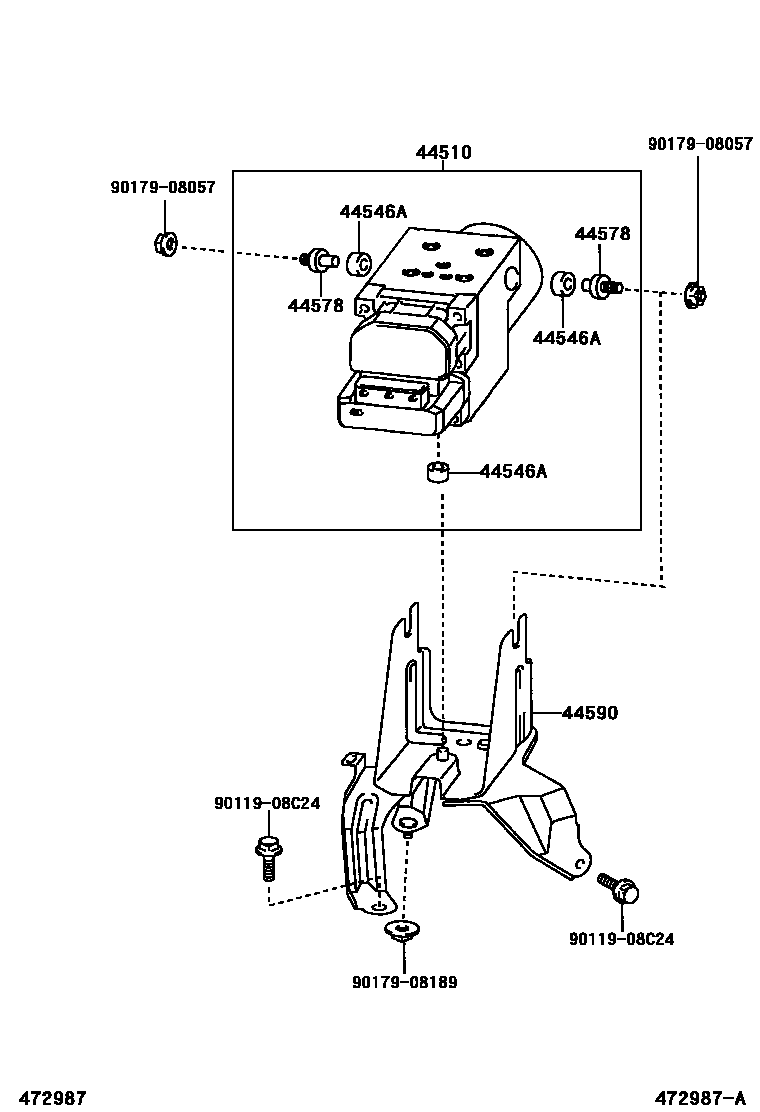

| 44510 | brake actuator assembly | 44050-02030 · 44050-13070 |
| 44546A | Brake actuator bolt cushion | 44546-05020 · 44546-12100 |
| 44578 | Brake actuator cushion bolt | 44578-05020 |
| 44590 | Brake actuator bracket assembly | 44590-02050 · 44590-12060 |
| 47150 | Proportional valve assembly | 47150-10090 |
| 47311 | No. 1 front brake pipe | 47311-02260 · 47311-02270 · 47311-02310 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90904-12051 |
| 47312 | No. 2 front brake pipe | 47312-02140 · 47312-02150 · 47312-02190 · 47312-02430 · 47312-02440 |
| 47313 | No. 3 front brake pipe | 47313-02220 · 47313-02260 |
| 47313A | No. 1 front flexible hose | 90080-94106 · 90080-94107 · 90947-02C47 · 90947-02C48 · 90947-T2002 · 90947-T2003 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02260 · 47314-02270 · 47314-02300 |
| 47315 | No. 5 front brake pipe | 47315-02190 · 47315-12510 |
| 47317 | No. 7 front brake pipe | 47317-02170 · 47317-02200 |
| 47318 | No. 8 front brake pipe | 47318-02170 · 47318-02200 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10045 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90080-94112 |
| 47319 | No. 9 front brake pipe | 47312-02070 |
| 47319F | Left rear flexible hose | 90080-94112 |
| 47321 | No. 1 rear brake pipe | 47321-12280 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90904-12088 |
| 47322 | No. 2 rear brake pipe | 47322-02320 · 47322-12400 |
| 47371A | No. 1 brake pipe clamp | 47371-12230 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47373B | No. 3 brake pipe clamp | 47371-52010 |
| 47374B | No. 4 brake pipe clamp | 47372-52010 |
| 47375 | No. 5 brake pipe clamp | 77299-32030 |
| 47391 | Brake pipe joint | 47391-02100 · 47391-02110 |
