Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

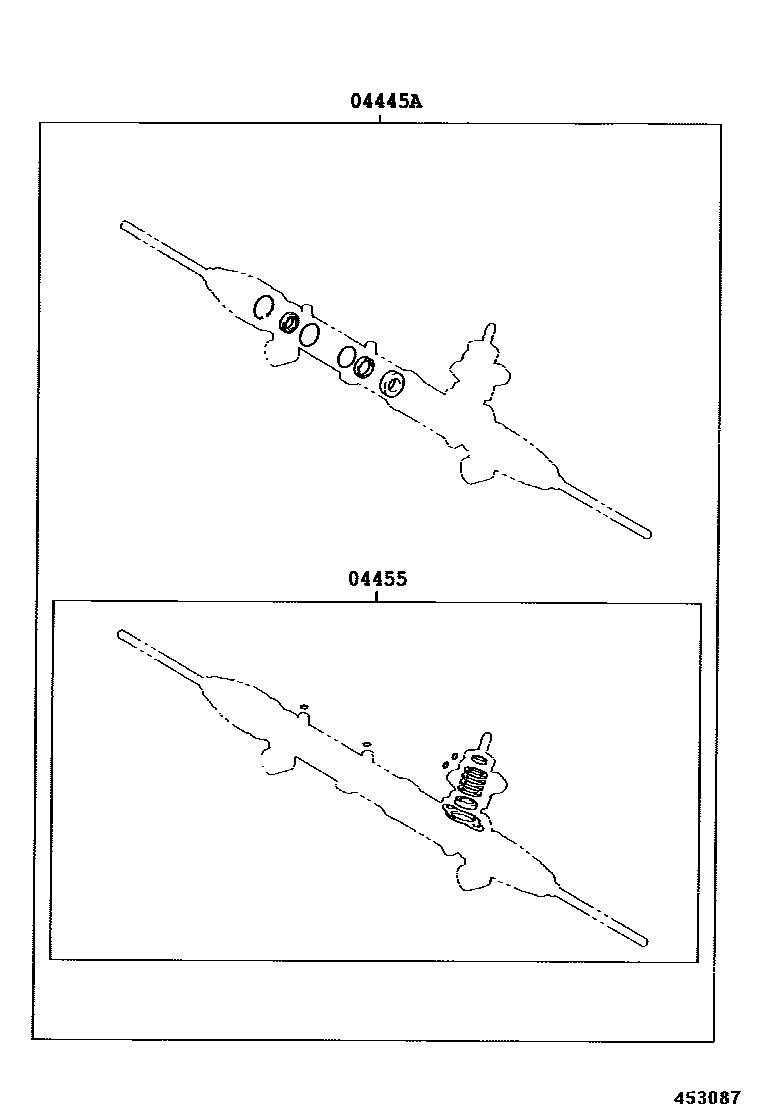

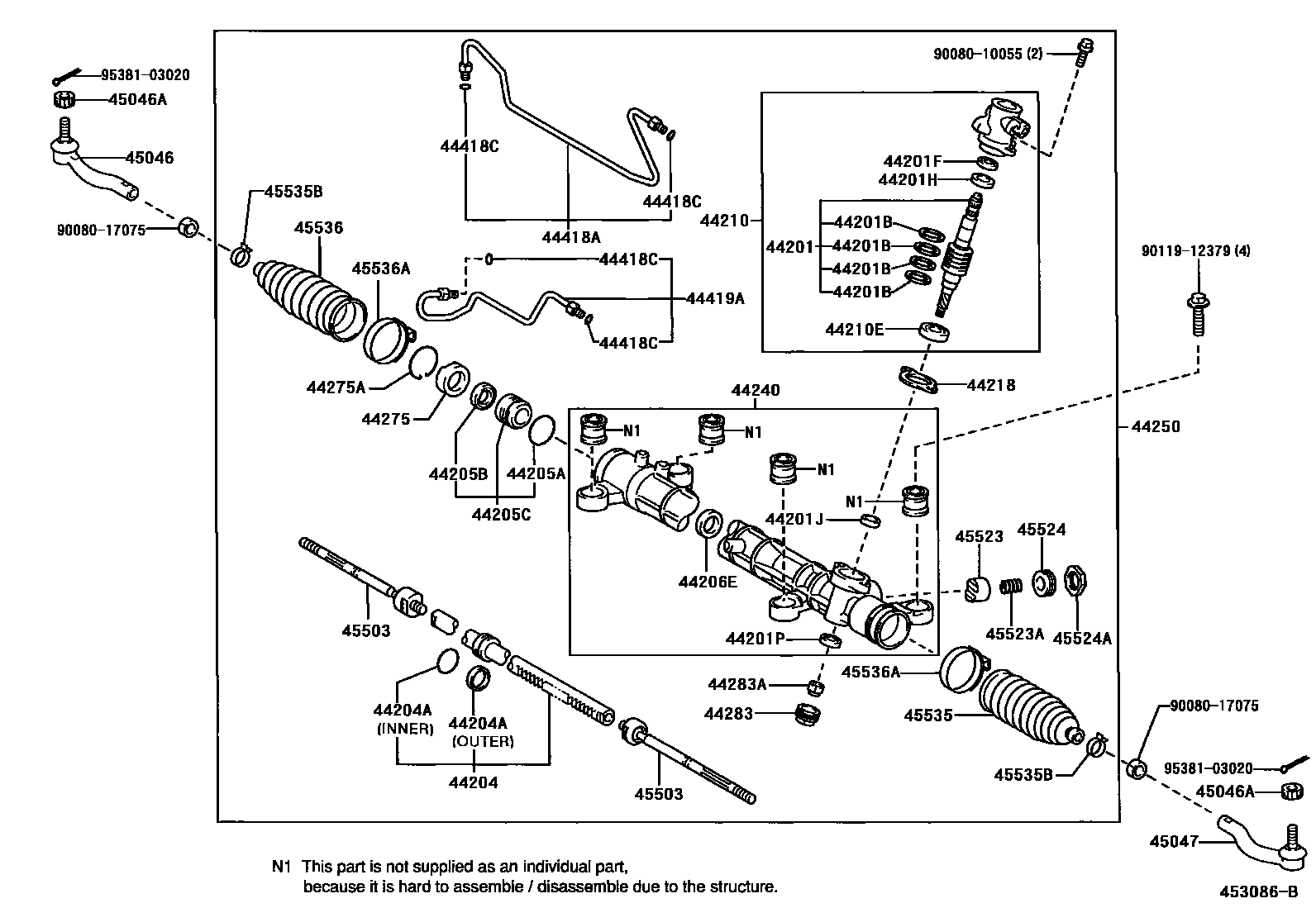

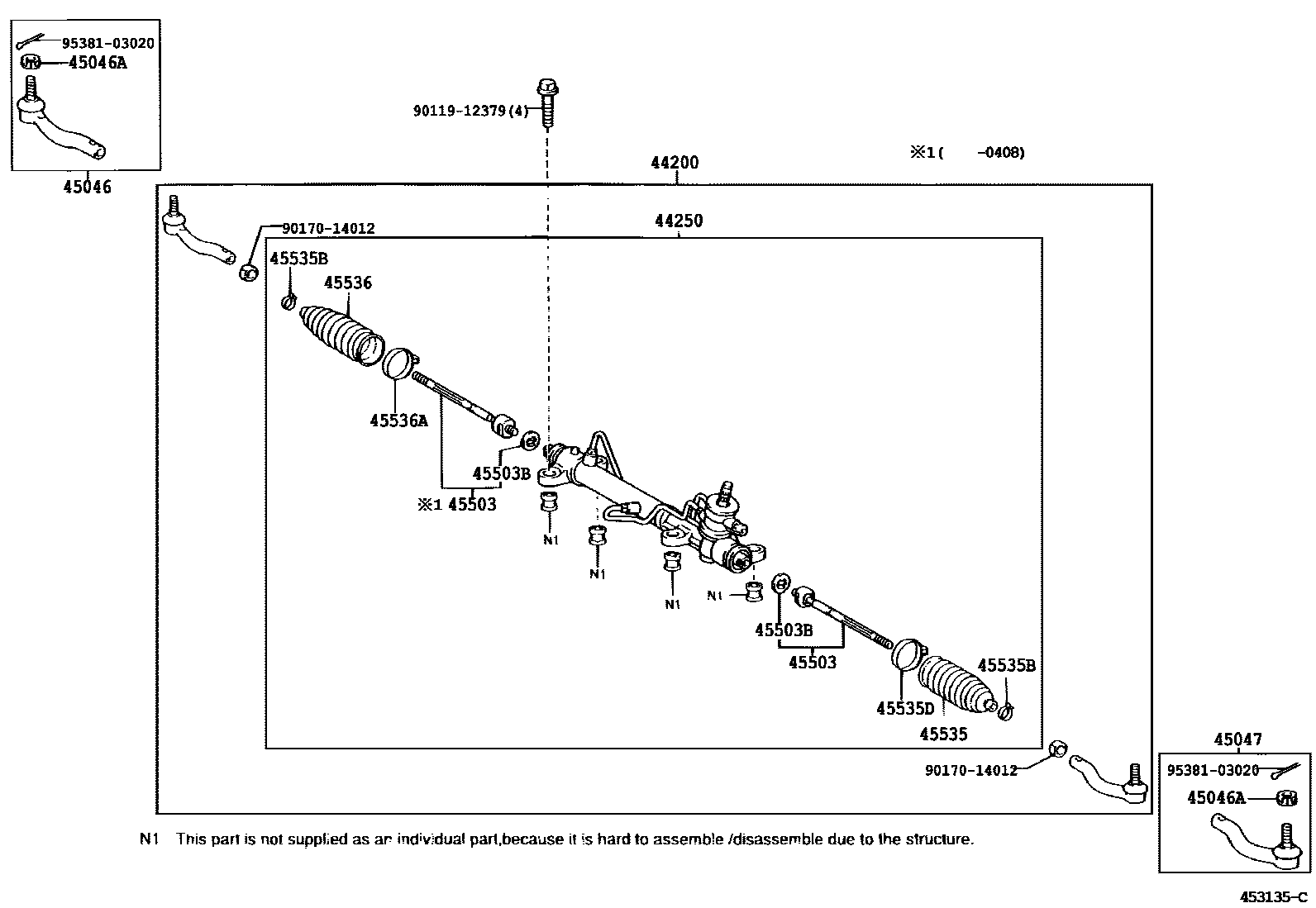

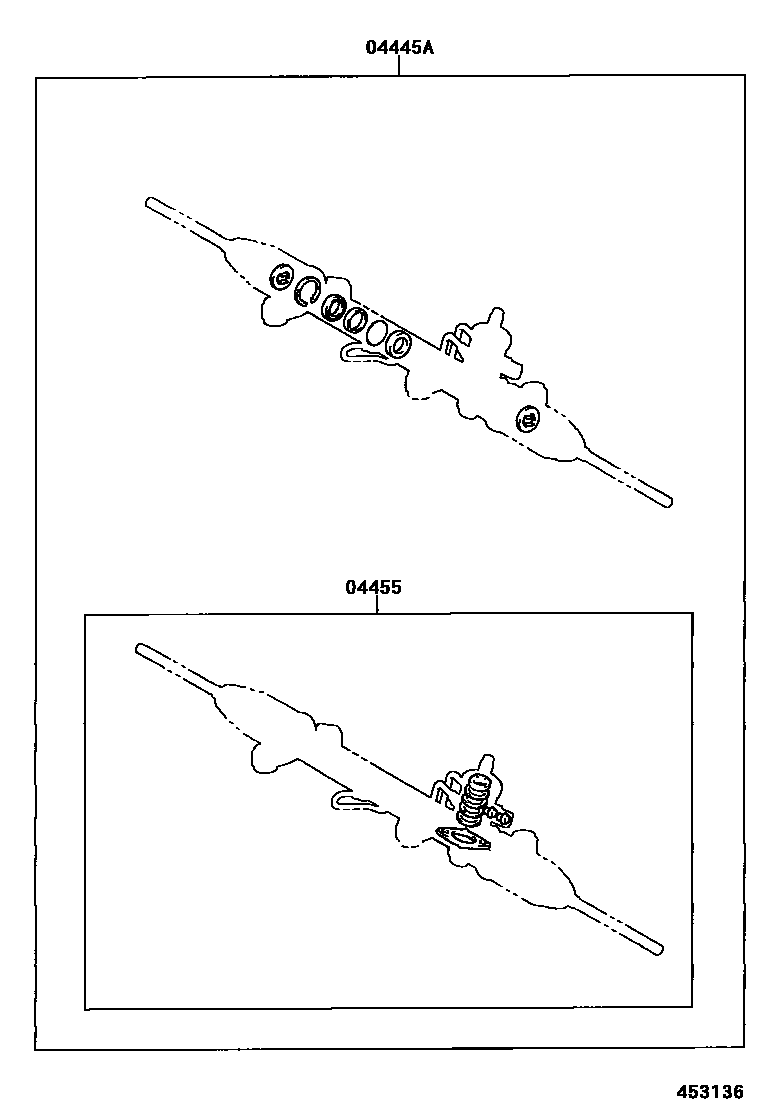

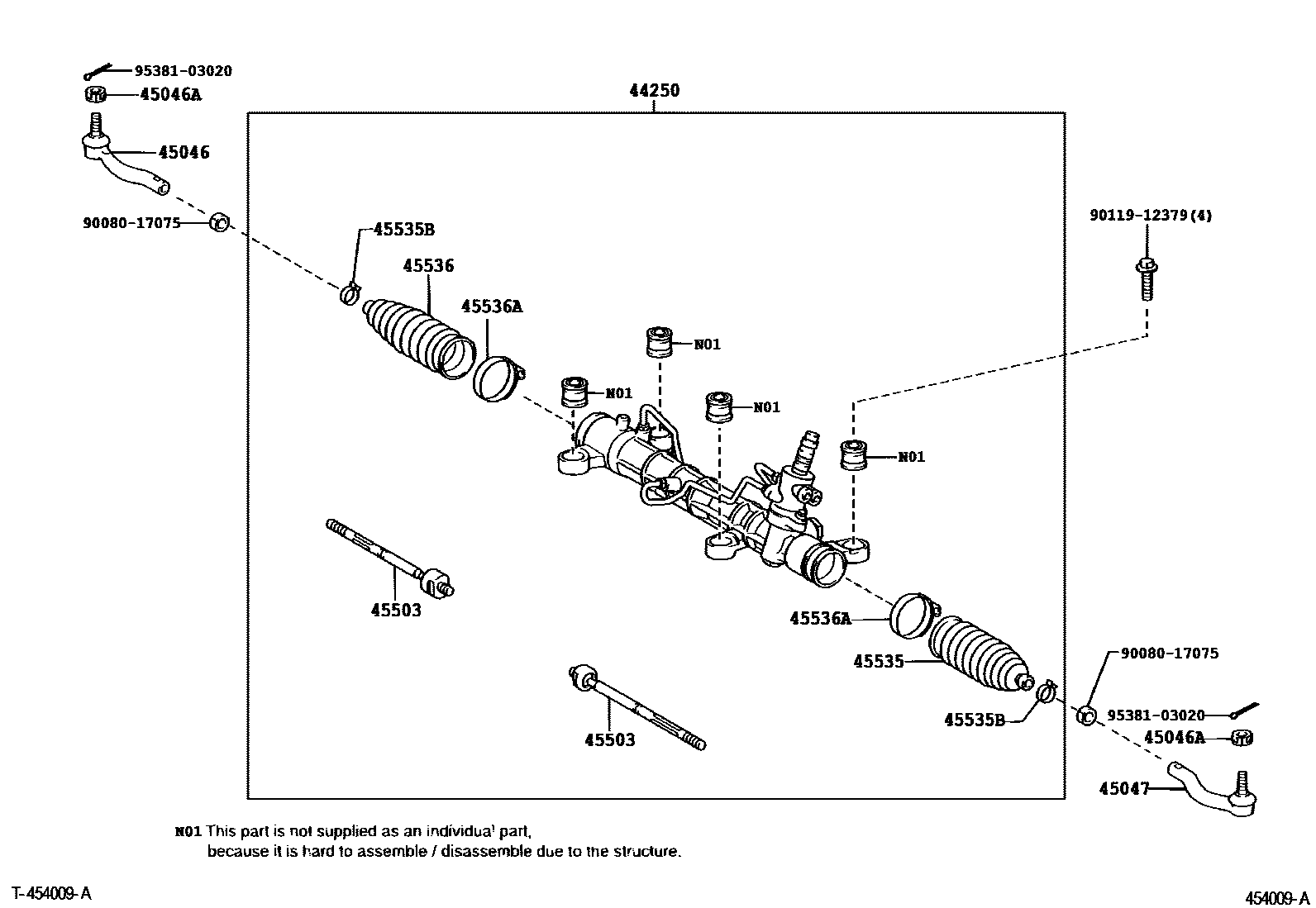

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 5 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-01020 · 04445-13010 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-06040 · 04455-44010 |
| 44200 | Power steering tie rod assembly | 44200-13030 |
| 44201 | Power steering control valve sub-assembly | 44201-02100 |
| 44201B | Spacer (for power steering control valve) | 90560-33003 |
| 44201F | Oil seal (for power steering control valve) | 44214-06010 |
| 44201H | Bearing (for upper power steering control valve) | 90080-36047 |
| 44201J | Bearing (for central power steering control valve) | 90080-36046 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12009 |
| 44204 | Power steering rack sub-assembly | 44204-02060 |
| 44204A | Ring (for steering rack piston) | 90080-30098 · 90080-56080 |
| 44205A | O-ring (for cylinder end stopper) | 90082-67001 |
| 44205B | Oil seal (for cylinder end stop) | 90080-31081 |
| 44205C | Power steering rack bushing sub-assembly | 44205-02030 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90080-31081 |
| 44210 | Power steering control valve assembly | 44210-02040 |
| 44210E | Oil seal (for power steering control valve) | 44215-06010 |
| 44218 | valve housing gasket | 44218-06010 |
| 44240 | Power steering rack housing assembly | 44240-02060 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-02160 |
| 44275 | Cylinder end stop | 44275-02040 |
| 44275A | Bore snap ring (for cylinder end stop) | 90080-52115 |
| 44283 | Rack housing cover | 44283-02010 |
| 44283A | Nut (for rack housing cover) | 90080-17078 |
| 44418A | Right steering pressure oil pipe | 44418-02020 |
| 44418C | O-ring (for steering pressure oil pipe) | 90080-30099 |
| 44419A | Left steering pressure oil pipe | 44419-02020 |
| 45046 | Right tie rod end sub-assembly | 45046-02070 · 45046-49115 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-02030 · 45047-49045 |
| 45503 | Steering rack end sub-assembly | 45503-02070 · 45503-12130 · 45503-19255 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45523 | Rack guide block (for steering gear) | 45504-12090 |
| 45523A | Spring (for steering gear rack guide block) | 90080-50214 |
| 45524 | Steering rack guide block spring cover | 45524-02010 |
| 45524A | Nut (for steering rack guide spring cover) | 90080-17089 |
| 45535 | No. 1 steering rack dust cover | 45535-02020 · 45535-13010 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46174 · 90467-19019 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-55016 |
| 45536 | No. 2 steering rack dust cover | 45535-02020 · 45535-13010 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90080-46271 · 90460-55016 |
