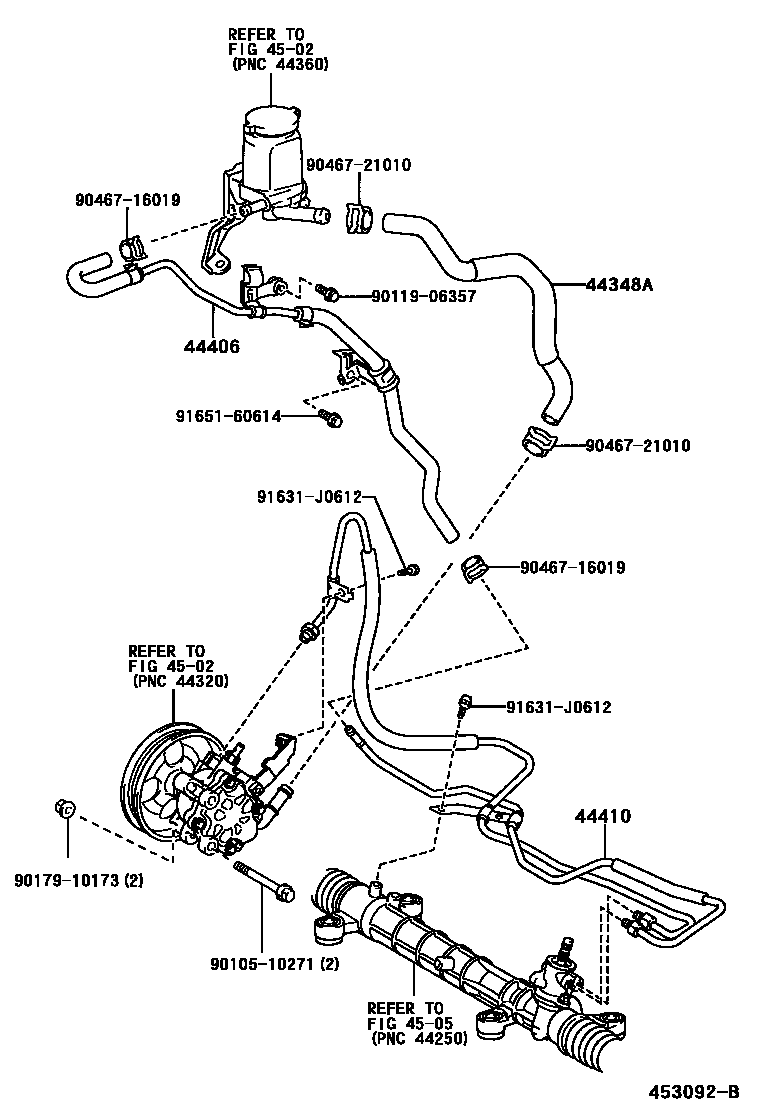

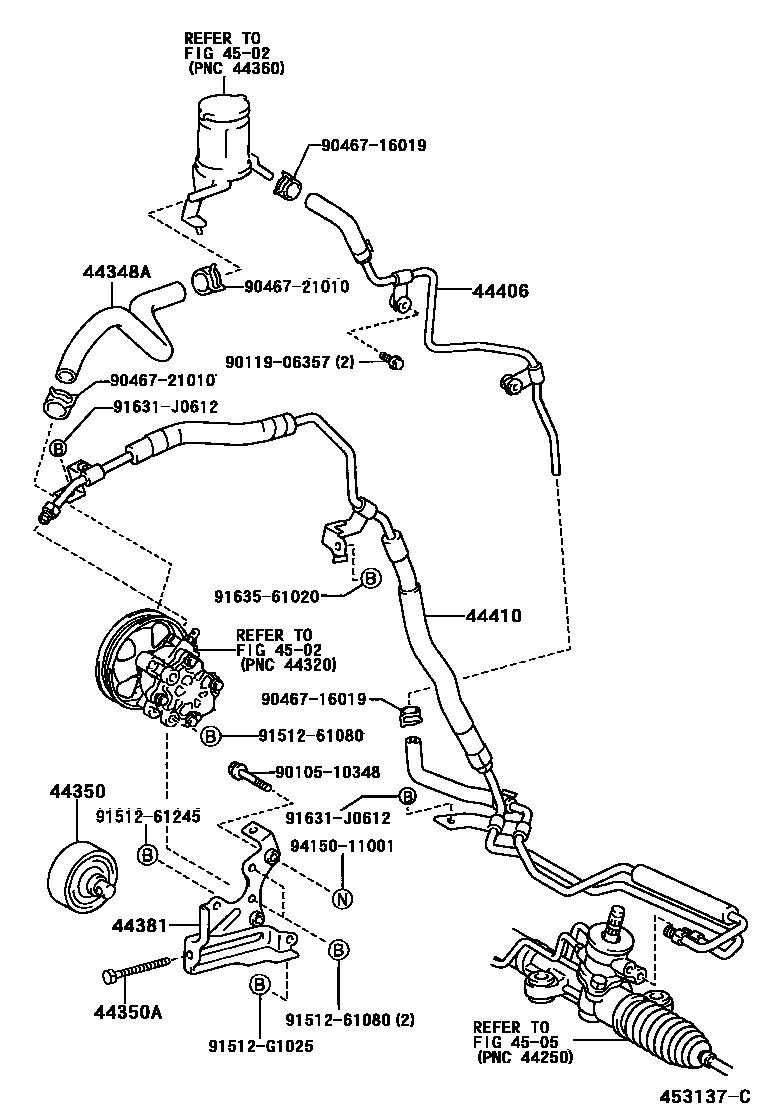

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44348A | No. 1 hose (tank to pump) | 44348-02060 · 44348-12110 |
| 44350 | Power steering idler assembly | 44350-12052 · 44350-12070 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08106 |
| 44381 | Power steering idler bracket | 44381-13010 |
| 44406 | Oil return pipe sub-assembly | 44406-02090 · 44406-12240 |
| 44410 | Pressure supply pipe assembly | 44410-02110 · 44410-13050 |
