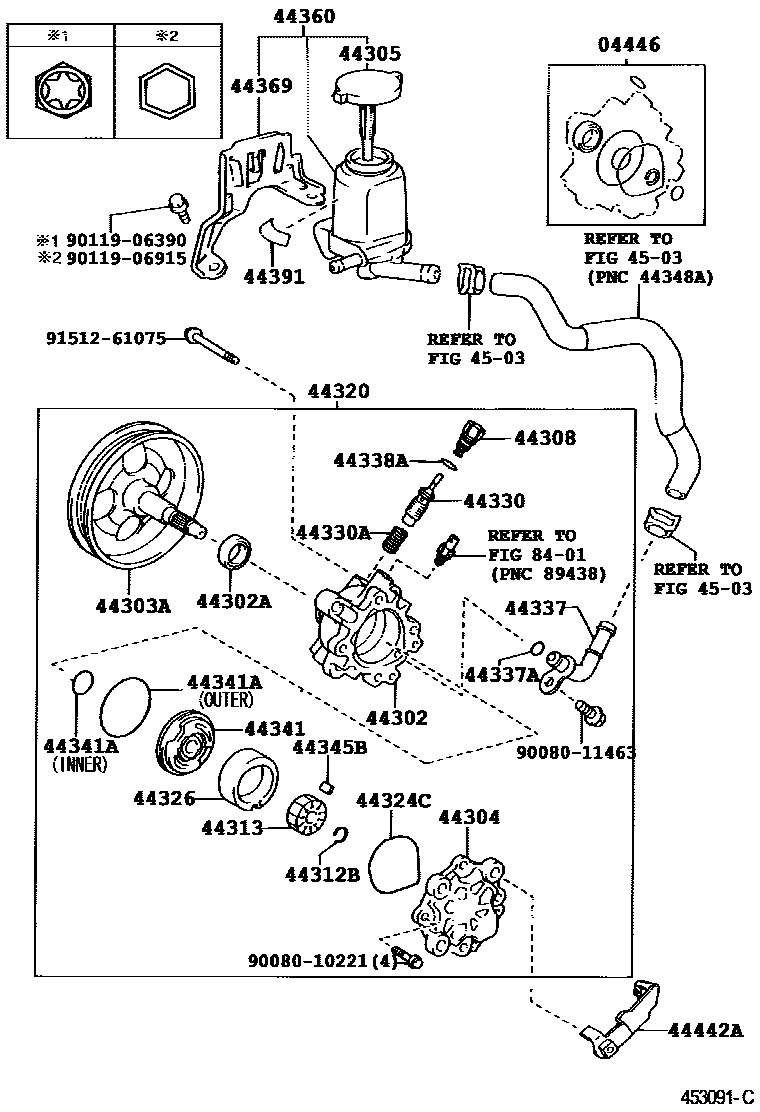

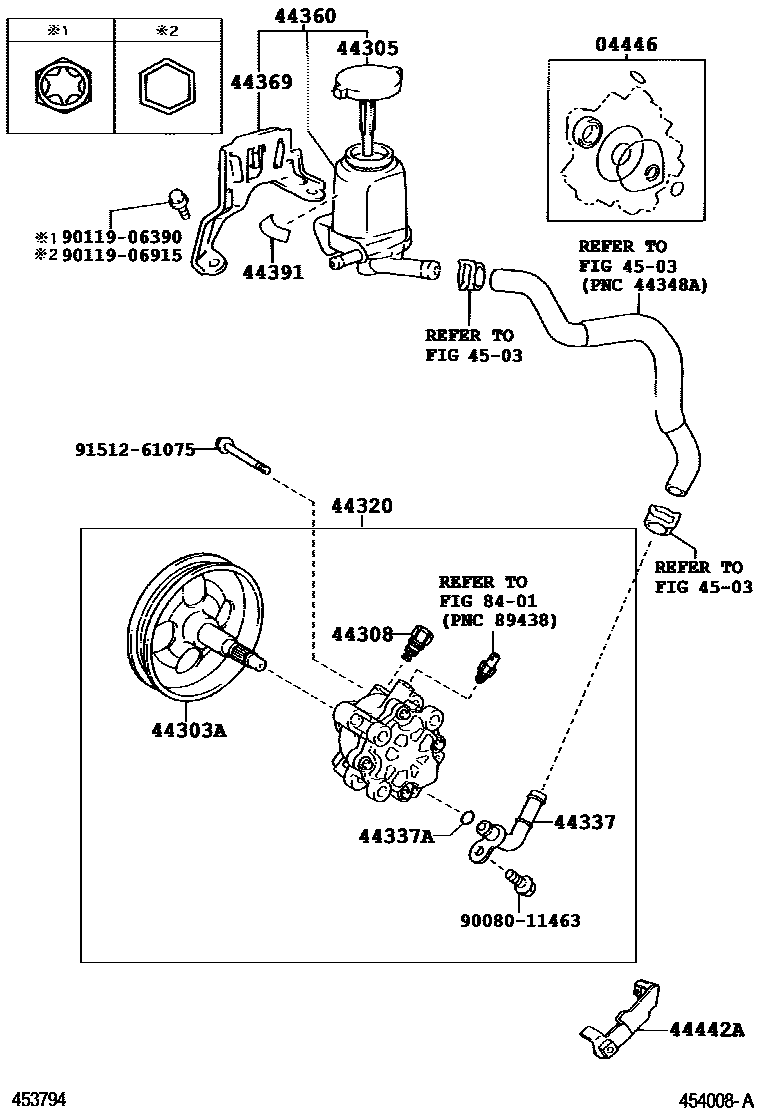

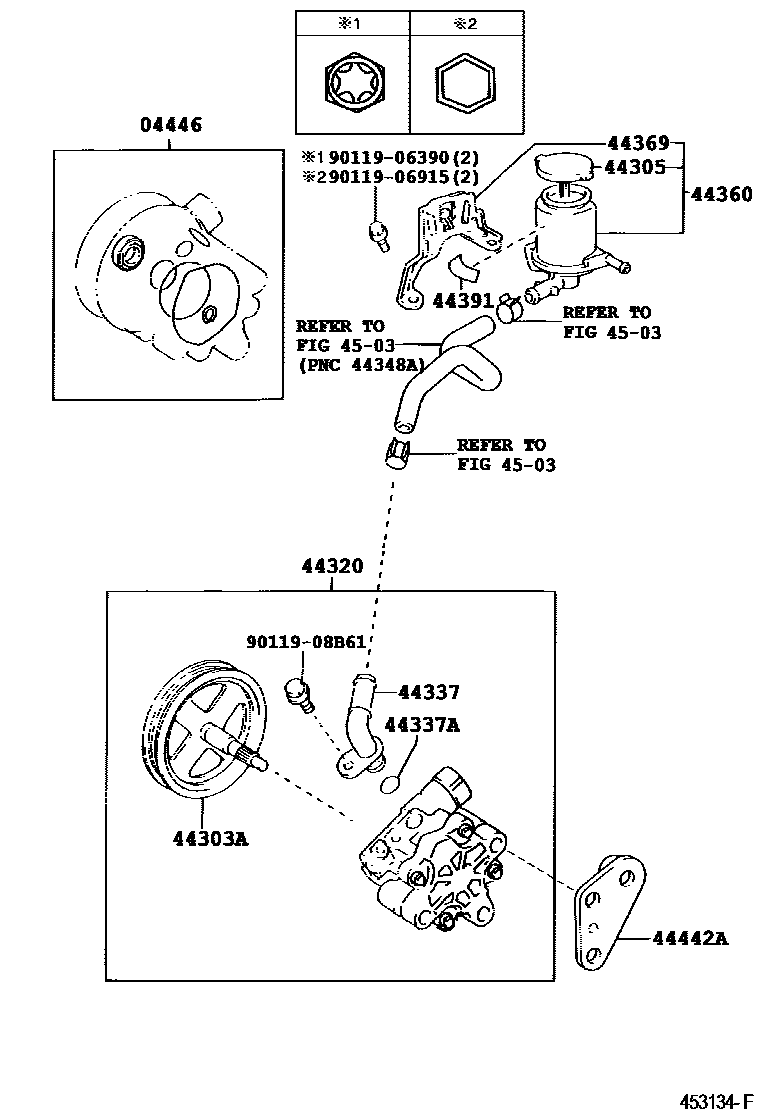

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-02070 · 04446-02080 · 04446-02140 · 04446-20170 · 04446-32050 |
| 44302 | Front vane pump housing sub-assembly | 44302-06050 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90080-31071 |
| 44303A | Shaft sub-assembly with pulley | 44303-02030 · 44303-12030 |
| 44304 | Vane pump rear housing sub-assembly | 44304-06010 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-06030 · 44305-06050 · 44305-28030 · 44305-28060 |
| 44308 | Pressure hole connector sub-assembly | 44308-02070 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90080-52033 |
| 44313 | vane pump rotor | 44313-06060 · 44313-06070 · 44313-06080 · 44313-06090 · 44313-06100 |
| 44320 | Vane pump assembly | 44310-02110 · 44310-12560 |
| 44324C | O-ring (for pump rear housing) | 44322-04010 · 90903-01007 |
| 44326 | Cam ring (for vane pumps) | 44325-02260 · 44325-02270 · 44325-02280 · 44325-02290 · 44325-02300 |
| 44330 | Flow control valve assembly | 44330-02500 · 44330-02510 · 44330-02520 · 44330-02530 · 44330-02540 · 44330-02550 |
| 44330A | Compression spring (for flow control valve) | 90080-50222 |
| 44337 | Power steering suction port connector | 44337-12130 · 44337-32110 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11020 |
| 44338A | O-ring (for pressure port connector) | 90301-18009 |
| 44341 | Vane pump front cover | 44341-32031 |
| 44341A | O-ring (for vane pump front cover) | 90301-16012 · 90301-45003 |
| 44345B | vane pump disc | 44345-06010 · 44345-06020 · 44345-06030 · 44345-06040 · 44345-06050 |
| 44360 | Vane pump oil storage tank assembly | 44360-02080 · 44360-13010 |
| 44369 | No. 1 oil storage tank bracket | 44369-02040 · 44369-12060 |
| 44391 | Power steering oil tank warning nameplate | 44391-02010 · 44391-02020 |
| 44442A | Vane pump rear bracket | 44442-12040 · 44442-13010 |
