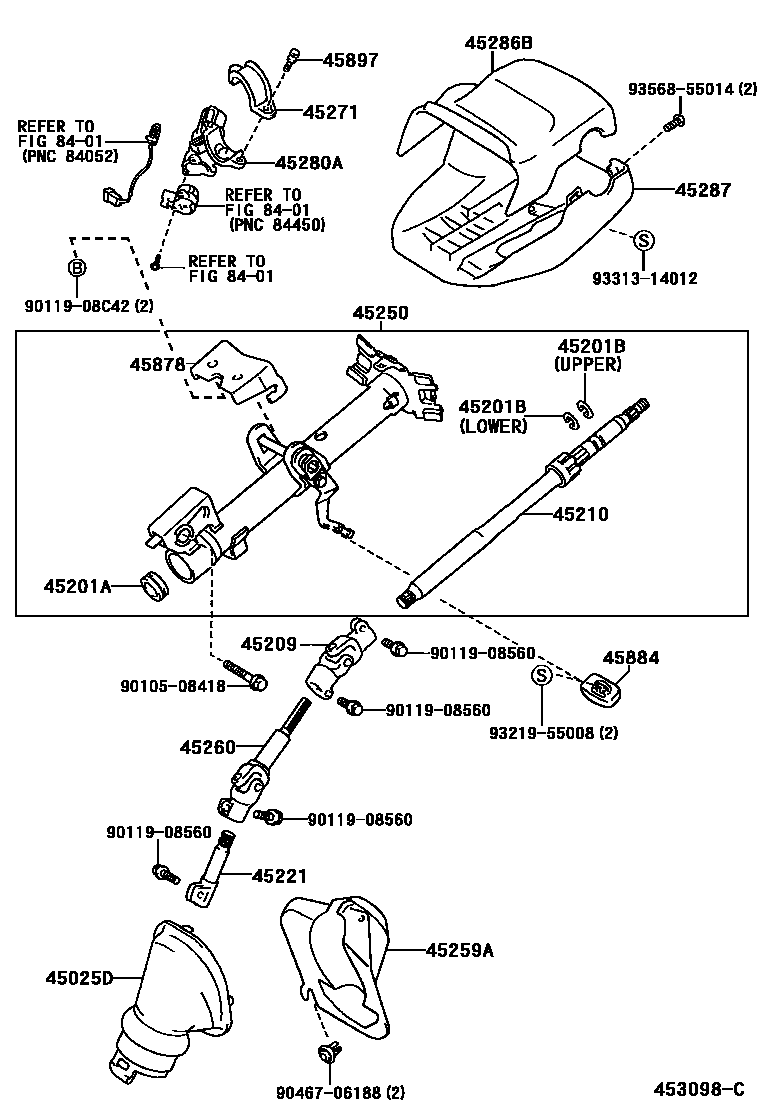

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02040 |
| 45201A | Bearings (for steering spindle) | 45274-02010 |
| 45201B | Shaft snap ring (for steering spindle) | 90080-52140 · 90080-52141 |
| 45209 | Steering slip fork sub-assembly | 45209-02090 · 45209-12180 |
| 45210 | Steering spindle assembly | 45210-13010 |
| 45221 | steering intermediate shaft | 45221-02040 · 45221-12291 |
| 45250 | Steering column assembly | 45250-02450 |
| 45259A | Steering column hole cover silencer plate | 45259-02050 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02060 · 45260-12480 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-02050 · 45280-02060 |
| 45878 | Steering column upper bracket | 45878-52010 |
| 45884 | Tilt adjustment rod bracket | 45884-13010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
