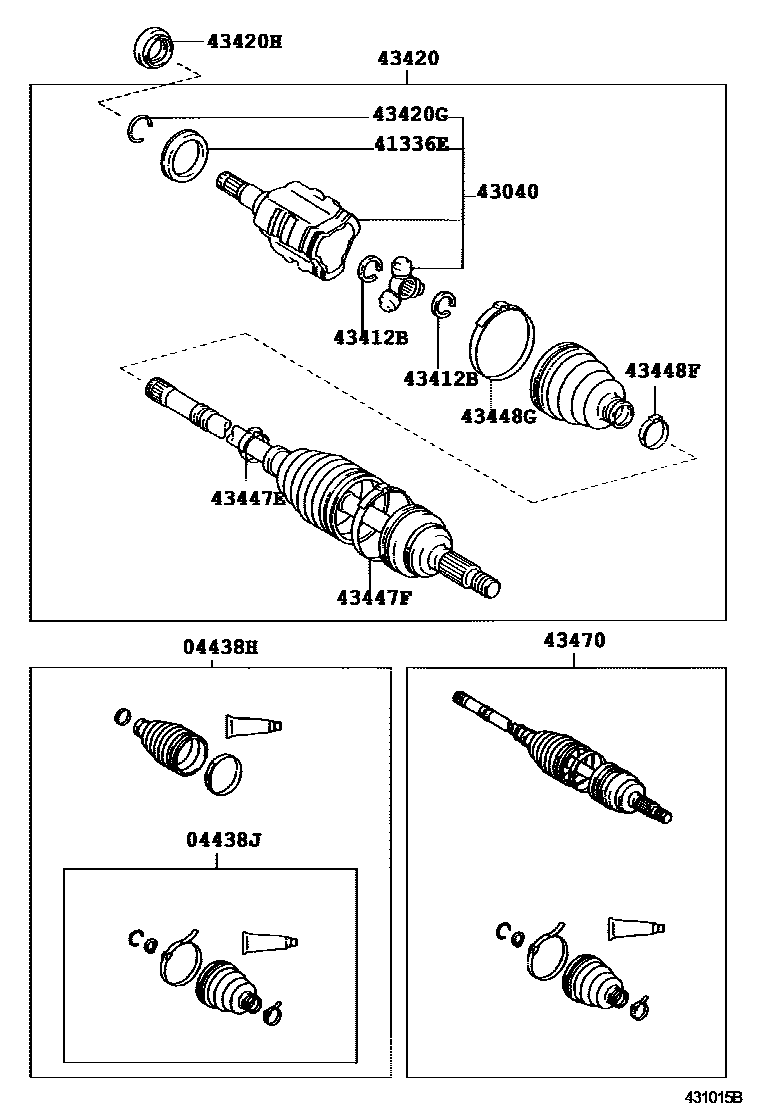

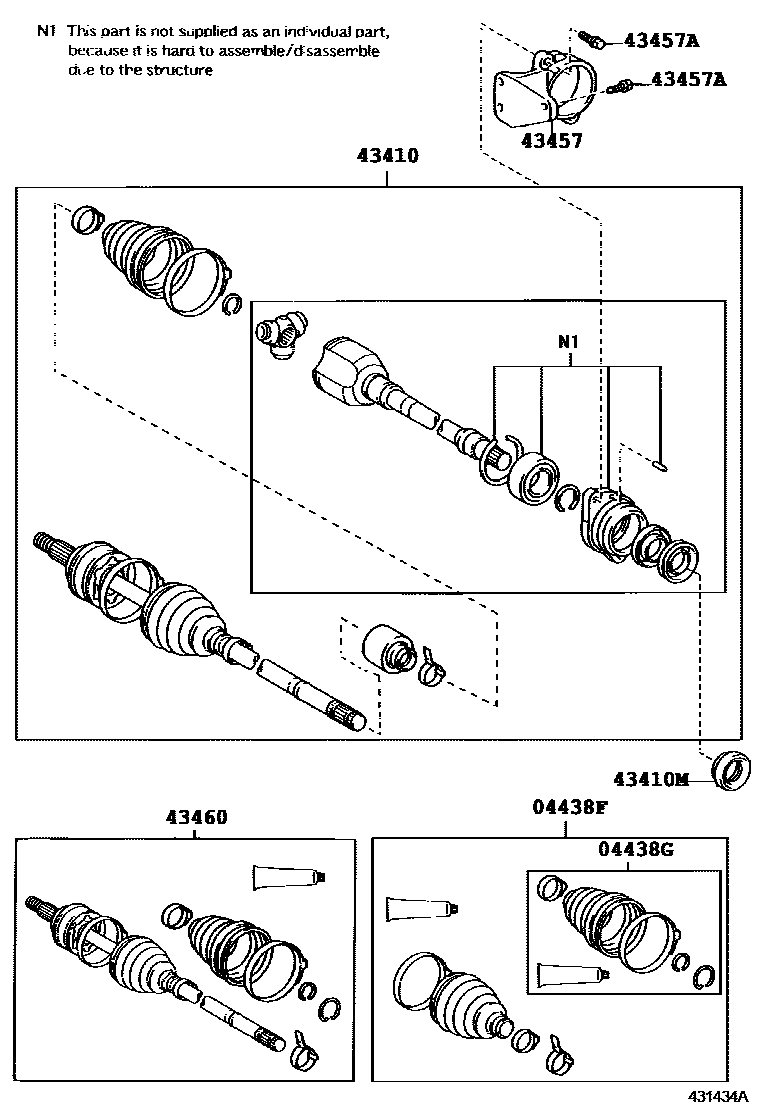

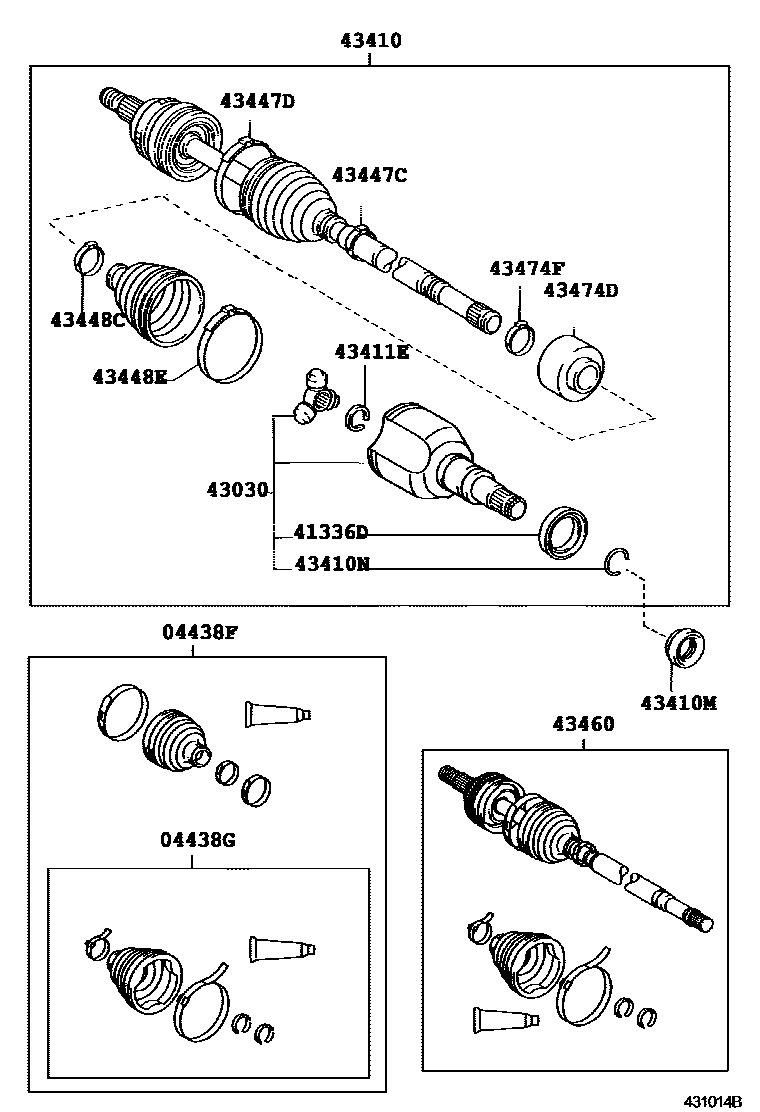

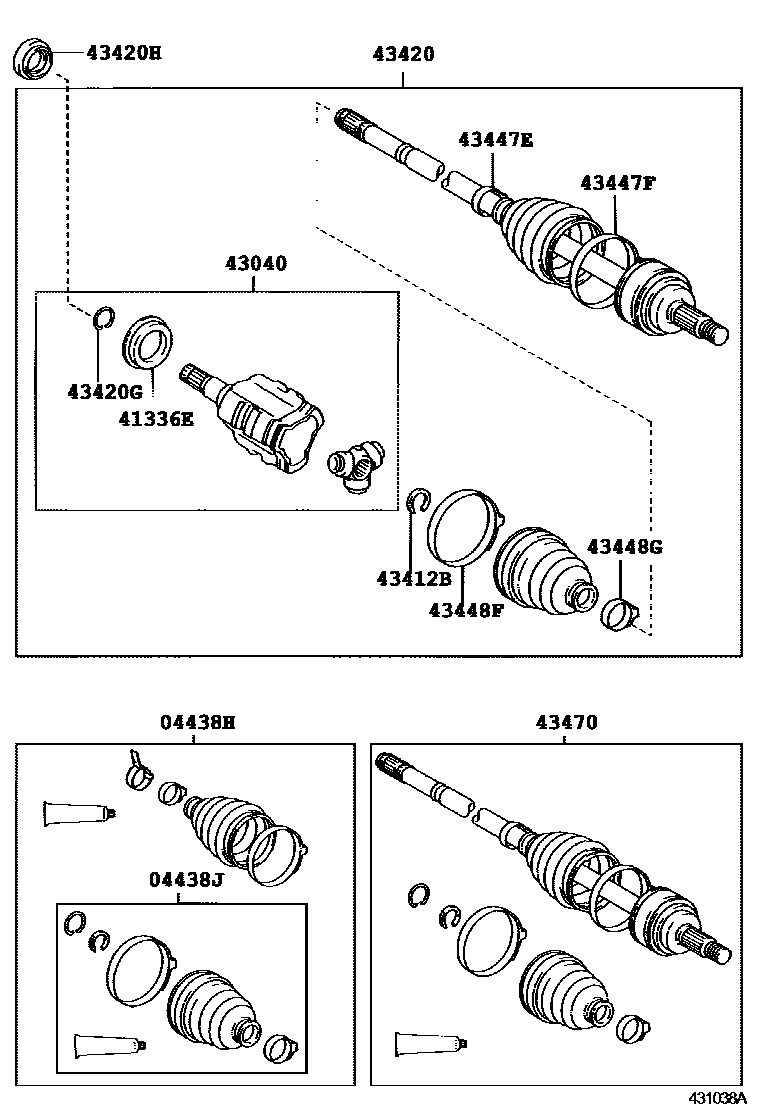

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-02081 · 04438-02220 · 04438-02240 · 04438-02260 · 04438-05080 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-02111 · 04438-02230 · 04438-02250 · 04438-02270 · 04438-05070 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-02081 · 04438-02220 · 04438-02240 · 04438-02260 · 04438-05080 · 04438-05110 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-02111 · 04438-02230 · 04438-02250 · 04438-02270 · 04438-05070 |
| 41336D | Right front driveshaft dust cover | 41336-05010 · 41336-05030 · 41336-05080 |
| 41336E | Left front driveshaft dust cover | 41336-05010 · 41336-05030 · 41336-05090 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02070 · 43040-02030 · 43040-8AA00 · 43040-8AB00 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02030 · 43040-02050 · 43040-8AA00 · 43040-8AB00 |
| 43410 | Right front driveshaft assembly | 43410-02390 · 43410-02400 · 43410-02410 · 43410-02420 · 43410-02430 · 43410-02510 · 43410-02520 · 43410-02530 |
| 43410M | Front drive shaft right oil seal | 90311-34023 · 90311-34033 · 90311-35051 · 90311-35055 · 90311-35057 · 90311-40025 · 90311-40030 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52055 · 90080-52056 · 90080-52106 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02020 · 90080-52093 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02020 · 90080-52093 |
| 43420 | Left front drive shaft assembly | 43420-02420 · 43420-02430 · 43420-02440 · 43420-02450 · 43420-02460 · 43420-02540 · 43420-02550 · 43420-02560 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 · 90080-52055 · 90080-52056 |
| 43420H | Front drive shaft left oil seal | 90311-34026 · 90311-34028 · 90311-34034 · 90311-35044 · 90311-35054 · 90311-35058 · 90311-50024 · 90311-50035 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02110 · 42345-05070 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02100 · 42345-05080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02110 · 42345-05070 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02100 · 42345-05080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02080 · 42345-05040 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02090 · 42345-05030 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02080 · 42345-05040 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02090 · 42345-05030 |
| 43457 | drive shaft bearing bracket | 43457-20070 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 |
| 43458 | Front drive shaft dust cover | 43458-05020 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09A00 · 43460-09A01 · 43460-09A02 · 43460-09A03 · 43460-09A04 · 43460-09A05 · 43460-09A06 · 43460-09A11 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09A15 · 43470-09A22 · 43470-09A23 · 43470-09A24 · 43470-09A25 · 43470-09A26 · 43470-09A27 · 43470-09A28 · 43470-09A34 |
| 43474 | drive shaft damper | 43474-02110 |
| 43474A | Clamp (for securing driveshaft damper) | 90080-46154 |
| 43474D | Right front driveshaft shock absorber | 43474-02080 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-05110 |
