Toyota COROLLA 车轮和车轮盖 — Figure 4103

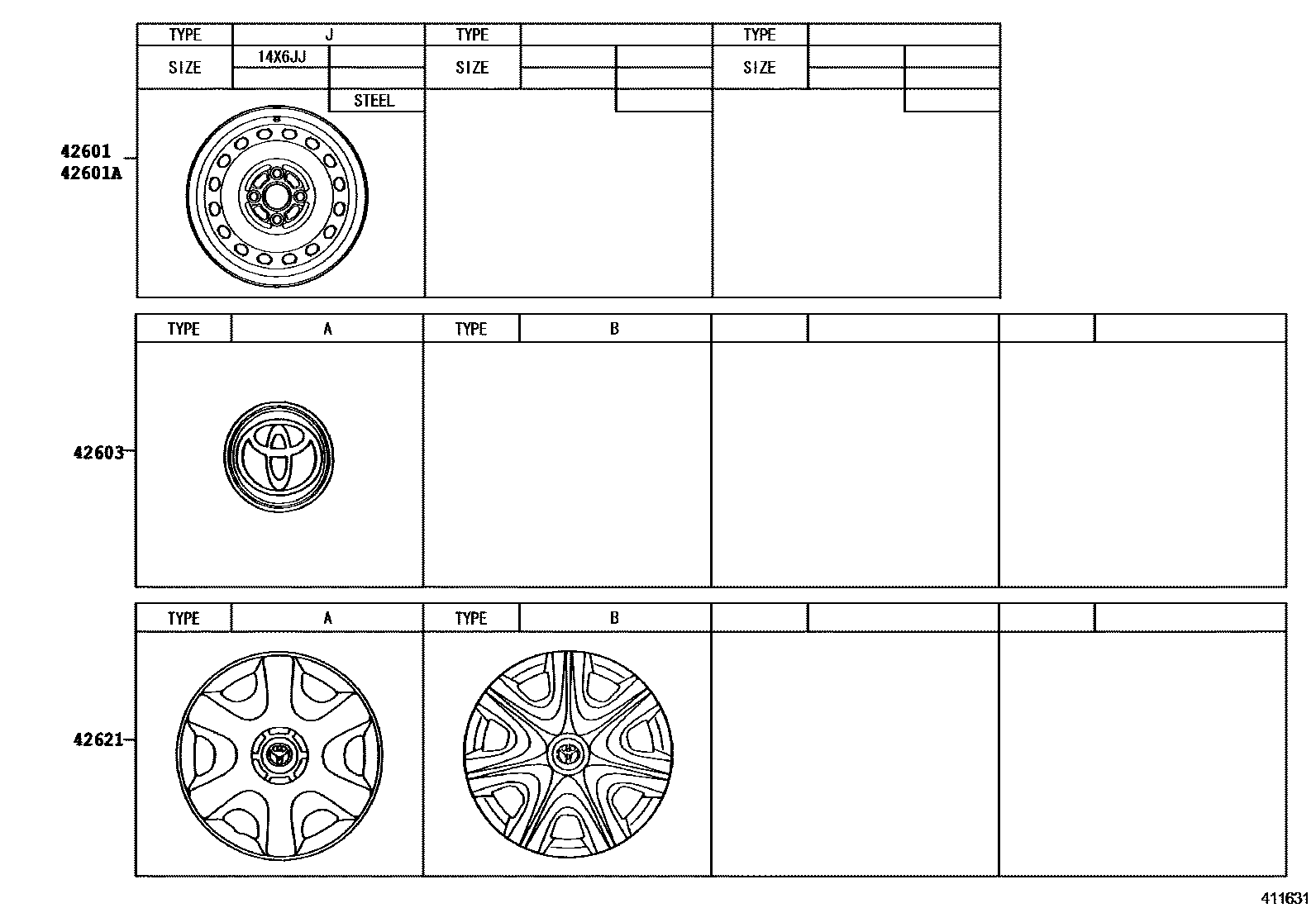

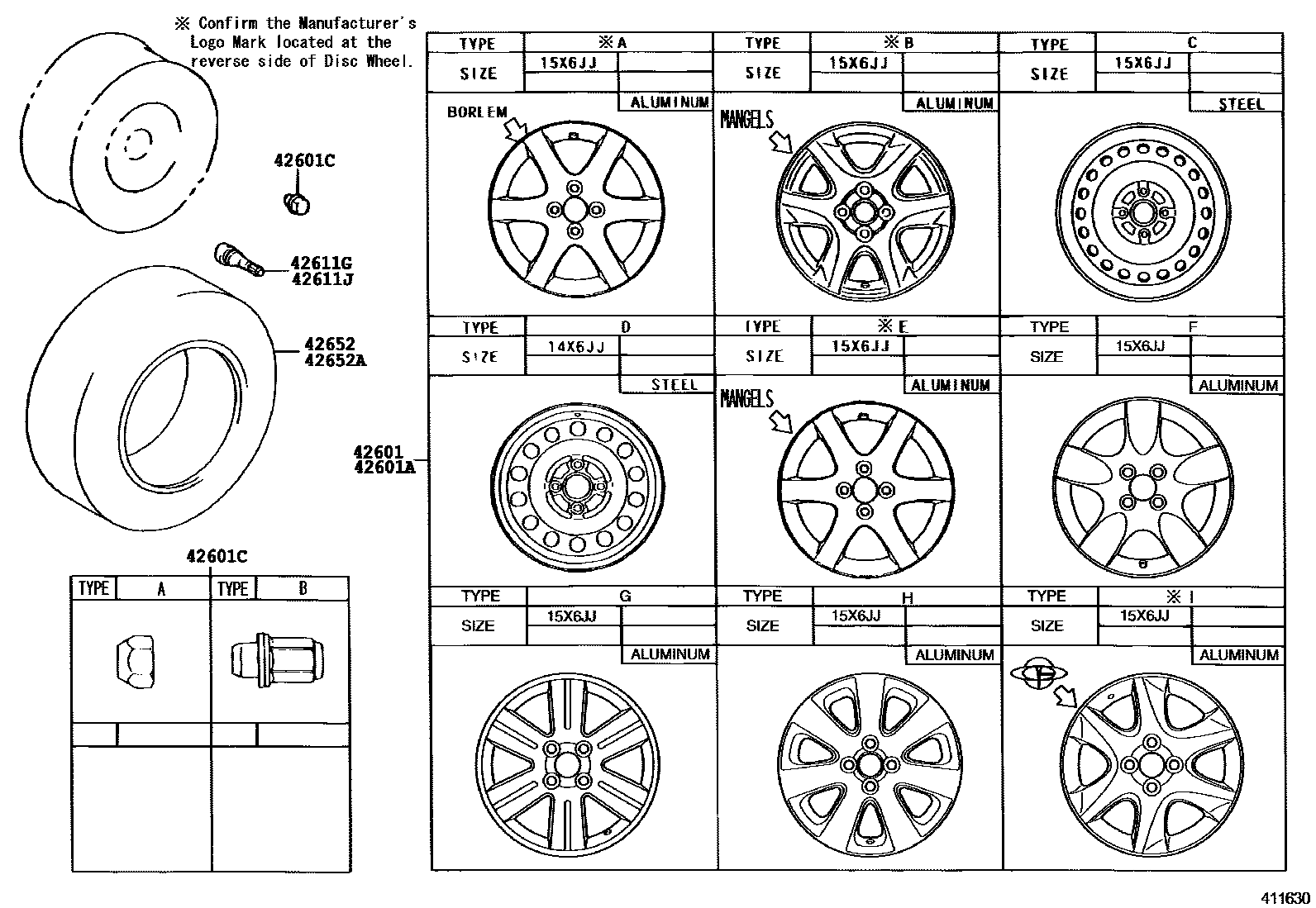

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-02490 · 42611-02500 · 42611-02510 · 42611-02580 · 42611-02590 · 42611-02660 · 42611-02720 · 42611-02730 · 42611-02A60 |
| 42601A | Spoke wheel (for spare tire) | 42611-02490 · 42611-02500 · 42611-02520 · 42611-02580 · 42611-02590 · 42611-02660 · 42611-02720 · 42611-02730 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01058 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02160 · 42603-32210 |
| 42611G | Valve (for tubeless tires) | 90080-94179 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94179 · 90942-05009 |
| 42621 | wheel cover | 42602-02140 · 42602-02190 · 42602-12670 |
| 42652 | tires | 42652-02710 · 42652-02730 · 42652-02880 |
| 42652A | Tire (for Spare Wheel) | 42652-02710 · 42652-02730 · 42652-02880 |
