Toyota COROLLA 速度表从动齿轮(ATM) — Figure 3505

Toyota COROLLA EPC diagram 3505, 速度表从动齿轮(ATM), with 1 images and 2 PNC and OE references.

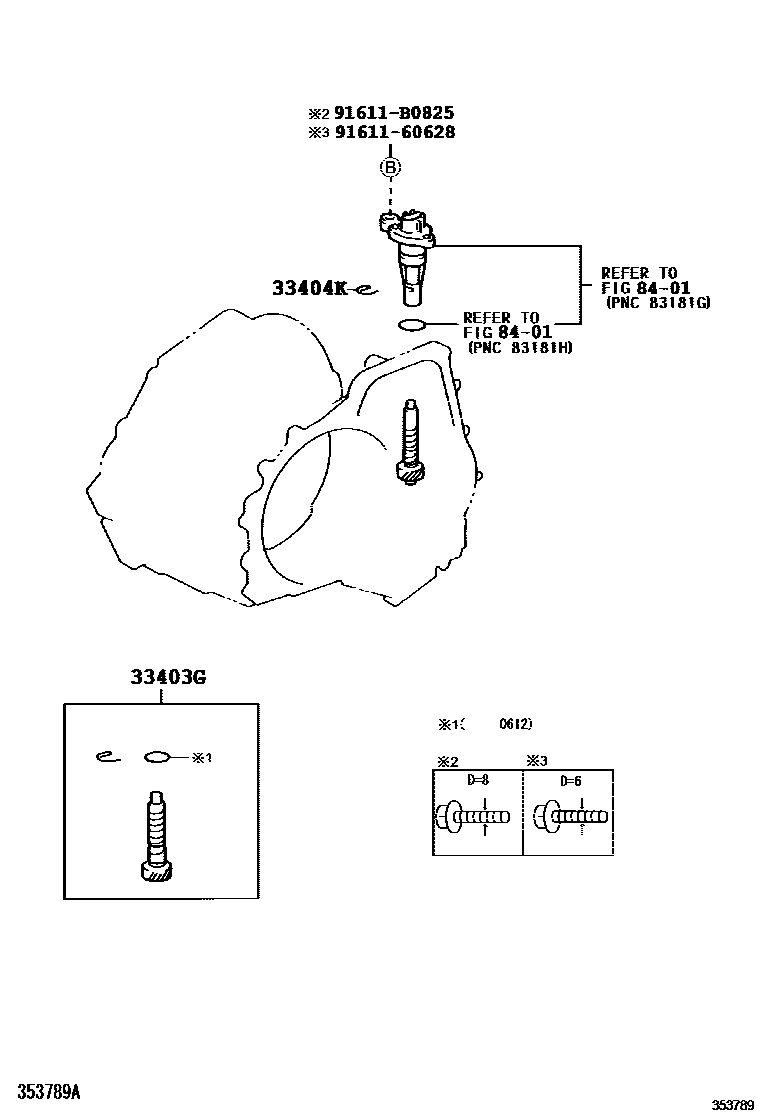

Toyota COROLLA 速度表从动齿轮(ATM) EPC diagram — 353789F
速度表从动齿轮(ATM) — 353789F (200205 – 999999)

PNC and OE references

PNCPart nameOE numbers
33403GSpeedometer driven gear sub-assembly (ATM)33403-19455 · 33403-29395 · 33403-29525
33404KClamp (for automatic transmission speedometer shaft sleeve)90468-12005
