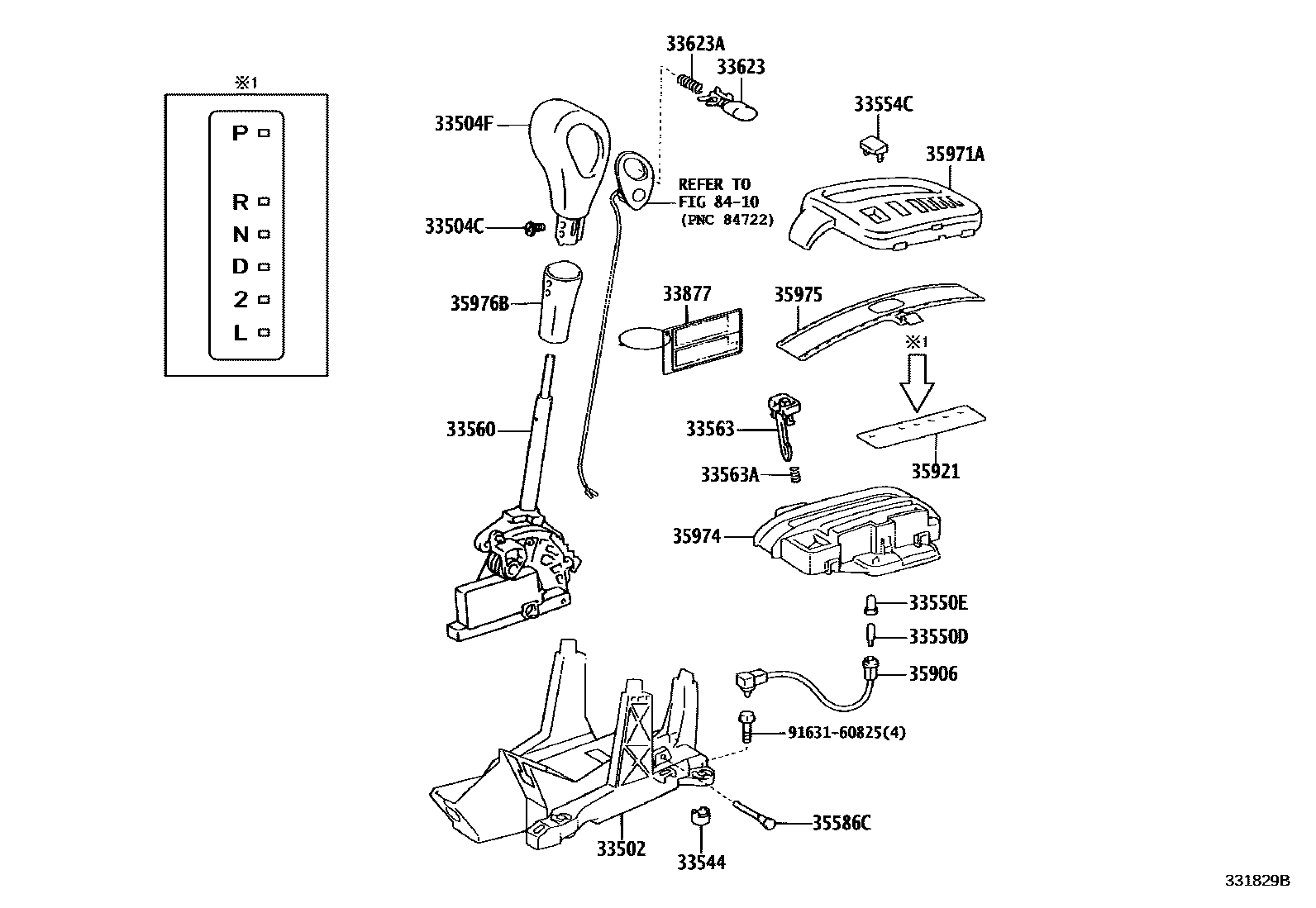

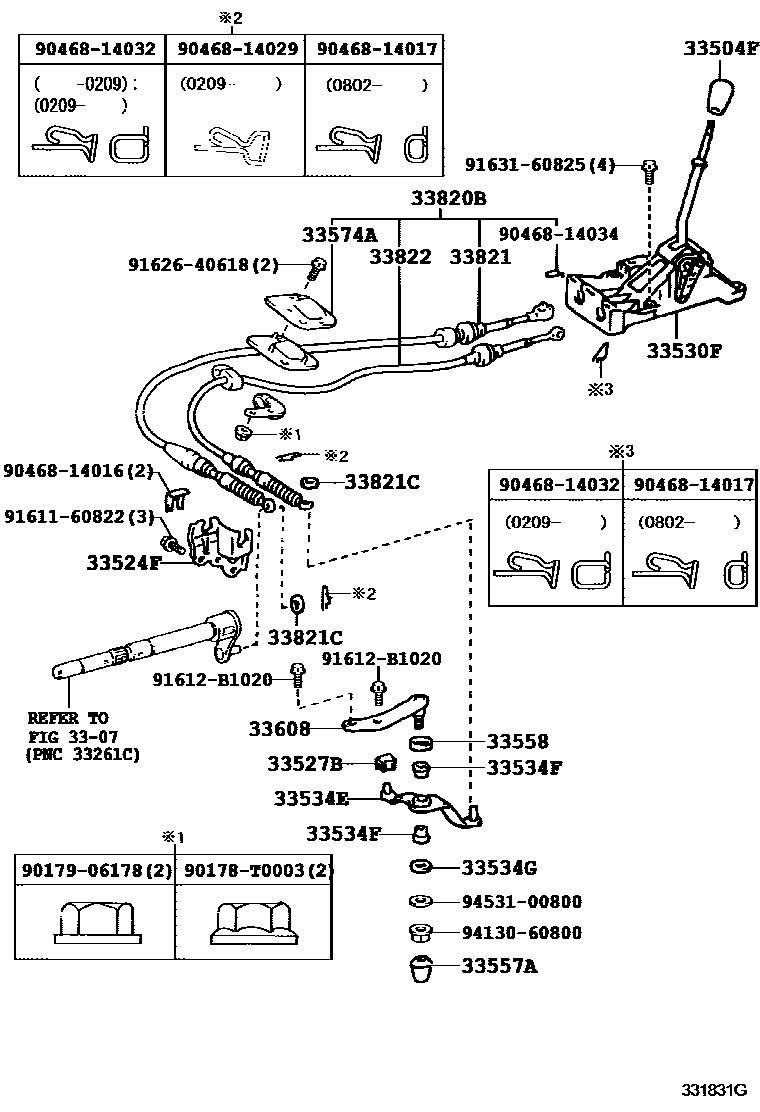

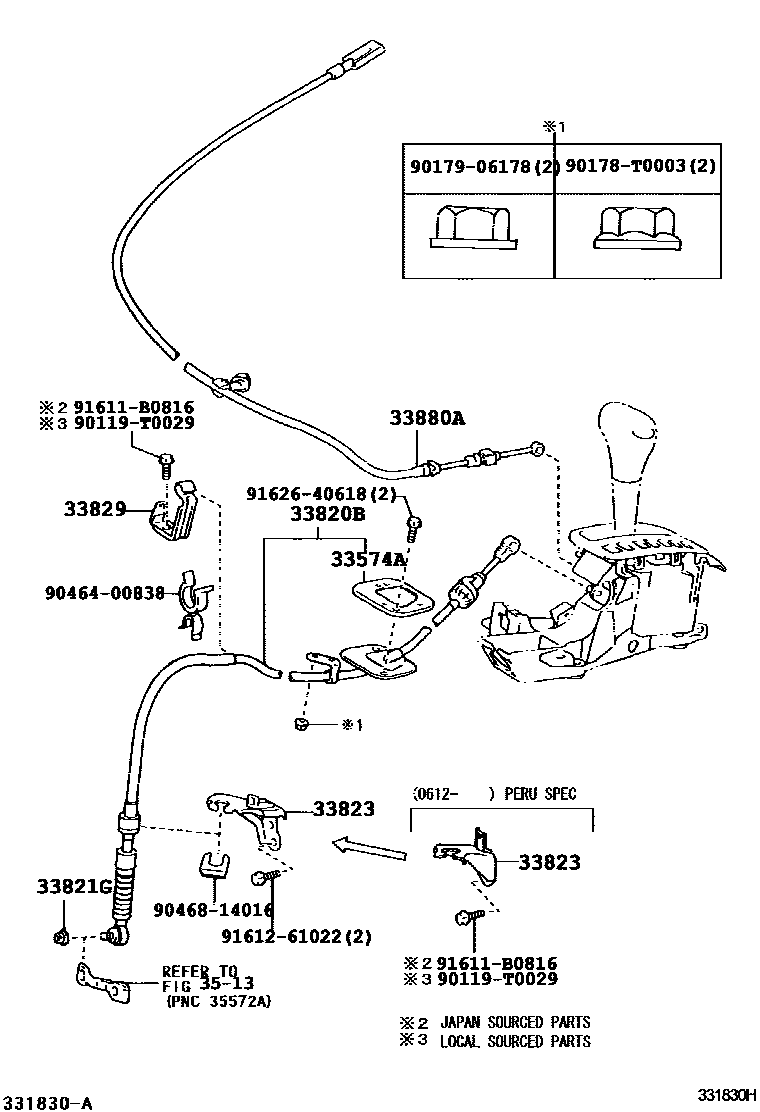

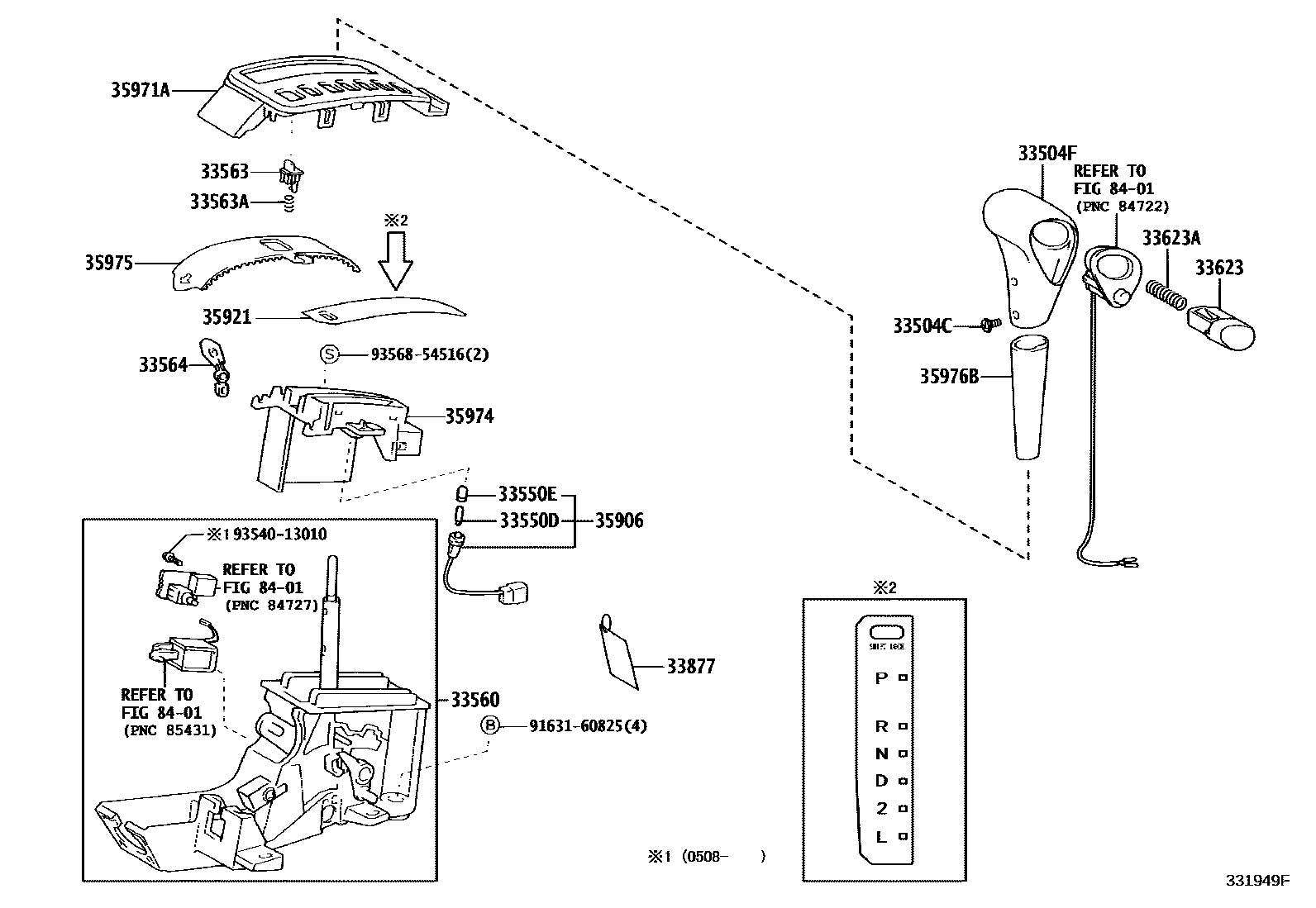

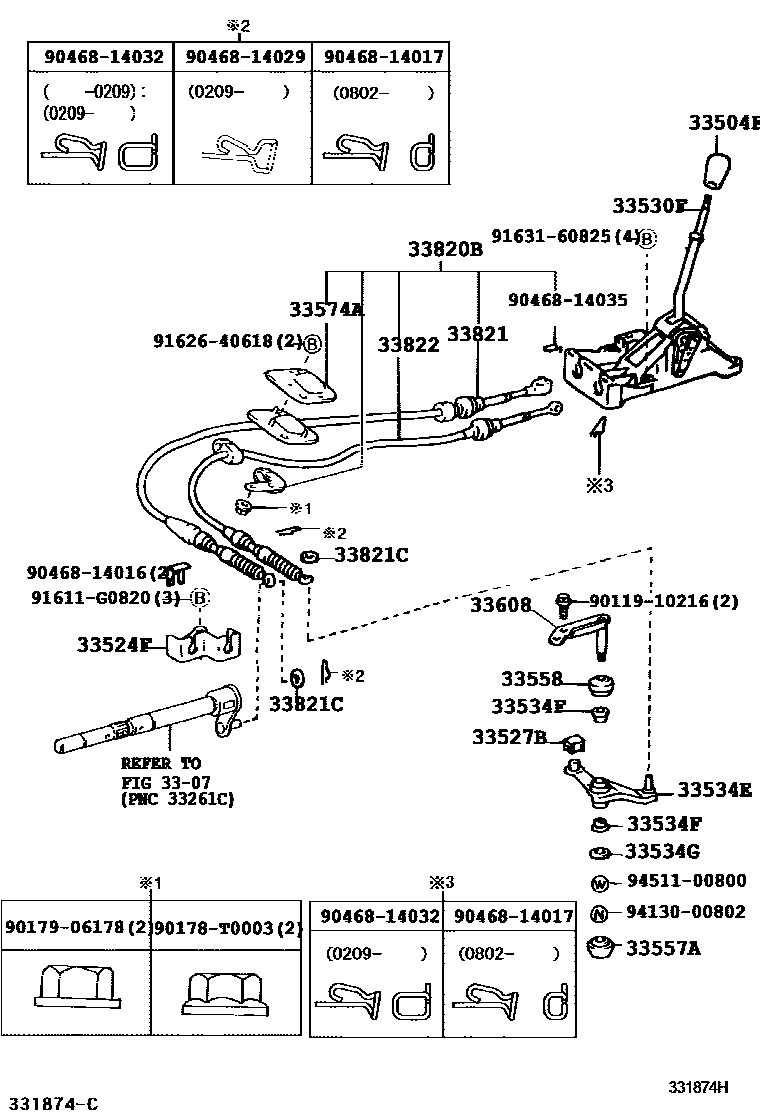

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33502 | Shift lever base plate sub-assembly | 33521-02030 |
| 33504C | Screw (for securing shift lever knob) | 90159-40221 · 90159-40238 |
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 · 33524-42020 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-02120 · 33530-12770 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 · 33534-42010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33544 | Shift lever insert No. 1 | 33544-06010 |
| 33550D | position indicator light bulb | 35955-74010 · 90981-11036 |
| 33550E | position indicator cover | 35956-52030 · 90339-09001 |
| 33554C | Shift lock release button cover | 33554-02030 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-02020 · 33560-12110 · 33560-12111 |
| 33563 | Shift lock release button | 33563-02030 · 33563-12210 |
| 33563A | Compression spring (for shift lock release button) | 90080-50179 · 90501-05055 |
| 33564 | No. 1 shift lock release link | 33564-12140 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12090 · 33574-12100 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 · 33608-42010 |
| 33623A | Compression spring (for shift lever knob button) | 90080-50180 · 90501-06082 |
| 33820B | Transmission control cable assembly | 33820-12890 · 33820-12D90 · 33820-1A160 · 33820-1A161 · 33820-1A162 · 33820-1A180 · 33820-1A240 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-1A150 · 33821-1A151 · 33821-1A152 · 33821-1A200 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90179-08061 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-12490 · 33822-12491 · 33822-12520 |
| 33823 | No. 1 transmission control cable bracket | 33823-12210 · 33823-20230 |
| 33829 | Transmission control cable bracket | 33829-12040 · 33829-12110 |
| 33877 | Shift lock information label No. 1 | 33877-02030 · 33877-50030 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-12040 · 33880-12090 |
| 35586C | Toggle lever bracket pin | 35586-06010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-02040 · 35906-12210 |
| 35921 | control position indicator board | 35921-02020 · 35921-12550 |
| 35971A | Position indicator light upper shell | 35971-02030 · 35971-12490 |
| 35974 | Position indicator light lower shell | 35974-02030 · 35974-12250 |
| 35975 | Slide cover (for position indicator light) | 35975-02040 · 35975-12300 |
