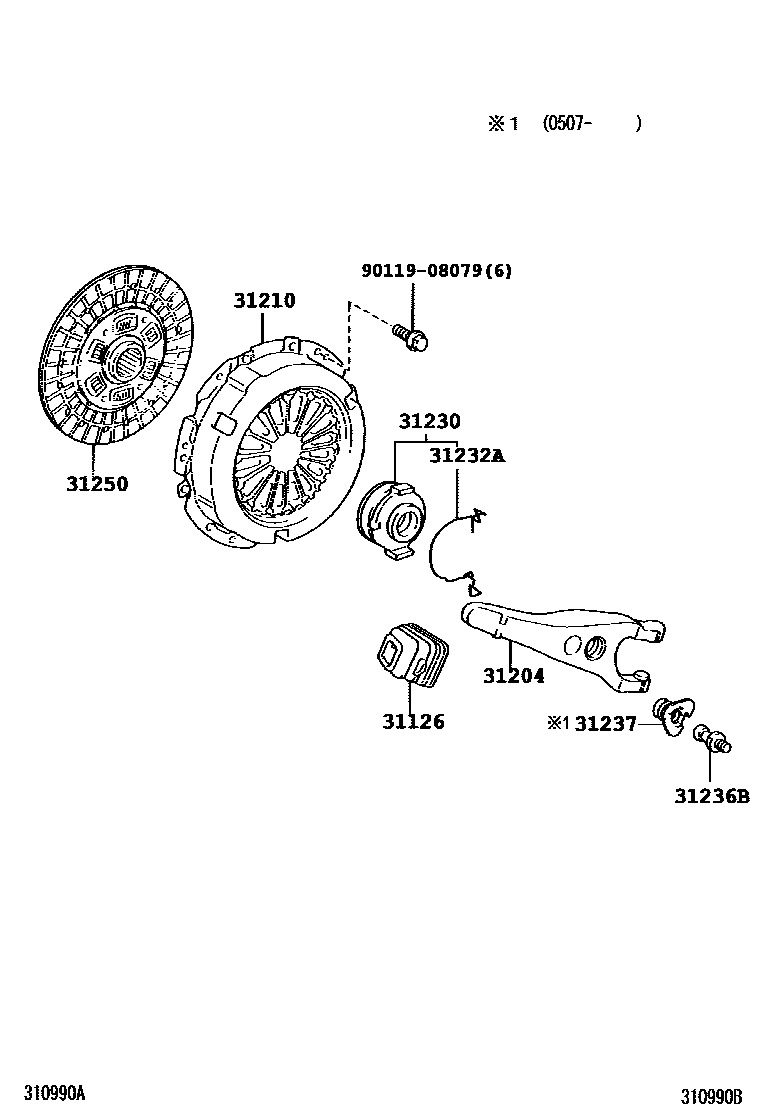

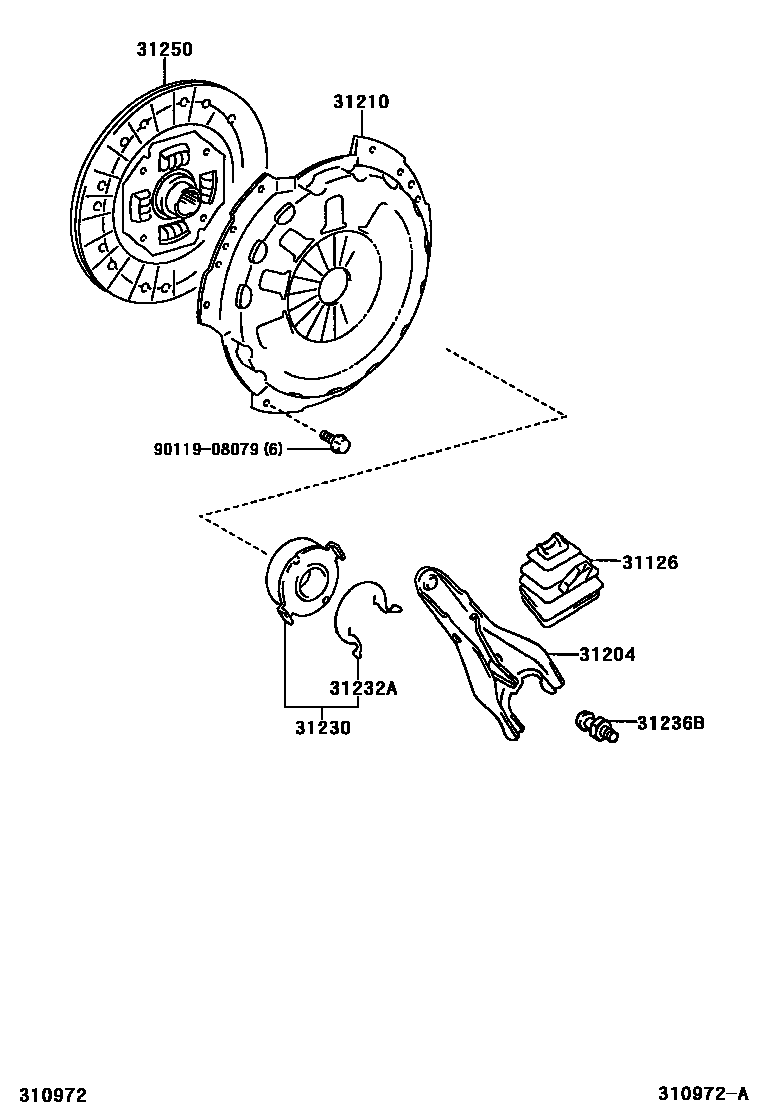

Toyota COROLLA 离合器和分离叉 — Figure 3101
Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-12051 · 31126-20080 |
| 31204 | Clutch release fork assembly | 31204-17010 · 31204-20130 · 31204-20131 |
| 31210 | Clutch cover assembly | 31210-02100 · 31210-02150 · 31210-02160 · 31210-12240 · 31210-12241 |
| 31230 | Clutch release bearing assembly | 31230-12191 · 31230-20191 |
| 31232A | Release bearing hub clip | 31232-12070 · 31232-20031 |
| 31236B | Split fork bracket | 31236-12020 · 31236-20080 |
| 31237 | Clutch release fork bracket dust cover | 31237-20010 |
| 31250 | Clutch disc assembly | 31250-02070 · 31250-02100 · 31250-12410 · 31250-12411 |
