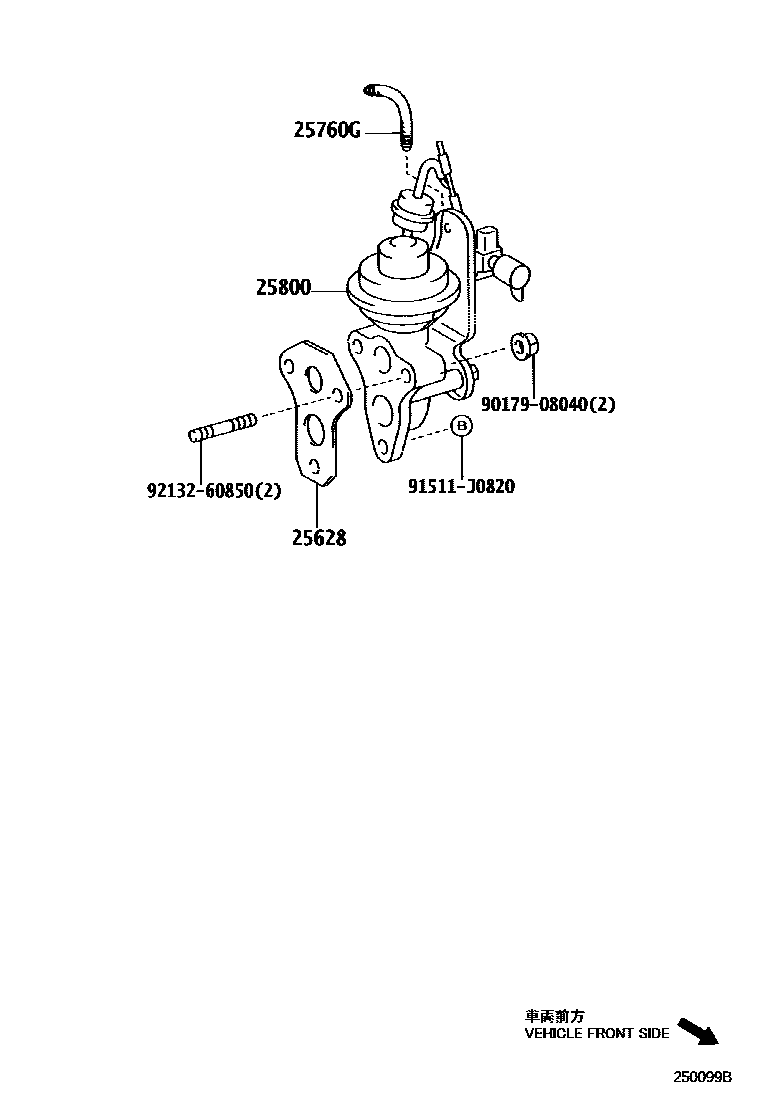

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25628 | EGR air intake gasket | 25628-27010 |
| 25760G | Vacuum transfer hose assembly | 25760-27050 |
| 25800 | Electronic EGR control valve assembly | 25800-27040 |
