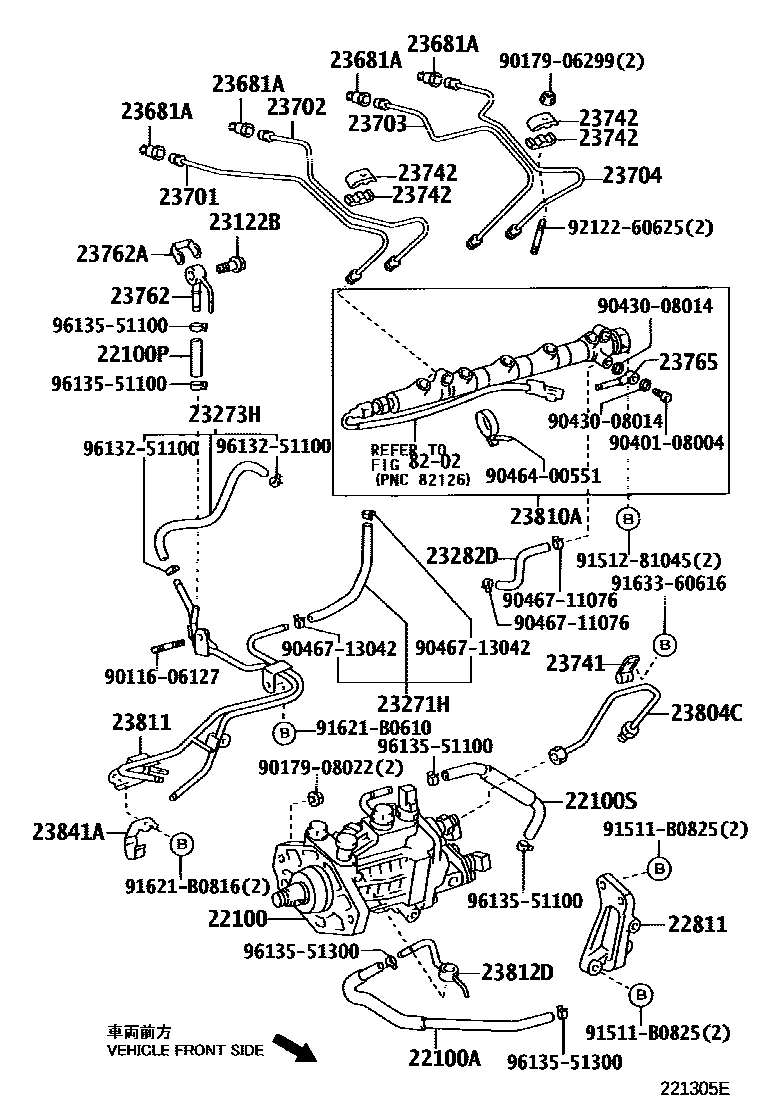

Toyota COROLLA 喷油泵总成 — Figure 2202
Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-27010 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23273-27010 |
| 22100P | Fuel hose (for fuel line to fuel hose) | 95333-06020 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23274-27010 |
| 22811 | No. 1 fuel injection pump bracket | 22811-27010 |
| 23122B | One-way valve | 23769-30010 |
| 23271H | No. 1 fuel hose | 23271-27070 |
| 23273H | No. 2 fuel hose | 23273-27020 |
| 23282D | No. 4 fuel hose | 90445-11152 |
| 23681A | Injector body seal | 23681-17010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-27010 · 23701-27011 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-27010 · 23702-27011 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-27010 · 23703-27011 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-27010 · 23704-27011 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-27010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-27010 |
| 23762 | No. 2 fuel injector overflow pipe | 23762-27010 |
| 23762A | No. 2 fuel injector overflow pipe gasket | 90904-30012 |
| 23765 | No. 5 fuel injector overflow pipe | 23765-27010 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-27010 · 23804-27011 |
| 23810A | Common rail assembly | 23810-27021 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-27031 |
| 23812D | No. 2 fuel pipe | 23812-27010 |
| 23841A | No. 1 fuel pipe clamp (for fuel injection pump) | 23841-27010 |
