Toyota COROLLA Alternator — Figure 1903

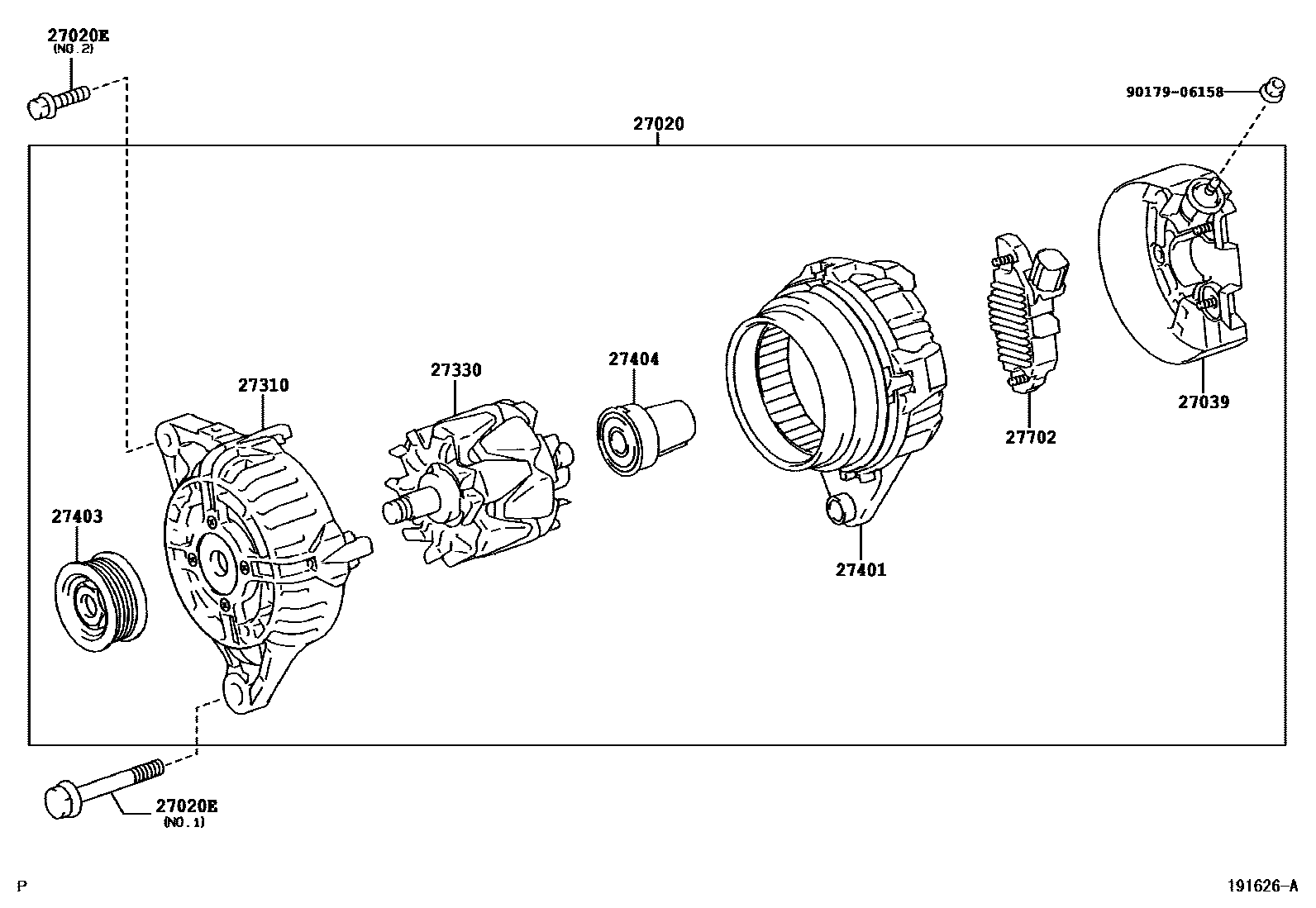

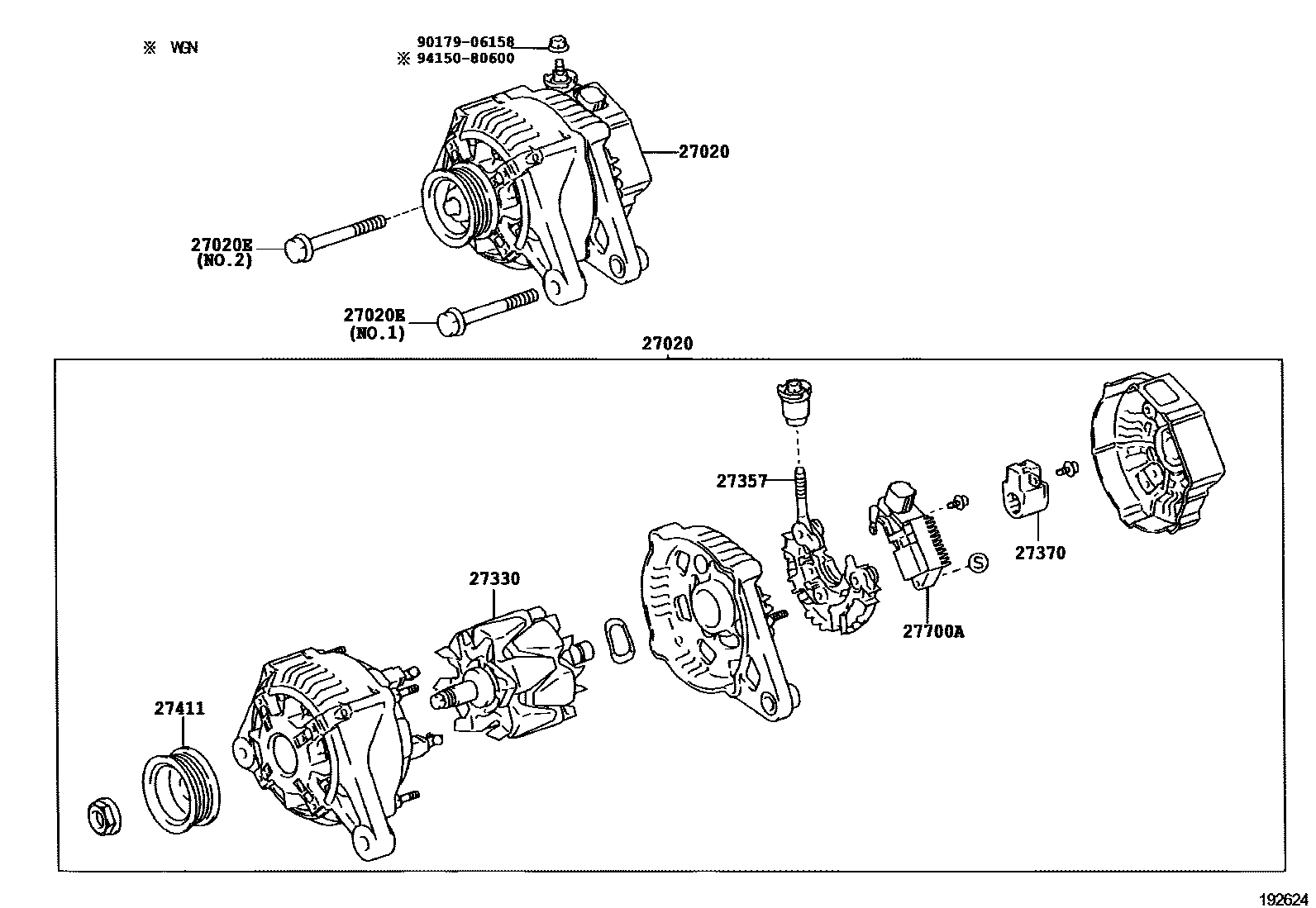

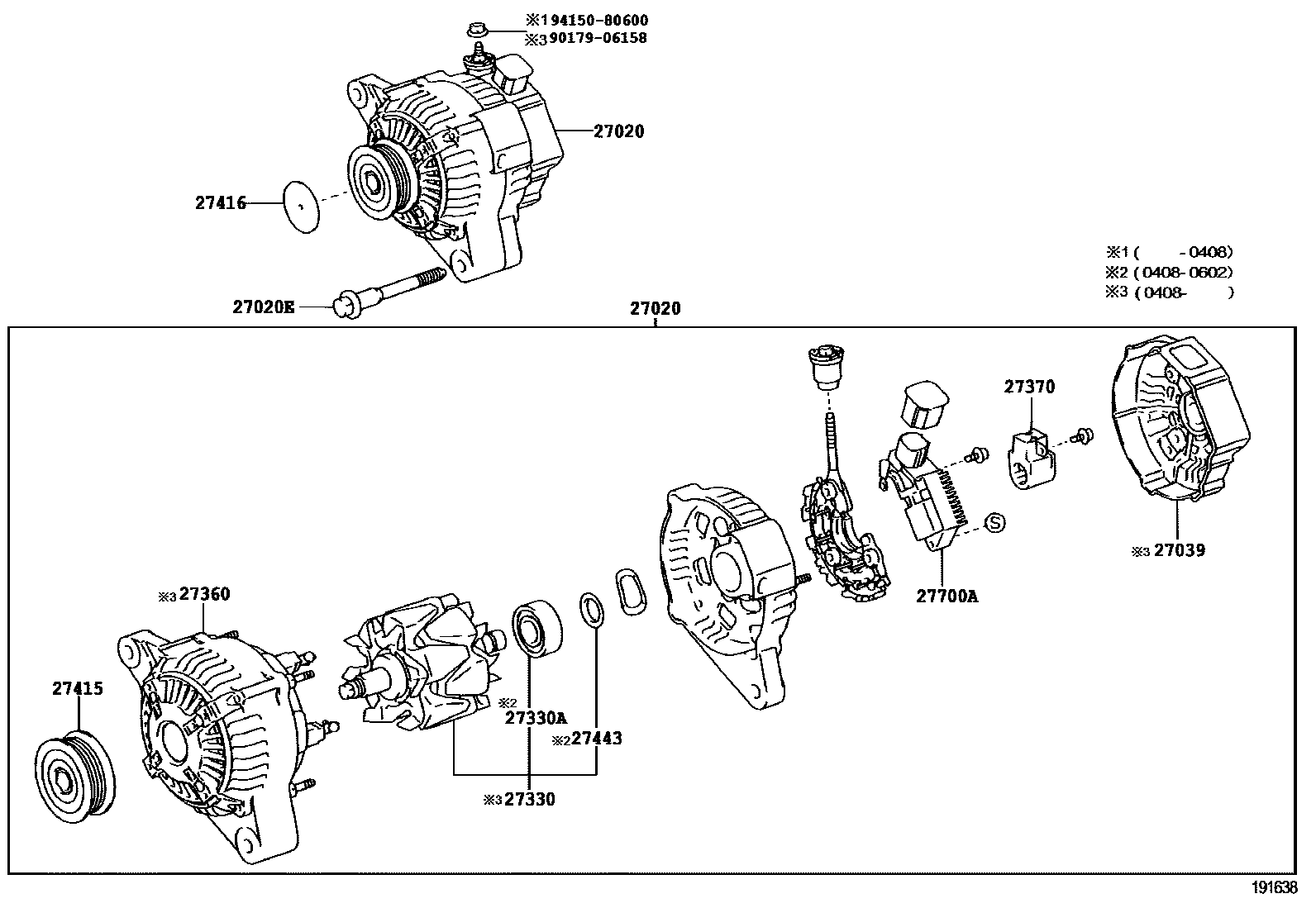

Toyota COROLLA EPC diagram 1903, Alternator, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0D120 · 27060-0D280 · 27060-27070 |
| 27020E | Bolts (for generator) | 90105-10075 · 90901-05004 · 91511-80830 |
| 27039 | Alternator Rear End Cover | 27039-0D120 · 27039-27020 · 27039-27060 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0D120 |
| 27330 | Alternator Rotor Assembly | 27330-0D120 · 27330-0J020 · 27330-20130 · 27330-33090 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-22050 |
| 27360 | Alternator Stator Coil Assembly | 27360-27050 · 27360-27070 |
| 27370 | Alternator Brush Holder Assembly | 27370-20130 · 27370-27060 · 27370-75060 |
| 27401 | Generator (with rectifier) stator sub-assembly | 27401-0D020 |
| 27403 | Generator pulley assembly | 27403-0D020 |
| 27404 | Generator bearing components | 27404-0D020 |
| 27411 | Alternator Pulley | 27411-0J010 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-27011 |
| 27416 | Generator pulley cover | 27416-27010 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-27070 |
| 27702 | Generator (with brush) voltage regulator sub-assembly | 27702-0D020 |
