Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

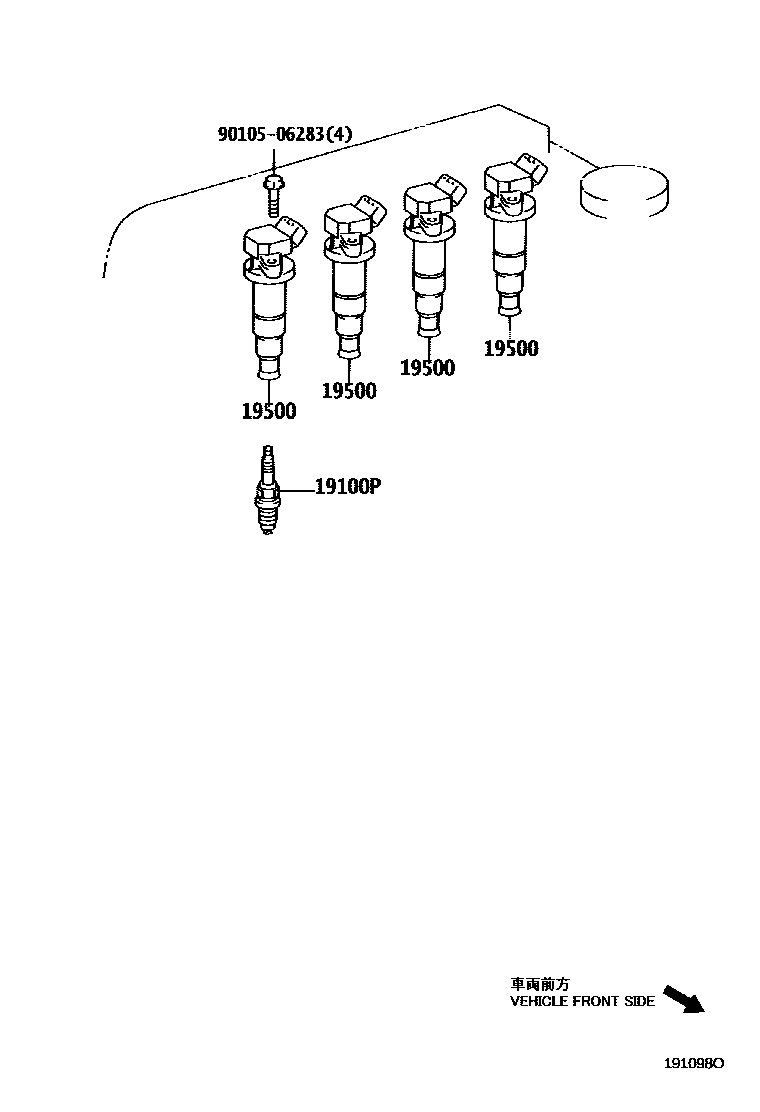

| 19100P | spark plug | 90080-91161 · 90080-91217 · 90080-91219 · 90080-91226 · 90919-01164 |
| 19500 | Ignition coil assembly | 90080-19015 · 90080-19019 · 90919-02239 · 90919-T2002 |

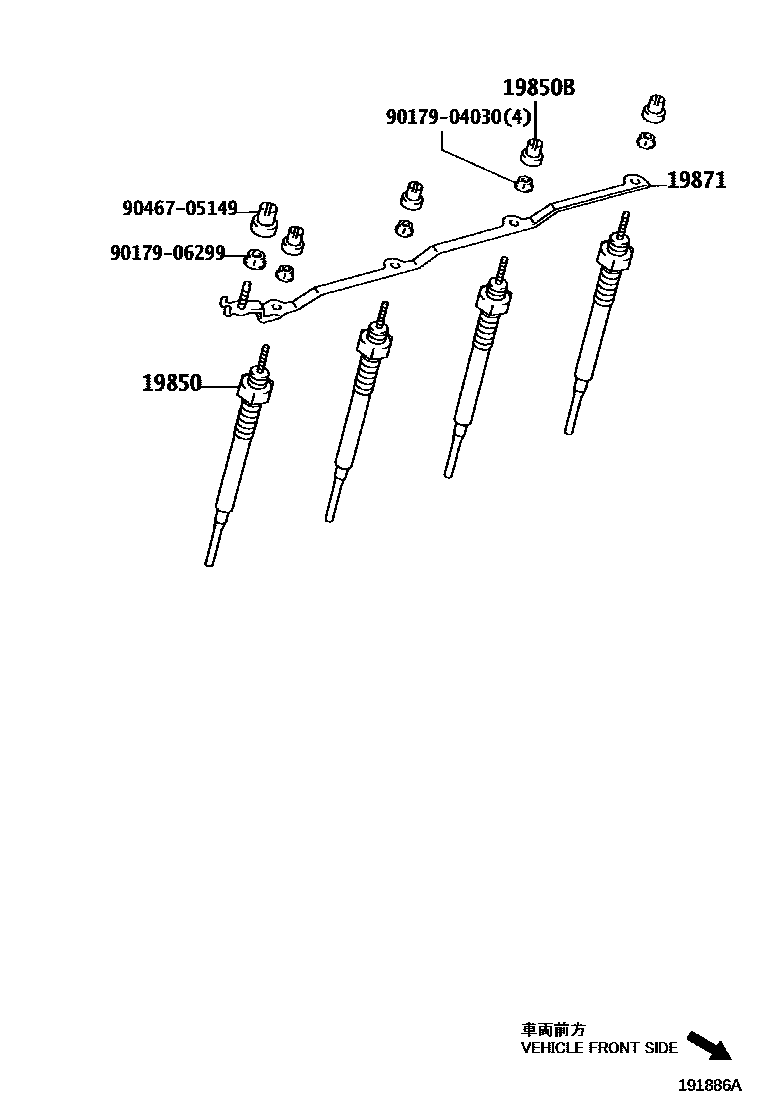

| 19850 | Glow plug assembly | 19850-27010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-27010 |
