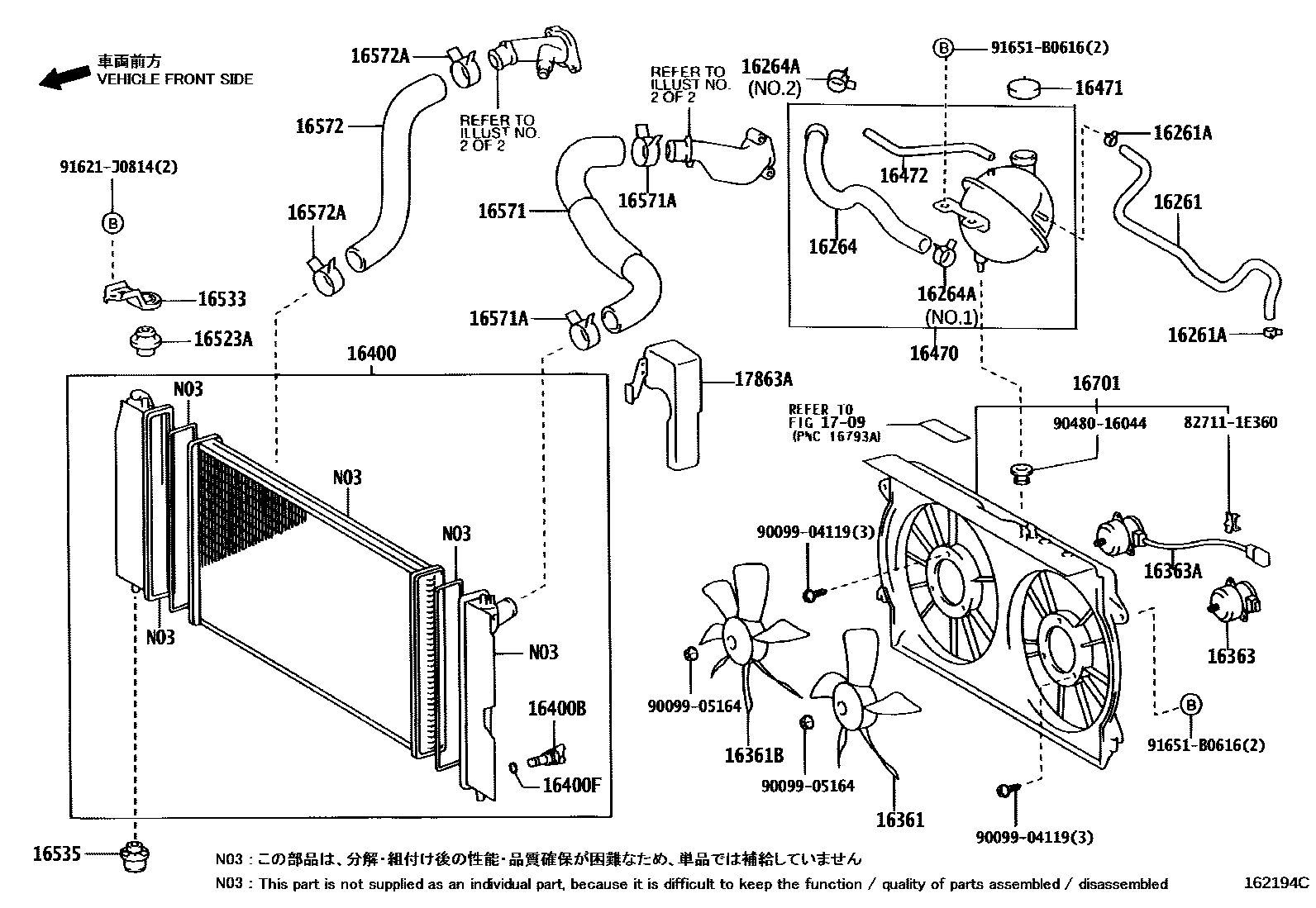

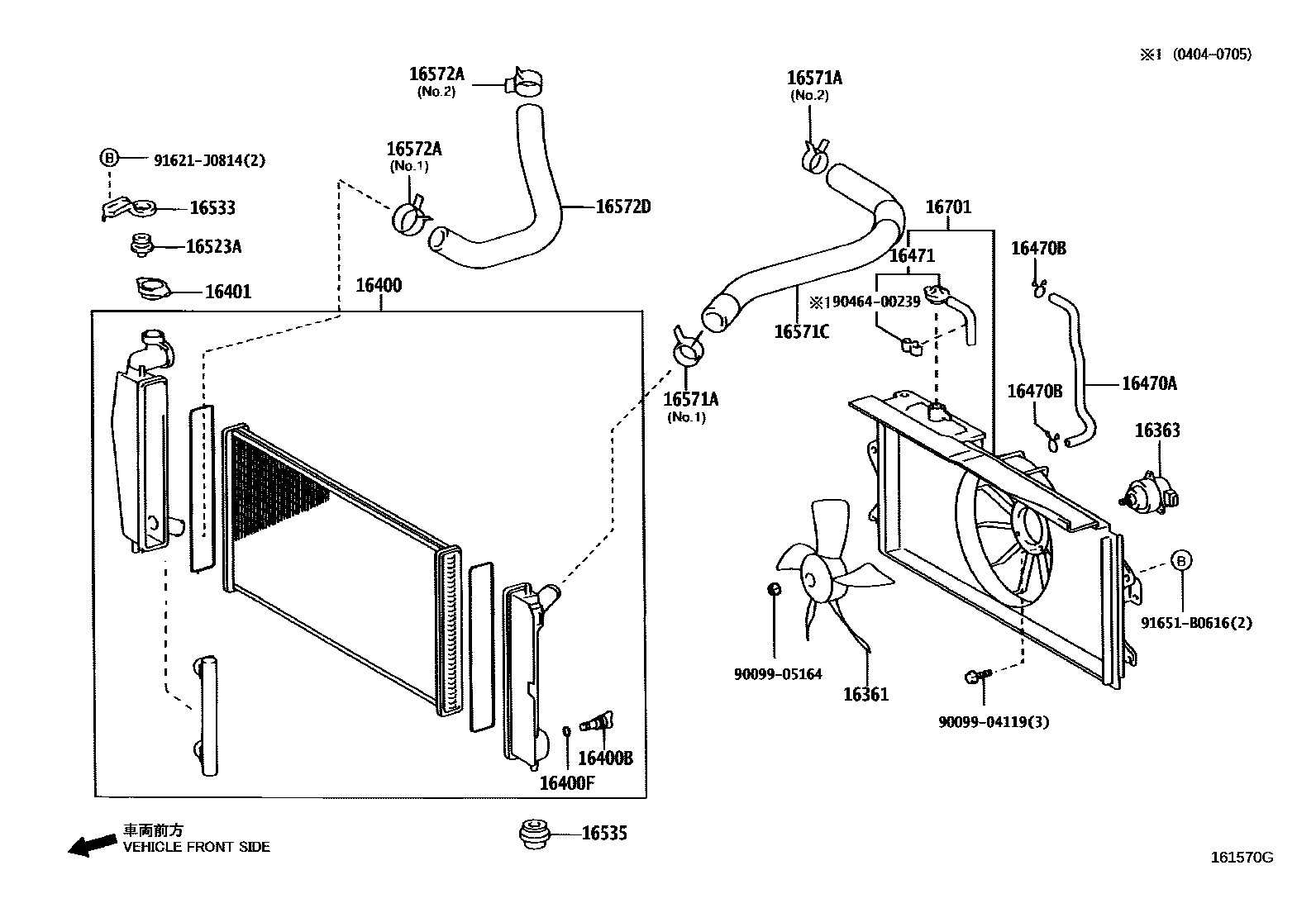

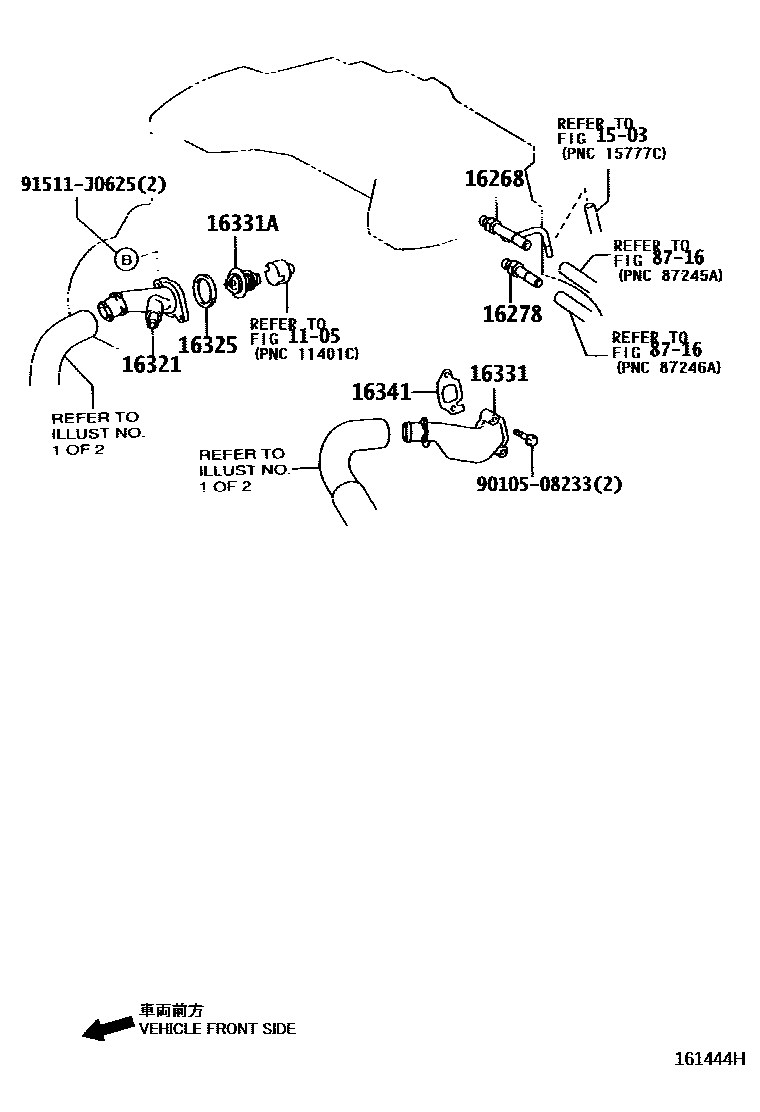

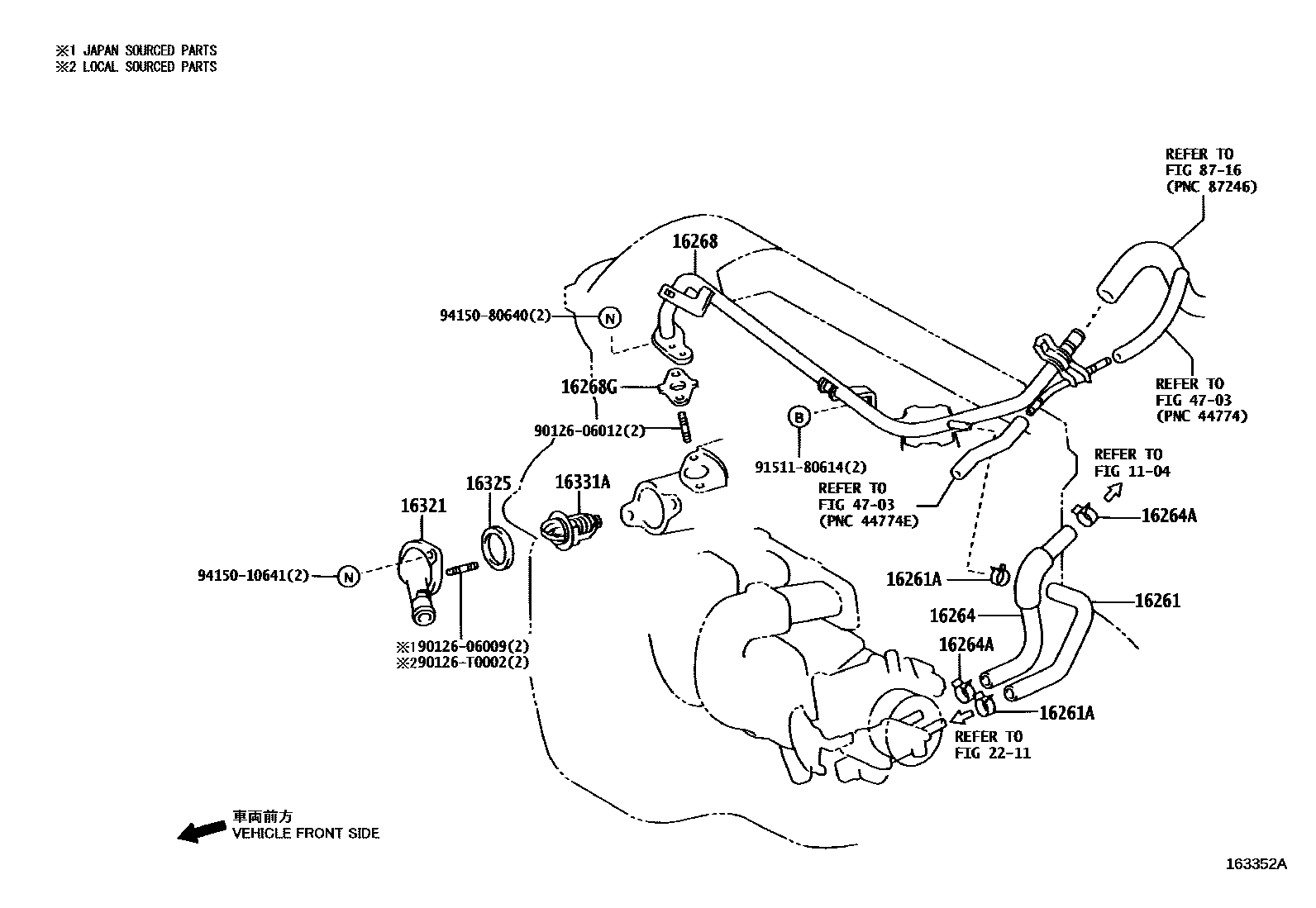

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-0D030 · 16261-0D040 · 16261-0D050 · 16261-0D060 · 16261-0G020 · 16261-22080 · 16261-22100 · 16261-27050 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-51300 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D020 · 16264-0D030 · 16264-0D060 · 16264-0D070 · 16264-0G010 · 16264-22090 · 16264-22110 · 16264-27040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-W0010 · 90467-21010 · 96135-51300 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0D030 · 16268-22100 · 16268-22101 · 16268-27040 |
| 16268G | Gasket (for water bypass pipe) | 16258-0D020 · 16258-22010 · 16258-28030 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-27040 |
| 16321 | water inlet | 16031-27020 · 16321-22070 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-27010 · 16325-62010 |
| 16331 | Water outlet | 16331-27030 |
| 16331A | thermostat | 90916-03123 · 90916-03129 |
| 16341 | GASKET, WATER OUTLET | 16341-27010 |
| 16361 | Fan | 16361-0D110 · 16361-0D120 · 16361-0G010 |
| 16361B | Fan No. 2 | 16361-0G020 |
| 16363 | cooling fan motor | 16363-23020 · 16363-23030 · 16363-28150 · 16363-28160 |
| 16363A | Cooling fan motor No. 2 | 16363-27040 · 16363-27050 |
| 16400 | Radiator assembly | 16400-27040 · 16410-0D280 · 16410-0D290 · 16410-0D300 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-22010 |
| 16470 | Radiator reservoir assembly | 16470-27070 · 16480-0G020 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-21040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-27070 · 16401-53010 · 16471-0D020 · 16471-21010 |
| 16472 | Breather hose | 16472-0G020 |
| 16523A | Radiator bracket cushion | 16523-21020 |
| 16533 | Radiator upper bracket | 16533-21020 |
| 16535 | Radiator lower support | 16535-21050 · 16535-27010 · 90480-40016 |
| 16571 | Radiator water inlet hose | 16571-27050 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-37002 · 90466-41008 · 90467-37005 |
| 16571C | Radiator hose No. 1 | 16571-0D140 |
| 16572 | Radiator outlet hose | 16572-27040 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 · 90466-41008 · 90467-34004 · 96136-43901 |
| 16572D | Radiator hose No. 2 | 16572-0D130 |
| 16701 | Fan cover sub-assembly | 16711-0D100 · 16711-27120 |
| 17863A | Intake air separator | 17863-27010 |
