Toyota COROLLA Engine Oil Cooler — Figure 1503

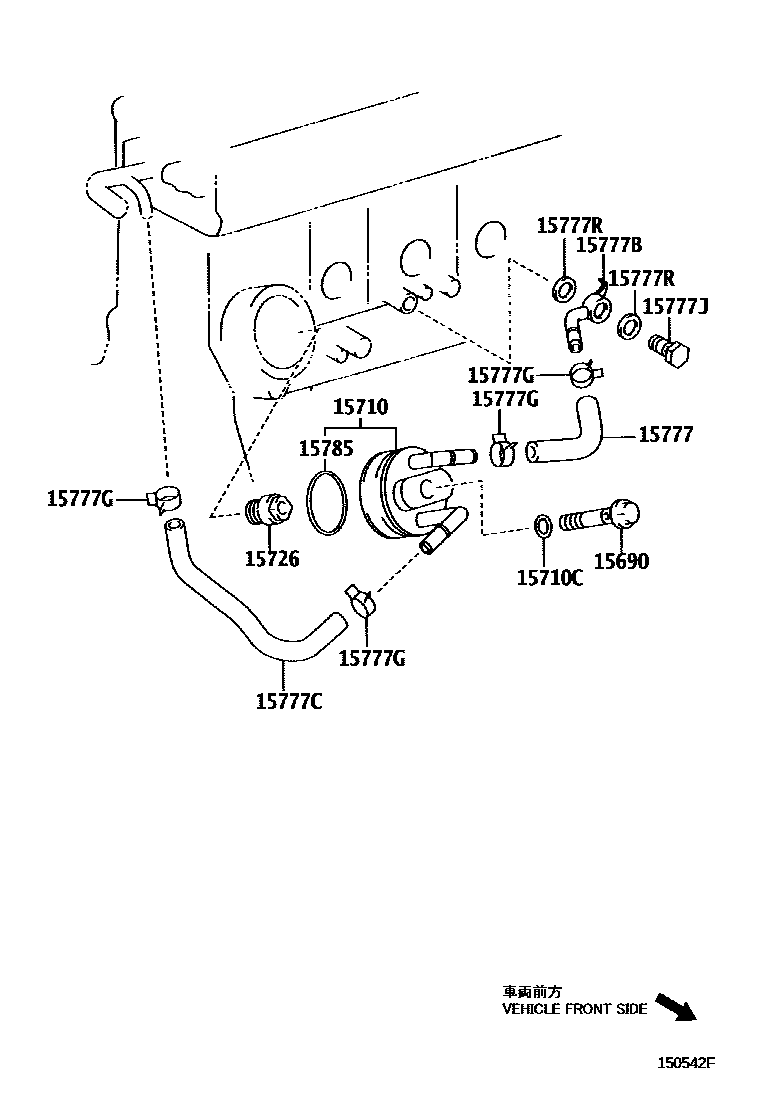

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 90401-19009 |
| 15710 | Oil cooler assembly | 15710-27030 |
| 15710C | Gasket (for transmission oil cooler) | 90301-24017 |
| 15726 | Oil cooler joint bolt connector | 15726-27010 |
| 15777 | oil cooler hose | 15777-27020 |
| 15777B | oil cooler pipe | 15768-27020 |
| 15777C | oil cooler hose | 15778-27050 |
| 15777G | Hose clips or clips | 96134-41900 |
| 15777J | Connector bolt (for oil cooler pipe) | 90401-20004 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 90430-20014 |
| 15785 | oil cooler gasket | 15785-27010 |
