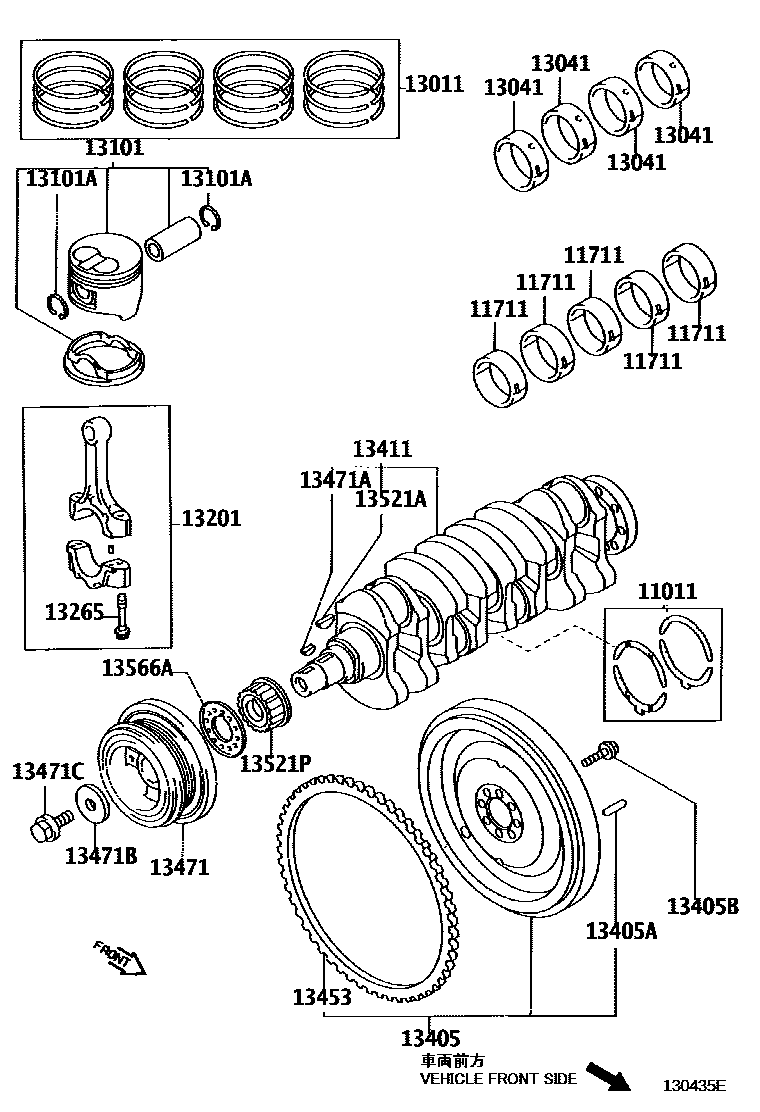

Toyota COROLLA Crankshaft & Piston — Figure 1301

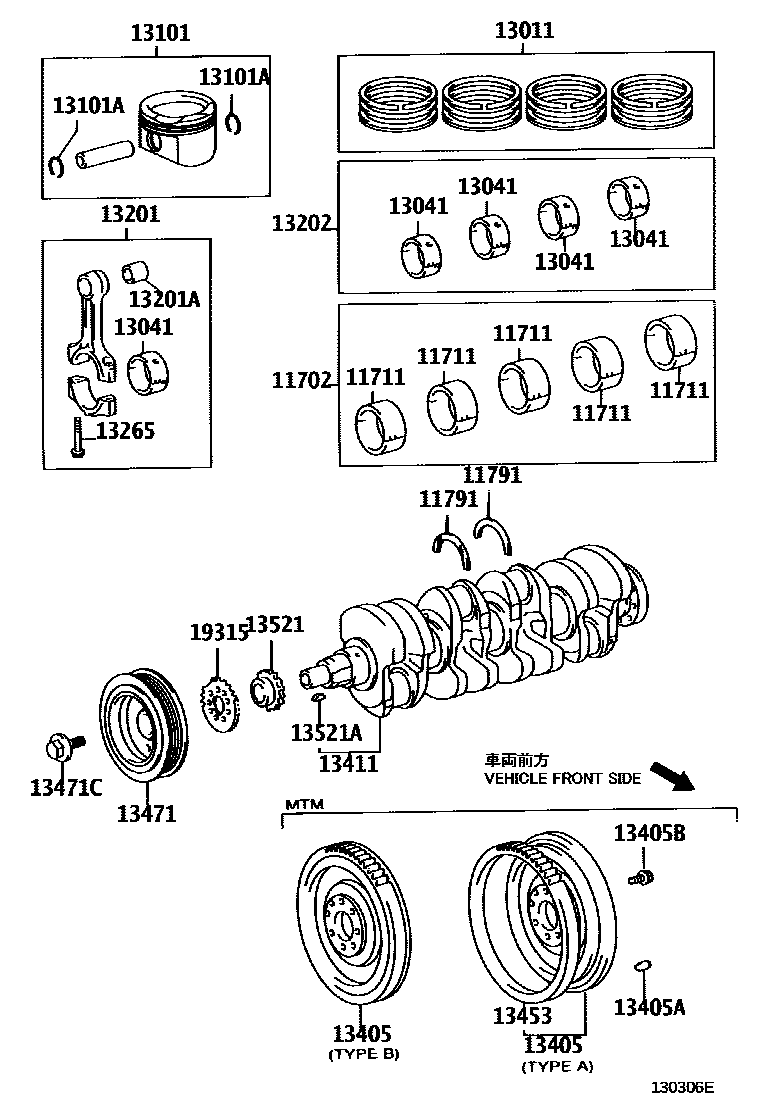

Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-64010 · 11012-64010 · 11013-64010 |
| 11702 | crankshaft bearing assembly | 11704-0D031 · 11704-22011 · 11704-22030 |
| 11791 | Thrust washer on crankshaft | 11791-0D020 · 11791-0D030 · 11791-0M020 · 11791-22020 |
| 13011 | Piston ring assembly | 13011-22150 · 13011-22200 · 13011-22220 · 13011-22221 · 13011-22240 · 13011-27030 |
| 13101 | Piston sub-assembly with pin | 13101-0D071 · 13101-0D110 · 13101-0D111 · 13101-22031 · 13101-22032 · 13101-22200 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 · 90520-32013 |
| 13201 | Connecting rod sub-assembly | 13201-09140 · 13201-09490 · 13201-09491 · 13201-29038 · 13201-29176 · 13201-29177 · 13201-29645 |
| 13201A | Bushing (for connecting rod small end) | 90999-73140 · 90999-73151 |
| 13202 | Connecting rod bearing assembly | 13204-22023 · 13204-22024 |
| 13265 | Connecting rod bolts | 13265-22020 · 13265-46020 |
| 13405 | Flywheel sub-assembly | 13405-0D030 · 13405-0D031 · 13405-0D040 · 13405-22020 · 13405-27010 · 13451-22020 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10071 · 90910-02103 |
| 13411 | crankshaft | 13401-0D030 · 13401-22010 · 13401-22020 · 13401-22030 · 13401-27011 |
| 13453 | flywheel ring gear | 13453-0D020 · 13453-0D030 · 13453-10010 · 13453-64050 |
| 13471 | crankshaft pulley | 13470-22021 · 13470-22041 · 13470-27010 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05007 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90560-16026 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16065 · 90119-12127 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0D020 · 13521-0D030 · 13521-22020 |
| 13521A | Key (for crankshaft timing gear) | 90280-06001 · 95161-30416 |
| 13521P | crankshaft timing pulley | 13521-27010 |
| 13566A | timing belt guide | 13566-64011 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-22020 |
