Toyota COROLLA Cylinder Head — Figure 1104

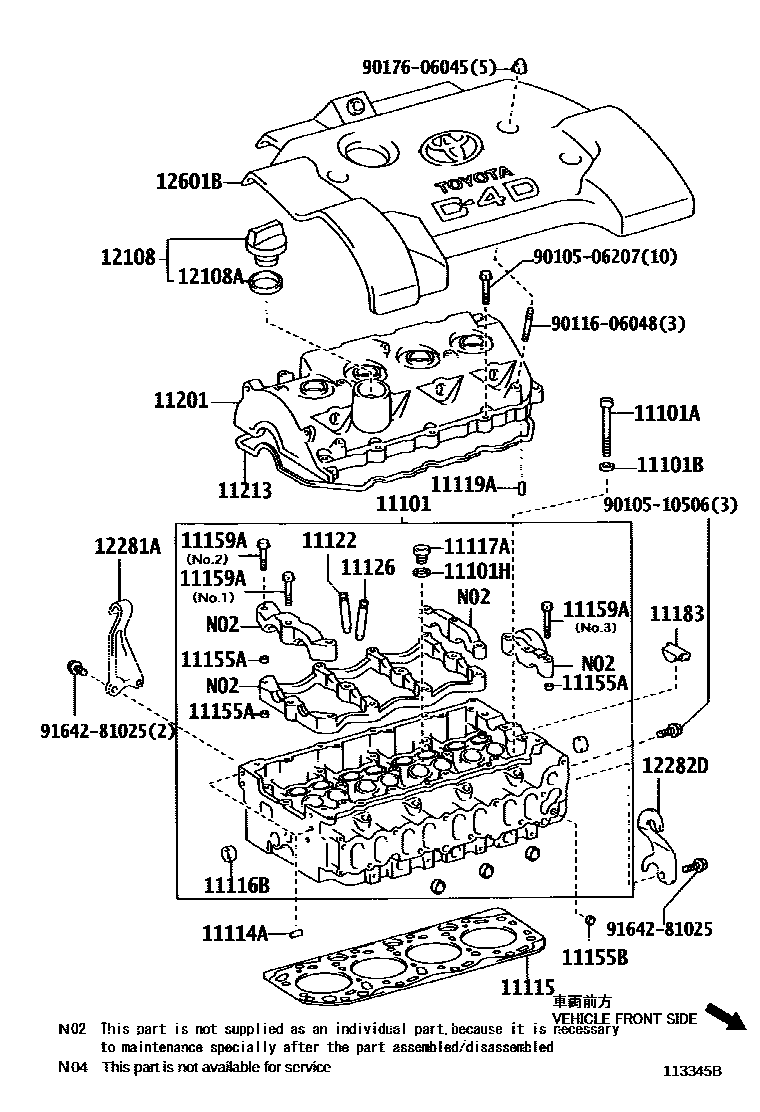

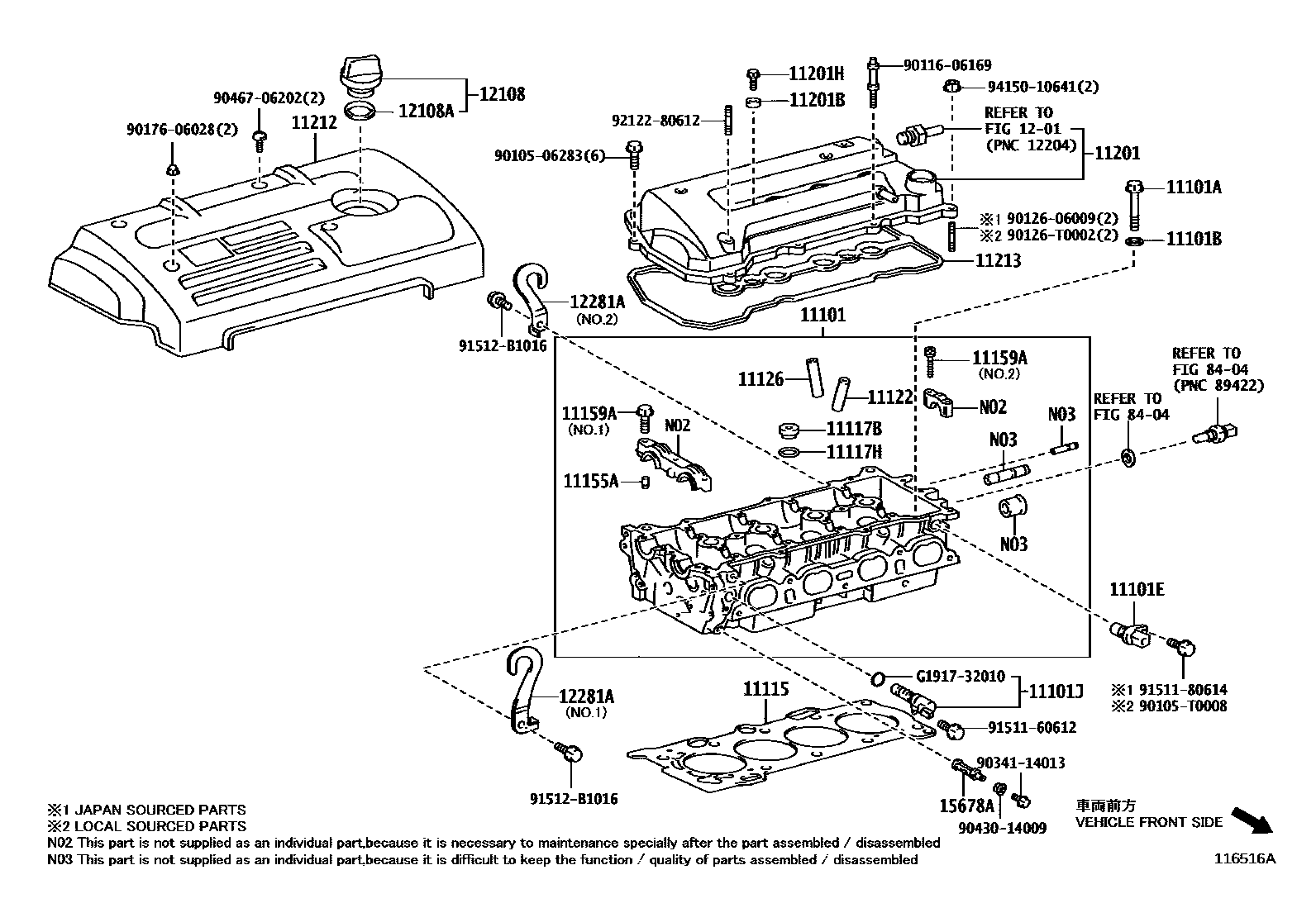

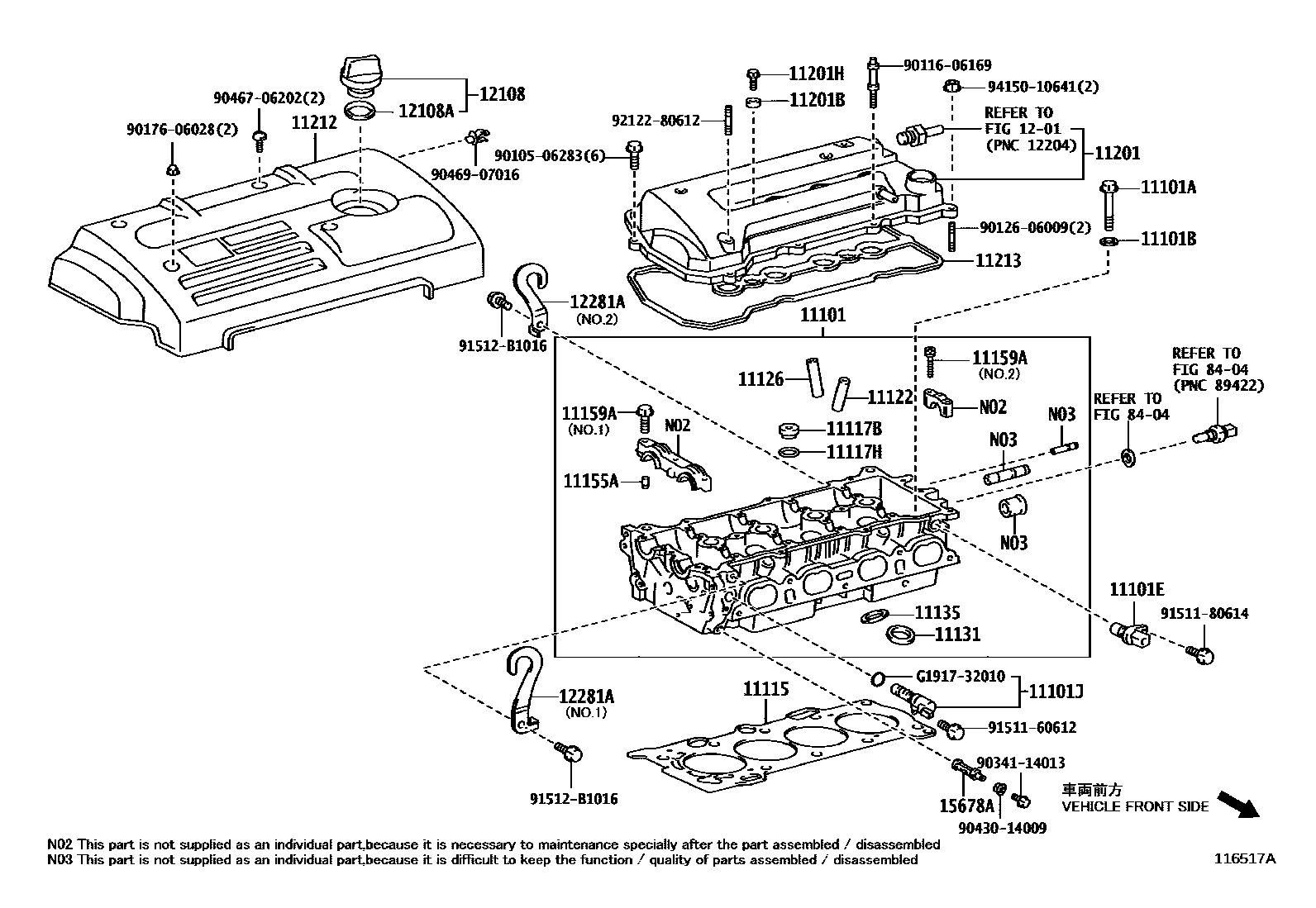

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0D030 · 11101-0D031 · 11101-22051 · 11101-22052 · 11101-22070 · 11101-22071 · 11101-22150 · 11101-27033 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02136 · 90910-02139 · 90910-02152 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 · 90201-11016 |
| 11101E | Cam position sensor | 90919-05026 |
| 11101H | Gasket (for cylinder head thread plug) | 90430-14008 |
| 11101J | Camshaft timing oil control valve assembly | 15330-22030 |
| 11114A | direct selling | 90250-06068 |
| 11115 | GASKET, CYLINDER HEAD | 11115-22040 · 11115-22041 · 11115-22050 |
| 11116B | No. 2 sealing plug | 96411-63000 |
| 11117A | No. 1 headed tapered thread plug | 90341-14008 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11119A | No. 1 direct sales | 90250-06013 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-20020 · 11122-22040 · 11122-27010 · 11123-20020 · 11123-22040 · 11123-27010 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-20020 · 11122-22040 · 11122-27010 · 11123-20020 · 11123-22040 · 11123-27010 |
| 11131 | intake valve seat | 11131-22030 · 11132-22030 |
| 11135 | Exhaust valve seat | 11135-22030 · 11136-22030 |
| 11155A | PIN, RING W/HEAD | 90250-06001 · 90253-11021 |
| 11155B | PIN, RING | 90253-13008 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 · 90119-08A29 · 90119-08B76 · 91511-80860 · 91511-C0835 |
| 11183 | PLUG, SEMICIRCULAR | 11183-64010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0D020 · 11201-0D041 · 11201-0D050 · 11201-22060 · 11201-27030 · 11201-27031 |
| 11201B | Gasket (for cylinder head cover) | 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90105-06202 |
| 11212 | No. 2 cylinder head cover | 11212-0D030 · 11212-0D110 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0D020 · 11213-0D030 · 11213-22050 · 11213-27010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0H020 · 12180-21010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
| 12281A | Engine No. 1 hanger | 12281-0D020 · 12281-15040 · 12281-15050 · 12281-22021 · 12281-27011 |
| 12282D | ENGINE HANGER, NO.2 | 12282-27011 |
| 12601B | No. 1 engine hood sub-assembly | 12611-27070 |
| 15678A | Oil control valve filter | 15678-0C010 · 15678-21010 |
