Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

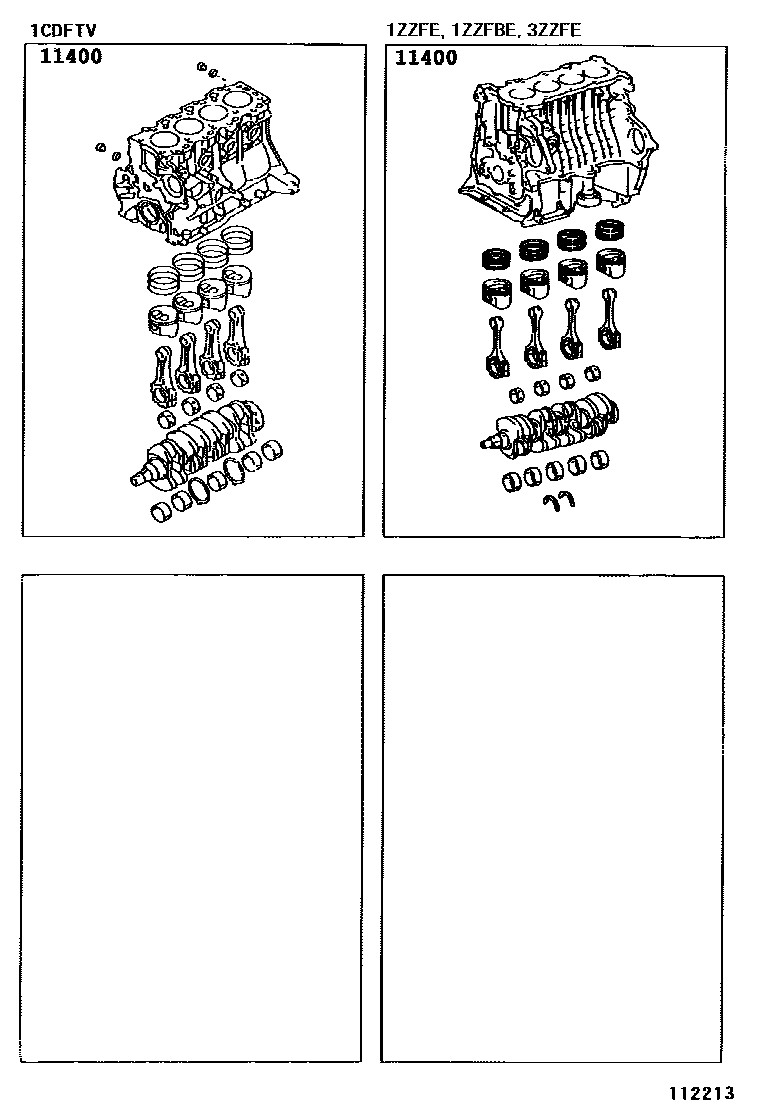

Toyota COROLLA Short Block Assembly EPC diagram — 112213A
Short Block Assembly — 112213A (200205 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0D072 · 11400-0D220 · 11400-22080 · 11400-22081 · 11400-22121 · 11400-22122 · 11400-27130 · 11400-27180
