Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

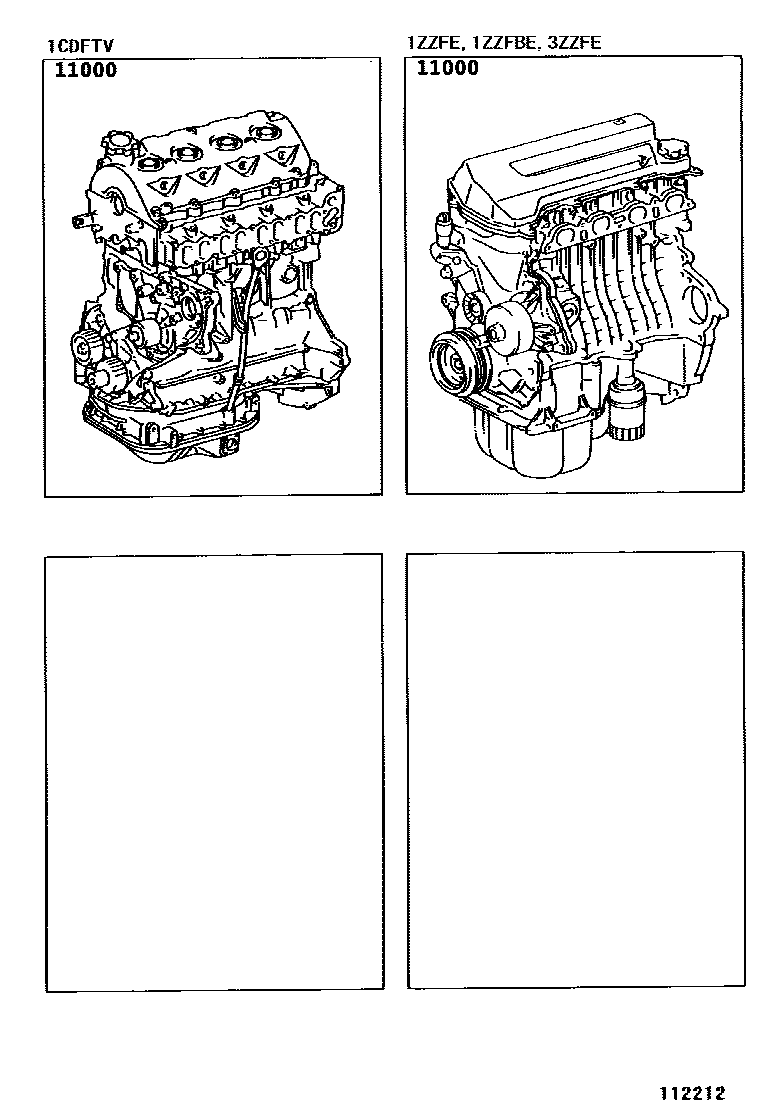

Toyota COROLLA Partial Engine Assembly EPC diagram — 112212A
Partial Engine Assembly — 112212A (200205 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0D261 · 19000-0D310 · 19000-0D311 · 19000-22220 · 19000-22221 · 19000-22330 · 19000-22331 · 19000-27200 · 19000-27250
