Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 10 PNC and OE references.

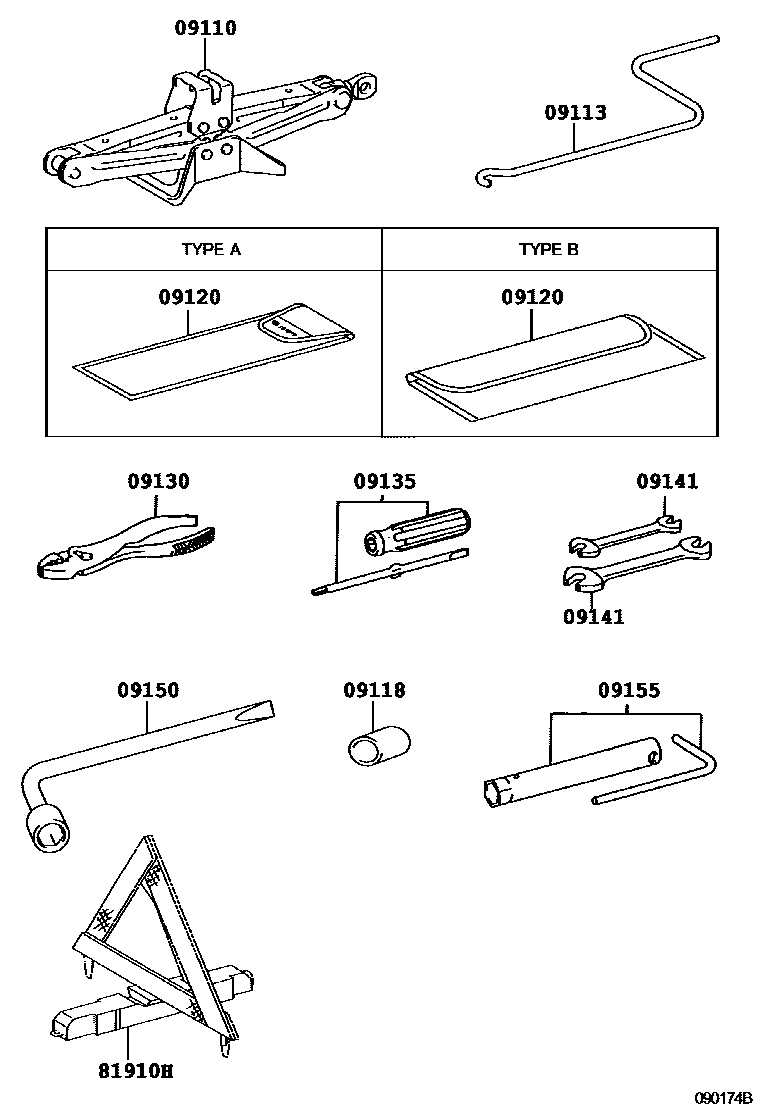

Toyota COROLLA Standard Tools EPC diagram — 090174B
Standard Tools — 090174B (200205 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-02020 · 09111-02050
09113Jack Handle09113-02040 · 09113-20040 · 09113-52010
09118jack cover09118-02010
09120Tool Bag09120-02040 · 09120-02070 · 09120-10040
09130Pliers99913-11500
09135Screwdriver99915-10700
09141Wrench99914-10810 · 99914-11214
09150Wheel Nut Wrench Case09150-02010 · 09150-40010
09155Spark Plug Wrench09155-74010
81910HReflector assembly81910-02010
