Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

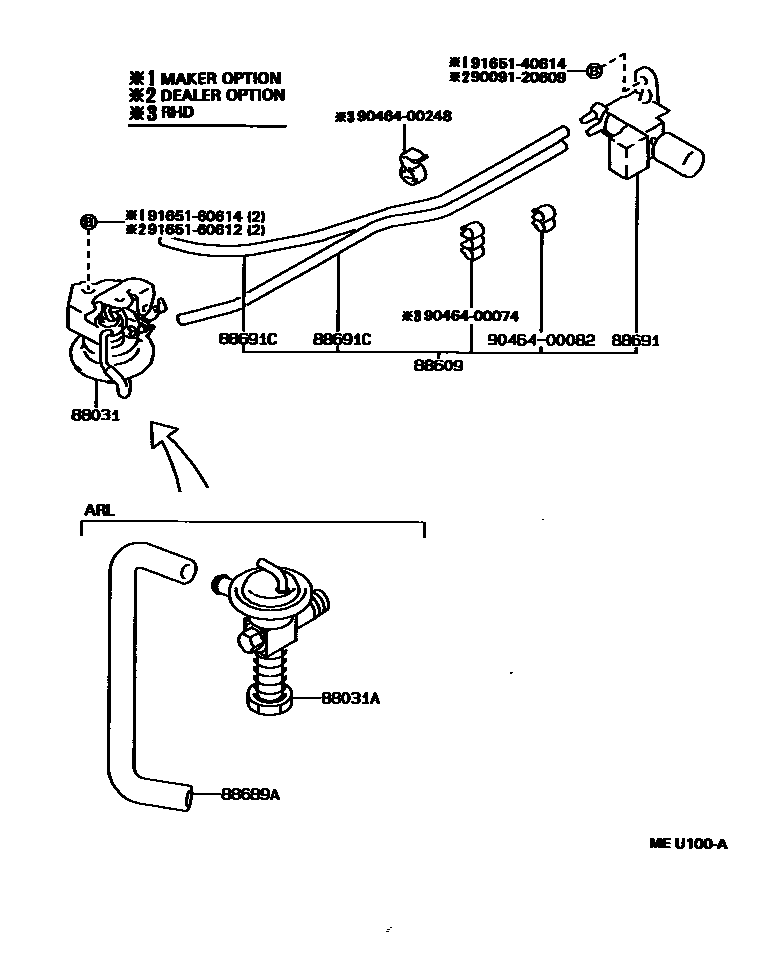

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-12140 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-14020 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12440 · 88609-12450 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-12180 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12430 · 88691-20040 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92002 · 90999-92004 |
