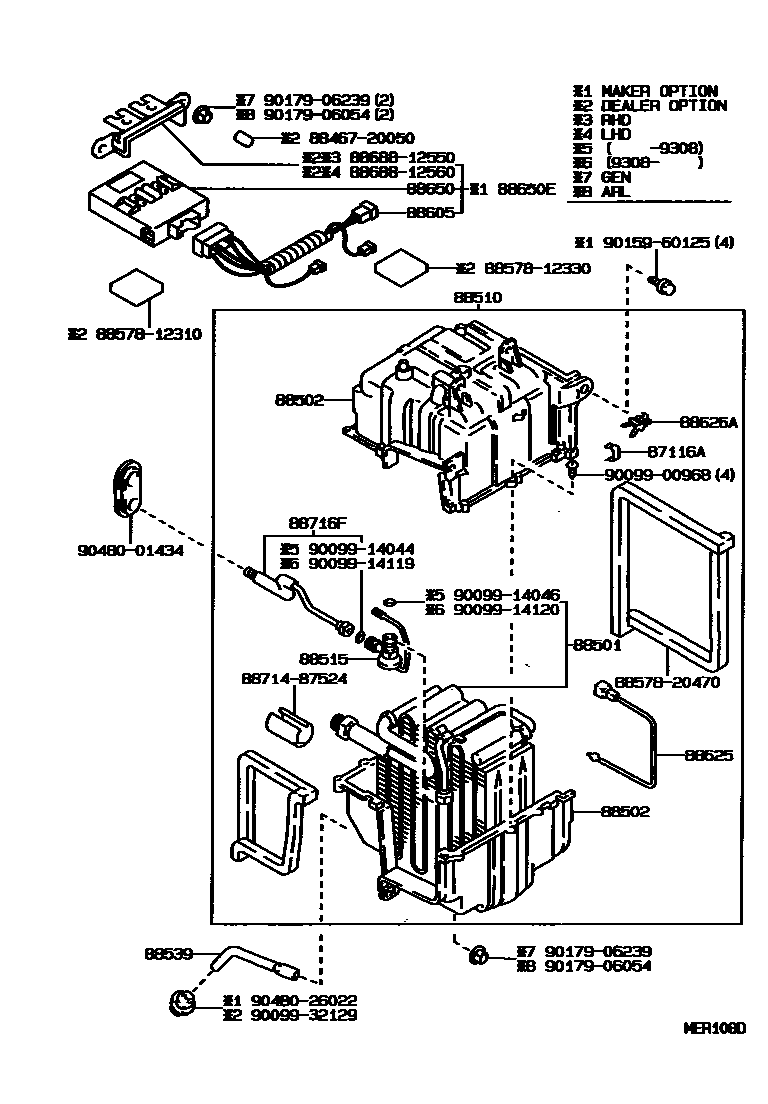

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12330 · 88501-12340 · 88501-12380 · 88501-13010 |
| 88502 | Cooling device shell sub-assembly | 88502-12100 · 88502-12110 · 88502-12140 · 88502-12150 |
| 88510 | Cooler device assembly | 88510-12780 · 88510-12790 · 88510-13020 · 88510-1A360 |
| 88515 | Cooler expansion valve | 88515-16040 · 88515-34010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12090 · 88539-12100 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1A270 · 88605-1A280 · 88605-1A680 · 88605-1E070 · 88605-1E172 · 88605-1E192 |
| 88625 | Cooler No. 1 Thermistor | 88625-12230 · 88625-32040 |
| 88626A | Thermistor mount | 88626-40050 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12620 · 88650-12631 · 88650-12670 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-12463 · 88650-12473 · 88650-12810 · 88650-12820 |
| 88716F | Cooler refrigerant liquid pipe F | 88726-12300 · 88726-12310 · 88726-12400 · 88726-13010 |
