Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.

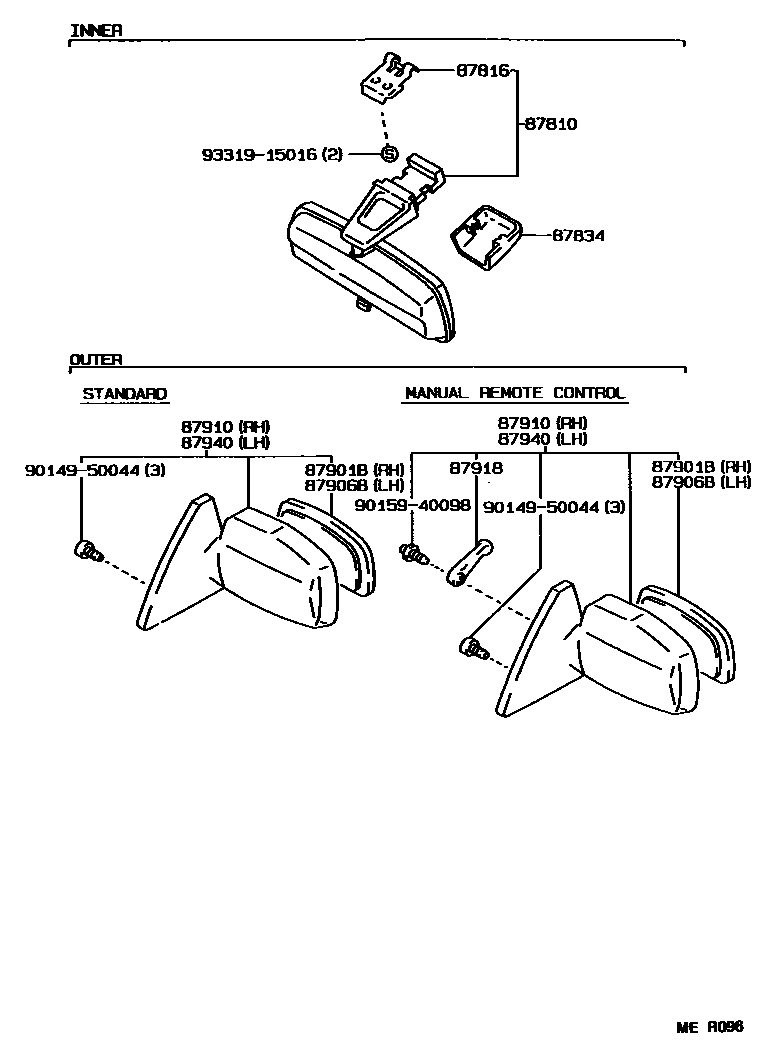

Toyota COROLLA 后视镜 EPC diagram — MER096
后视镜 — MER096 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
87816Interior rearview mirror spring74372-30030
87901BRight exterior rearview mirror sub-assembly87931-1A280 · 87931-1A290 · 87931-1A310 · 87931-1A610
87906BLeft exterior rearview mirror sub-assembly87961-1A360 · 87961-1A370 · 87961-1A390 · 87961-1A740
87910Right exterior rearview mirror assembly87910-1A260 · 87910-1A270 · 87910-1A280 · 87910-1A290 · 87910-1A610 · 87910-1A620
87918Exterior rearview mirror control handle87918-12030
87940Left exterior rearview mirror assembly87940-1A340 · 87940-1A350 · 87940-1A360 · 87940-1A370 · 87940-1A740 · 87940-1A750
