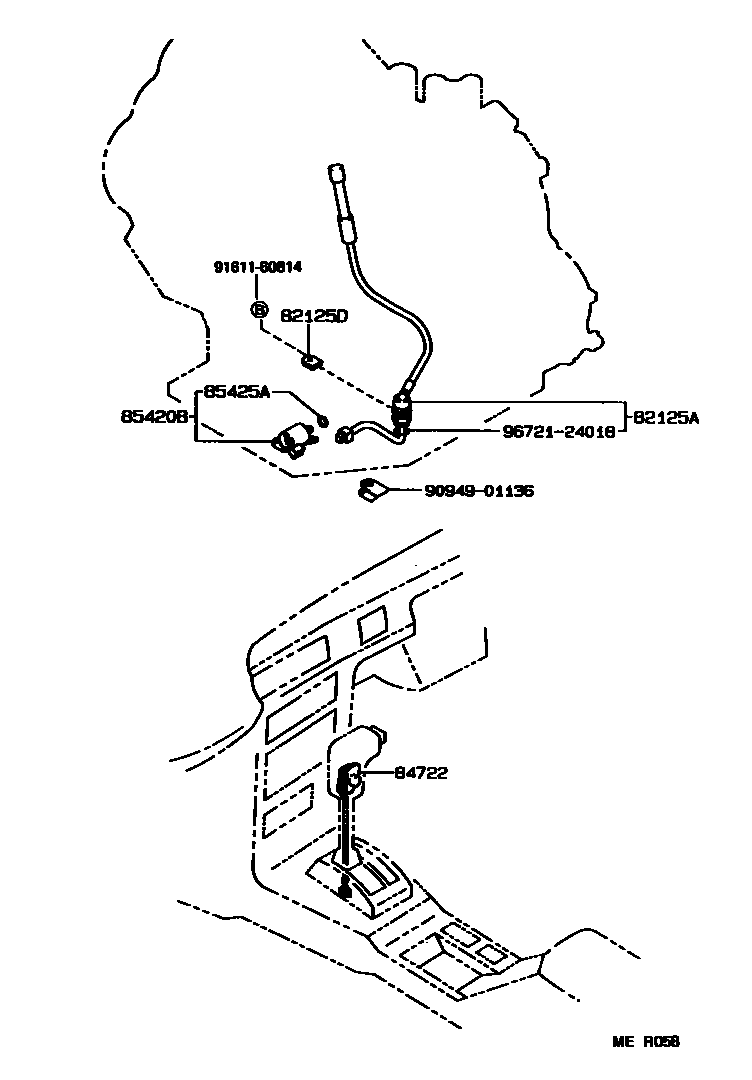

Toyota COROLLA 超速档和电子控制变速器 — Figure 8410
Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125A | Transmission wiring harness | 82125-20100 |
| 82125D | Transmission harness locking plate | 33485-30020 |
| 85420B | Transmission solenoid valve assembly | 85420-10011 |
| 85425A | O-ring (for overspeed solenoid valve) | 90301-06004 |
