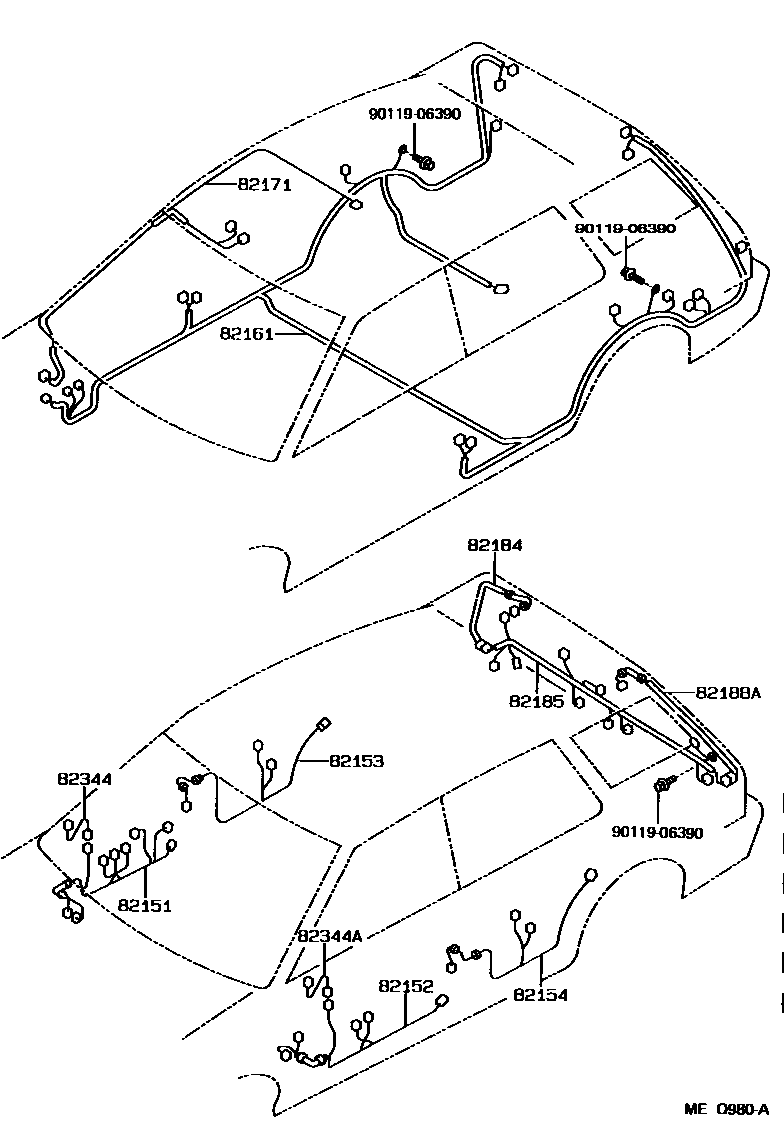

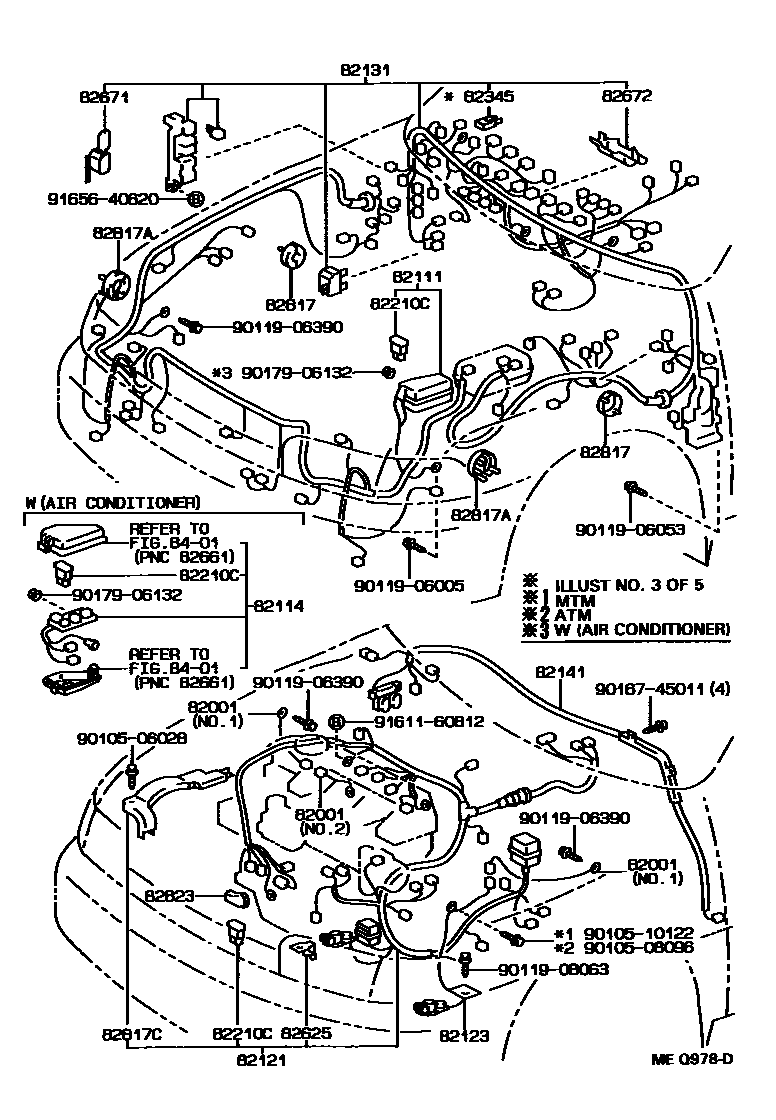

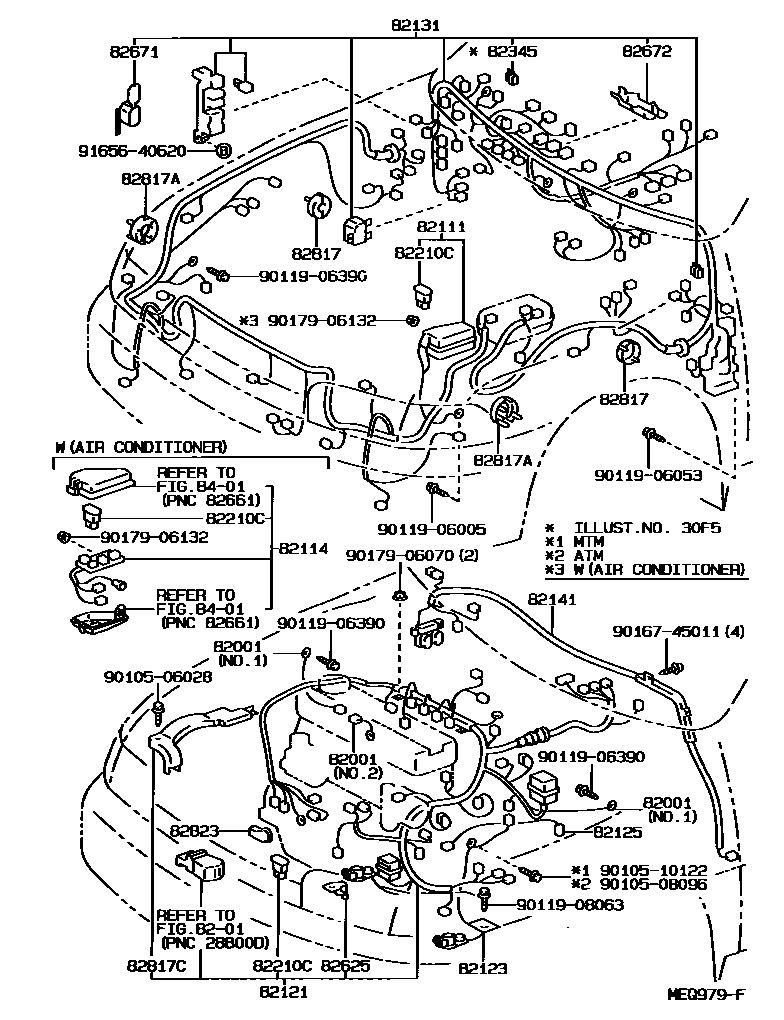

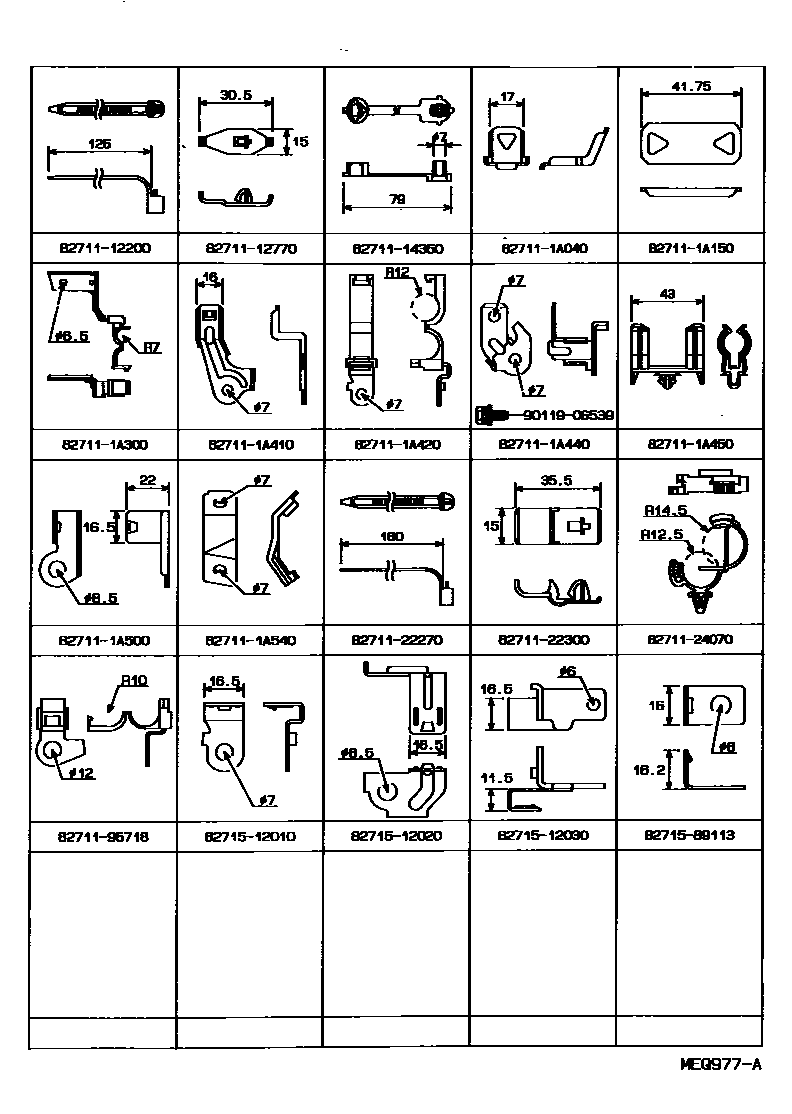

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07206 · 90980-07299 |
| 82111 | Engine room main wiring harness | 82111-13240 · 82111-13250 · 82111-13270 · 82111-1A830 · 82111-1A841 |
| 82114 | Engine room wiring harness No. 4 | 82114-12040 |
| 82121 | Engine wiring harness | 82121-1E790 · 82121-1E850 · 82121-1E880 · 82121-1E890 |
| 82123 | Engine No. 3 wiring harness | 82123-12160 · 82123-12170 |
| 82125 | Transmission wiring harness | 82125-12340 |
| 82131 | Front panel wiring harness | 82131-13700 · 82131-13710 · 82131-13720 |
| 82141 | Dashboard wiring harness | 82141-12070 · 82141-12080 |
| 82151 | Right front door wiring harness | 82151-12260 · 82151-12600 · 82151-12650 · 82151-12740 · 82151-12750 · 82151-12760 |
| 82152 | Left front door wiring harness | 82152-12400 · 82152-12510 · 82152-12650 · 82152-12660 · 82152-12700 · 82152-12710 · 82152-12760 |
| 82153 | Rear door wiring harness No. 1 | 82153-12140 · 82153-12150 |
| 82154 | Rear door wiring harness No. 2 | 82154-12140 · 82154-12150 |
| 82161 | floor wiring harness | 82161-13670 · 82161-1H260 · 82161-1H280 · 82161-1H320 · 82161-1H350 · 82161-1H360 |
| 82171 | Roof No. 1 wiring harness | 82171-12400 · 82171-12410 · 82171-12420 · 82171-12430 · 82171-13060 · 82171-13070 · 82171-13080 · 82171-13090 |
| 82184 | Rear door No. 1 wiring harness | 82184-12280 |
| 82185 | Rear door wiring harness No. 2 | 82185-13130 · 82185-13160 · 82185-13180 · 82185-13190 |
| 82188A | Rear door No. 3 wiring harness | 82188-12010 · 82188-12020 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08223 · 90982-08246 |
| 82344 | Right rearview mirror wiring harness | 82344-12010 |
| 82344A | Left rearview mirror wiring harness | 82344-12010 |
| 82345 | diode | 82345-12030 · 82345-22051 |
| 82625 | Fuse terminal | 82625-12020 · 82625-12060 |
| 82671 | junction box | 82671-12070 |
| 82672 | Junction box cover | 82672-12081 · 82672-12111 |
| 82817 | No. 1 wire harness protection device | 82817-14350 |
| 82817A | No. 2 wire harness protection device | 82817-32010 |
| 82817C | No. 4 wire harness protection device | 82817-12700 |
| 82823 | No. 1 terminal cover | 82823-22050 |

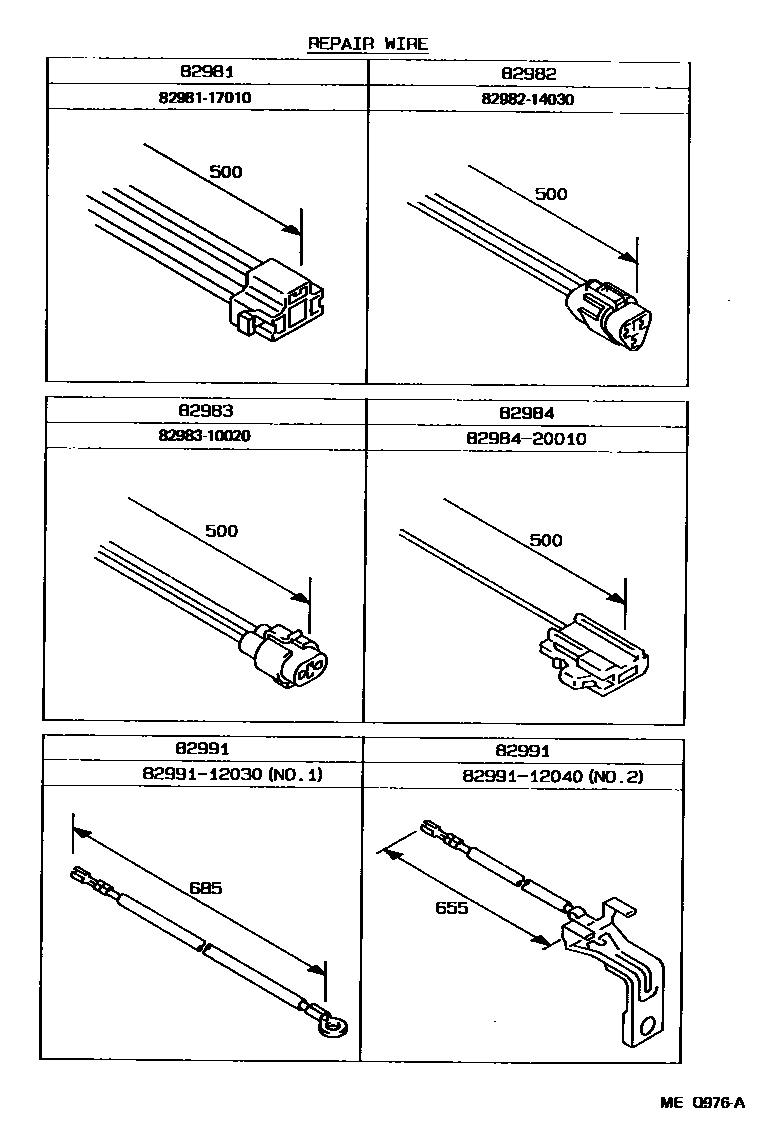

| 82981 | Headlight repair line | 82981-17010 |
| 82982 | Width light repair line | 82982-14030 |
| 82983 | Front turn signal lamp repair line | 82983-10020 |
| 82984 | Speaker repair line | 82984-20010 |
| 82991 | Fuse repair line | 82991-12030 · 82991-12040 |
