Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

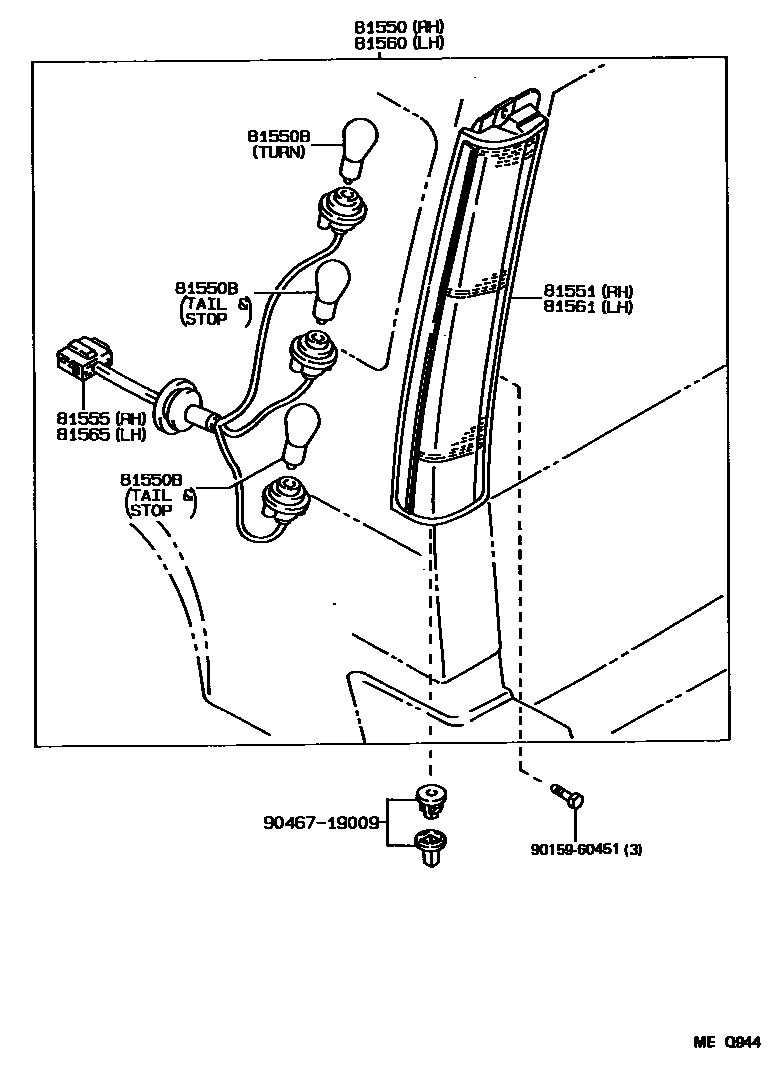

| 81550 | Right rear combination light assembly | 81550-1A451 · 81550-1A470 · 81550-1A471 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-1A451 · 81551-1A470 · 81551-1A471 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A450 · 81555-1A470 |
| 81560 | Left rear combination light assembly | 81560-1A421 · 81560-1A440 · 81560-1A441 |
| 81561 | Left rear combination lamp shade | 81561-1A421 · 81561-1A440 · 81561-1A441 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A450 · 81555-1A470 |

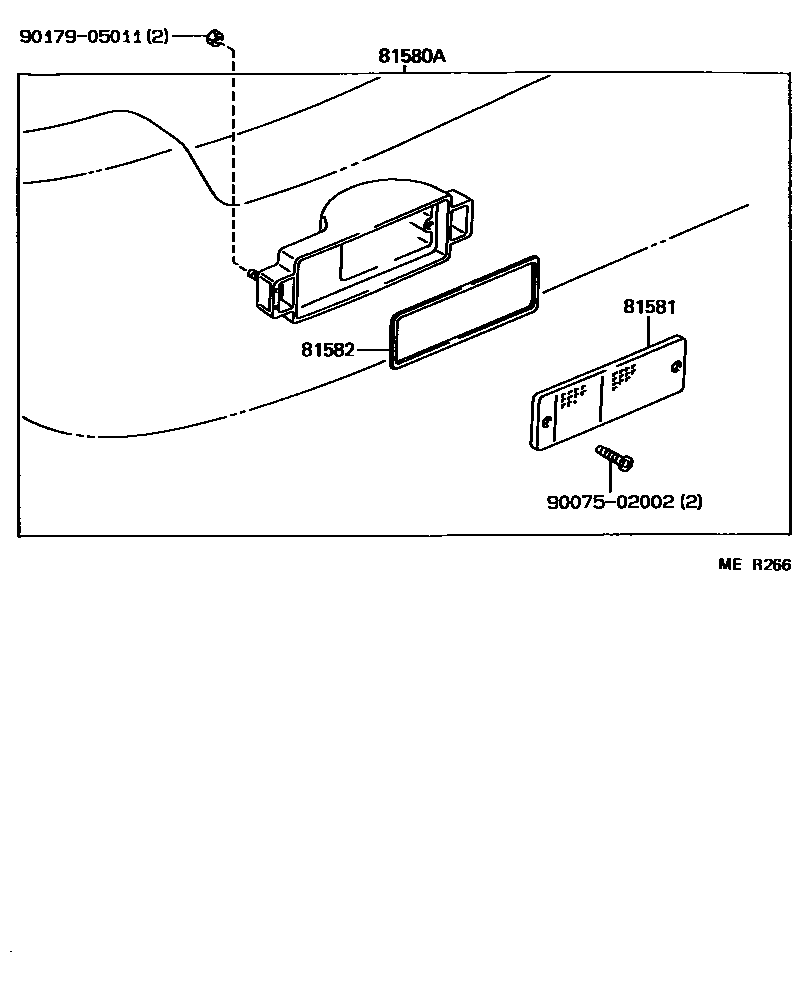

| 81580A | Rear light assembly | 81210-12060 · 81220-12060 |
| 81581 | rear light shade | 81211-12060 · 81221-12060 |
| 81582 | rear light gasket | 81212-12070 |
