Toyota COROLLA accelerator pedal connecting rod — Figure 7801

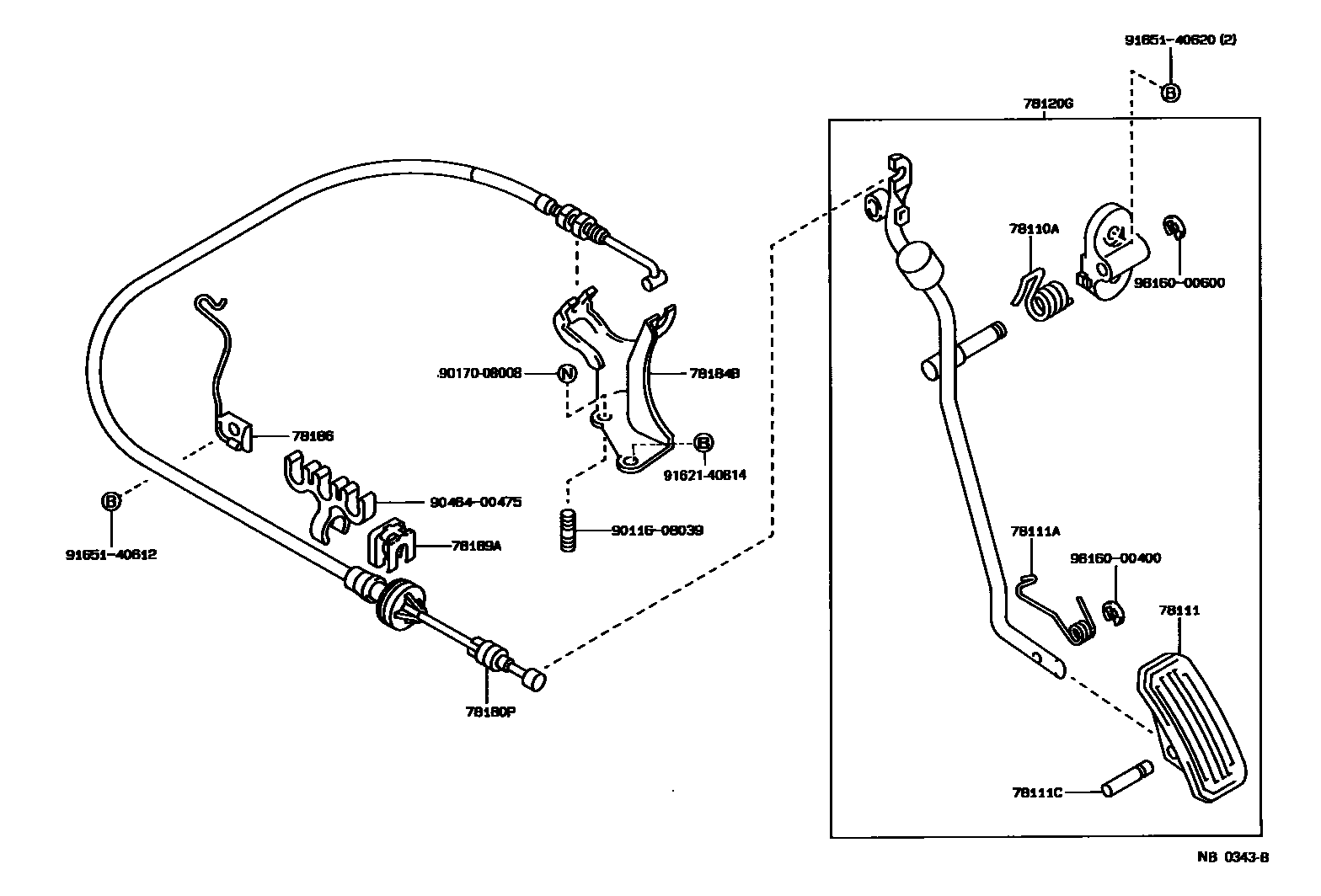

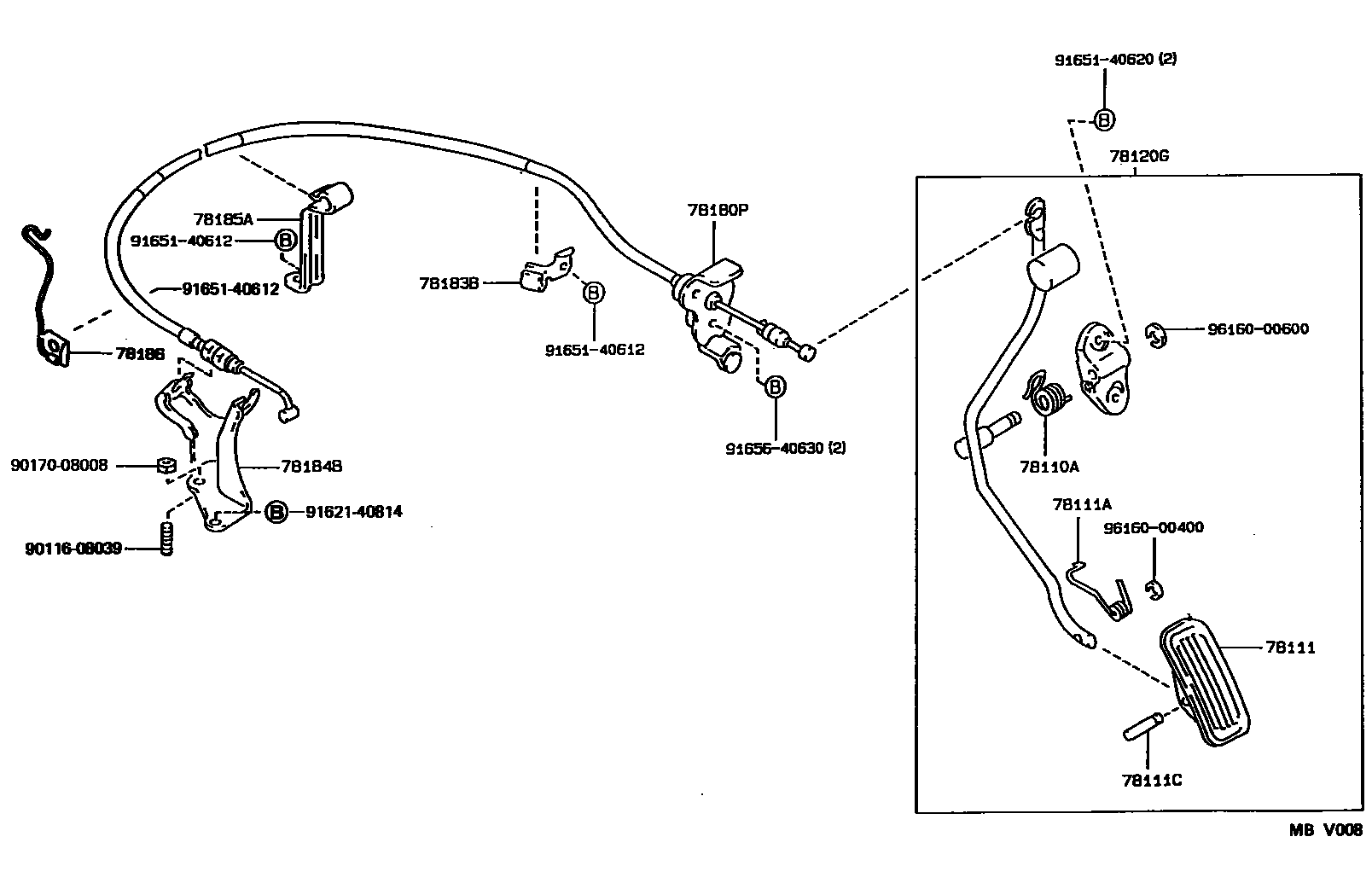

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-12080 · 78120-12120 |
| 78180P | Accelerator pedal control cable assembly | 78180-12781 · 78180-1A010 · 78180-1A081 |
| 78183B | Accelerator pedal control cable clip | 78183-12100 |
| 78184B | Throttle pedal control cable bracket | 78184-12230 |
| 78185A | No. 2 accelerator pedal control cable clip | 78183-12140 · 78183-12170 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12220 · 78186-12230 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12030 |
